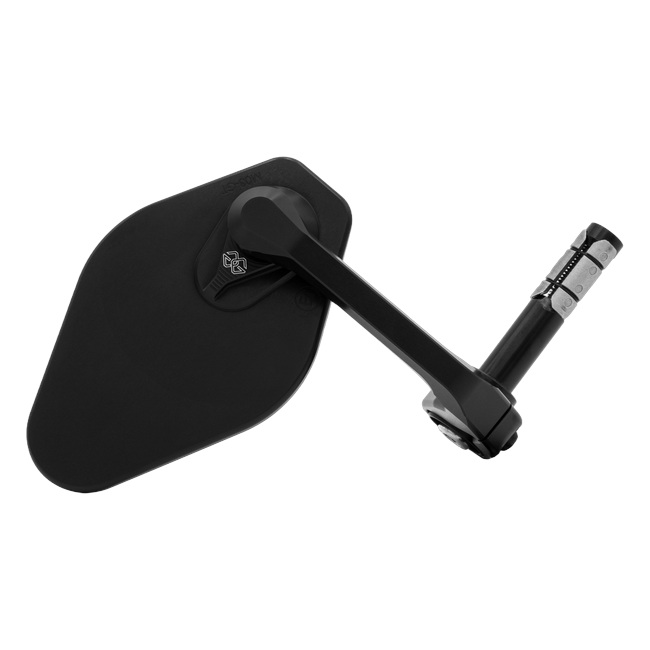

Gilles STRATOS bar-end mirror for MV Agusta Brutale 675⟲ 360° — drag me
02 · Data & docs

The facts.

Technical data
BrandGilles Tooling
SeriesSTRATOS
Part numberM03-01-BD
FunctionHandlebar-end rear-view mirror, replaces the original
MaterialCNC-machined aluminium, 190 g
GlassShaped, 132 x 84 mm, 6 mm
AdjustmentStepless, 20 degrees tilt and 180 degrees rotation
MountingExpanding clamp inside the handlebar, inner bore 13-18 mm
FitmentMV Agusta Brutale 675 (2012–2016)
Road approvalEuropean type approval E1*81R00/02*0143 (UN R81)
DescriptionThe whole story▼

A motorcycle drawn around a narrow waist gets its width from the handlebar. Everything below the tank is tucked in, and the widest points on the machine are the two ends of the bar and whatever is fitted to them.

Key Features

  • Shaped glass, 132 x 84 mm, 6 mm thick
  • Stepless adjustment: 20 degrees of tilt, 180 degrees of rotation
  • Universal clamp for inner bar bores from 13 to 18 mm
  • CNC-machined aluminium, matt black, 190 g
  • Mounts in the end of the handlebar, not on a stalk
  • European type approval E1*81R00/02*0143

The Bar Sets the Width

That makes a bar-end mirror part of the silhouette rather than an attachment to it. On a bike this carefully styled, a component that sits at the extreme of the shape is worth having machined rather than moulded.

Compact Where It Counts

The arm rises from the bar end and brings the glass up rather than reaching out sideways, which keeps the added width to the housing itself instead of an arm's length of it.

One Part Number

Symmetrical, so the same item fits either side.

Road Approval

Approved for road use in Europe under E1*81R00/02*0143, issued against UN Regulation 81 for rear-view mirrors. Nothing needs entering in the vehicle documents.

Scope of Delivery

Delivered as a single mirror with its clamp. The same item fits both bar ends, so nothing has to be specified beyond how many you want.

Specifications

  • Brand: Gilles Tooling
  • Series: STRATOS
  • Part number: M03-01-BD
  • Function: Handlebar-end rear-view mirror, replaces the original
  • Material: CNC-machined aluminium, 190 g
  • Glass: Shaped, 132 x 84 mm, 6 mm
  • Adjustment: Stepless, 20 degrees tilt and 180 degrees rotation
  • Mounting: Expanding clamp inside the handlebar, inner bore 13-18 mm
  • Fitment: MV Agusta Brutale 675 (2012–2016)
  • Road approval: European type approval E1*81R00/02*0143 (UN R81)
What's includedEverything in the box▼
  • 1x Gilles STRATOS bar-end mirror with clamp, matt black
FitmentWhich bikes this fits▼
  • MV Agusta Brutale 675 (2012–2016)
