The facts.
| Brand | Gilles Tooling |
|---|---|
| Series | 1DGT |
| Part number | 1DGT-01 |
| Type | Handlebar riser set |
| Material | EN AW 7075-T6, upper clamp 6082-T6 |
| Handlebar | 28.6 mm tapered handlebars, 22 mm adapters optional |
| Adjustment | 20 mm above the original position |
| Top yoke | Yokes with a fixed handlebar mount |
| Fitment | Honda CB500F (2013–2015) |
| Road approval | ABE No. KBA 91473 (inspection under §19(3) required) |
DescriptionThe whole story▼
The first CB500F of 2013 is a plain, honest motorcycle with a bar set for an average rider. Taller ones lean forward slightly all day without noticing. Two centimetres of extra height corrects that with one machined part and the original fasteners, and it can be undone in ten minutes.
Key Features

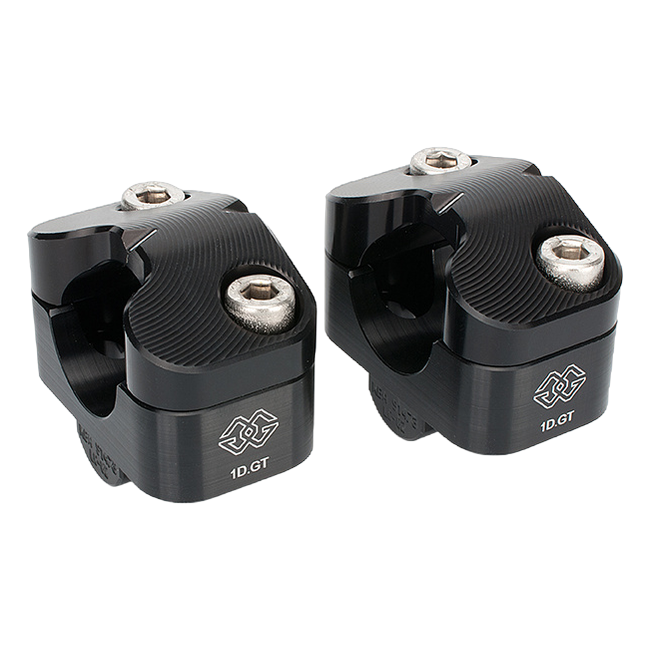

- CNC-machined from EN AW 7075-T6, upper clamp 6082-T6
- Height: 20 mm above the original position
- For 28.6 mm tapered handlebars, 22 mm adapters optional
- Fits yokes with a fixed handlebar mount
- Road legal under ABE No. KBA 91473, inspection under §19(3) required
Type PC45
The approval lists the CB 500 F and X from 2013 for the 1DGT-01.
Fixed handlebar mount
The 1DGT is made for yokes where the bar mount is part of the casting, which is what Honda uses here.
Road Approval
ABE No. KBA 91473 applies to the Honda CB500F. The document notes: if the original 22 mm handlebar is kept, Gilles clamp half-shells are required; the handlebar may be a Gilles GTO-L, a WRP AM2200 or the original 28 mm bar. Note the condition attached to it: the change has to be presented for an acceptance inspection under §19(3) StVZO. The risers are marked GG, 1DGT and with the KBA number.
Scope of Delivery
Supplied: the Gilles 1DGT risers made for this model. The ABE document downloads from this page; it belongs in the vehicle papers together with the inspection confirmation.
Fitting
Fitting needs no drilling: the risers use the standard points. After the first setting, ride a short distance and check the position again; the clamps can be reset in minutes if you want the bar a little further forward or back.
Specifications
- Brand: Gilles Tooling
- Series: 1DGT
- Part number: 1DGT-01
- Type: Handlebar riser set
- Material: EN AW 7075-T6, upper clamp 6082-T6
- Handlebar: 28.6 mm tapered handlebars, 22 mm adapters optional
- Adjustment: 20 mm above the original position
- Top yoke: Yokes with a fixed handlebar mount
- Fitment: Honda CB500F (2013–2015)
- Road approval: ABE No. KBA 91473 (inspection under §19(3) required)
What's includedEverything in the box▼
- 1x Gilles 1DGT handlebar riser set (1DGT-01)
DownloadsCertificate▼
Carry a printed copy of the ABE certificate when riding on German roads.
FitmentWhich bikes this fits▼
- Honda CB500F (2013–2015)
