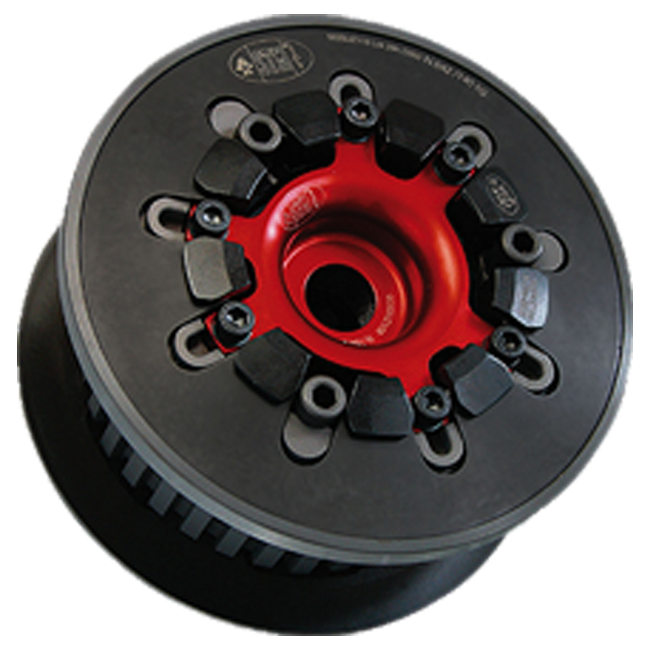

STM Slipper Clutch Suzuki GSX-R 600/750 (2006-2014) FSU-S060

Engineered from the ground up for high-demand track and sport use, the STM slipper clutch for the Suzuki GSX-R 600/750 (2006-2014) sets the benchmark for precision clutch technology. Constructed to exacting tolerances with STM's patented ball-ramp mechanism, this unit delivers measurable gains in control, safety, and outright performance — all while shedding approximately 0.7–0.8 kg of rotating mass from the drivetrain.

Key Features

• Prevents engine over-rev under hard downshifting, maintaining a smooth, composed ride at all times
• Minimises rear wheel hop and chatter, translating directly into superior traction and stability through braking zones
• Significantly reduces the trigger impulse of a highside, providing a meaningful safety margin at high speeds
• Enables controlled rear wheel slides for confident, predictable cornering behaviour
• Improved clutch closing phase management in corners prevents the front end from tucking under load
• Diaphragm spring design eliminates pressure plate wobble, delivering a cleaner, more progressive lever release feel
• Weight saving of approximately 0.7–0.8 kg through reduction of rotating mass, directly improving throttle response and acceleration
• Patented ball-ramp technology governs the anti-hopping function with precision, maintaining stability even at peak engine speeds

Build Quality and Materials

STM has built its reputation on clutch components manufactured to race-grade standards, and the FSU-S060 is no exception. Every element of this slipper clutch is produced with tight tolerances that ensure consistent, repeatable operation across countless track sessions or spirited road miles. The patented ball-ramp system is the centrepiece: it modulates the anti-hopping effect progressively rather than abruptly, so the rider always feels in command. The diaphragm spring arrangement adds a further layer of refinement, removing the inconsistency of a traditional coil spring stack and giving the lever a feedback quality that experienced riders immediately notice.

Performance on Track and Road

For GSX-R 600 and GSX-R 750 riders pushing the limits — whether in a club-level race, a track day, or on a fast mountain road — the consequences of rear wheel lock under aggressive downshifting are well understood. The STM FSU-S060 addresses this directly at the source by automatically modulating clutch slip as engine braking torque rises beyond what the rear tyre can absorb. The result is a rear end that remains planted and steerable, corner entry that can be more aggressive, and a meaningful reduction in highside risk. The simultaneous reduction of approximately 0.7–0.8 kg of rotating inertia sharpens throttle response and makes the GSX-R feel more alive through direction changes.

Fitment and Compatibility

The STM FSU-S060 is a direct-fit slipper clutch developed specifically for the following models:

• Suzuki GSX-R 600 (2006–2014)
• Suzuki GSX-R 750 (2006–2014)

Specifications

• Brand: STM
• Part number: FSU-S060
• Type: Slipper clutch (anti-hopping clutch)
• Anti-hopping mechanism: Patented ball-ramp system
• Spring type: Diaphragm spring
• Weight saving: approximately 0.7–0.8 kg (reduction of rotating mass)
• Fitment: Suzuki GSX-R 600 / GSX-R 750 (2006–2014)
