LighTech Bobbins M8 Swingarm Spools – Triumph Street Triple 765 S / R / RS (2017–2026) SCV004

Designed specifically for the Triumph Street Triple 765, the LighTech SCV004 swingarm spools make every maintenance session smoother and more secure — whether you are doing a quick chain clean in your garage, swapping tyres before a track day, or loading the bike for transport. CNC-machined from aircraft-grade aluminium and anodised in a range of sharp colours, these M8 bobbins bolt directly to the swingarm without any modification, giving you a solid, rattle-free lifting point every time you reach for the paddock stand.

Key Features

• Direct swingarm fitment for the Triumph Street Triple 765 S, R and RS (2017–2026) — no drilling, no adapters required
• M8 thread specification machined to tight tolerances for secure, wobble-free engagement every lift
• CNC-machined aluminium construction keeps weight minimal while delivering the rigidity needed for safe, repeated use
• Compatible with all standard V-head paddock stands, roller stands and race stands with a V-slot
• Supplied as a pair with mounting bolts — everything you need is in the box
• Available in six anodised finishes: black, red, silver, gold, blue and green to complement your Street Triple's livery

Purpose-Built for the Street Triple 765

LighTech engineered the SCV004 from the ground up for the Street Triple 765 platform. The thread pitch, body diameter and shoulder geometry are all matched to the swingarm's existing M8 threaded bosses, so installation takes minutes with basic hand tools. Once fitted, the spools sit flush and secure, protecting the swingarm itself from scratches and dents that bare-metal stand contact causes over time.

The anodised finish is not just cosmetic — it forms a hard, corrosion-resistant layer that stands up to chain lube, brake fluid splashes and road grime through years of regular use. Each colour variant carries its own LighTech part number, making re-ordering or colour-matching to other LighTech accessories straightforward.

Track Day and Workshop Ready

Whether you are maintaining chain tension and lubrication at home, conducting a full tyre swap before a circuit session, or handing the bike over to a race mechanic in the paddock, having a dedicated spool mounting point is the difference between a confident lift and an anxious one. The SCV004 spools grip a V-head stand cleanly, with no lateral movement that could let the bike slip during a critical moment.

Note: these spools are intended for motorcycles with M8 threaded mounting points in the swingarm. They are not suitable for single-sided swingarms or models without the corresponding mounting bosses.

Fitment & Compatibility

The LighTech SCV004 swingarm spools are compatible with the following models:

• Triumph Street Triple 765 S (2017–2026)
• Triumph Street Triple 765 R (2017–2026)
• Triumph Street Triple 765 RS (2017–2026)

Colour Variants and Part Numbers

• Black – SCV004NER

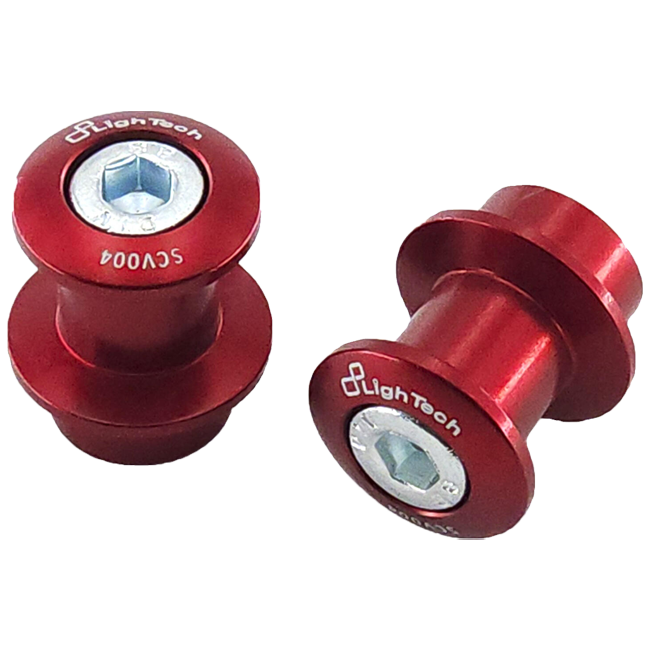

• Red – SCV004ROS

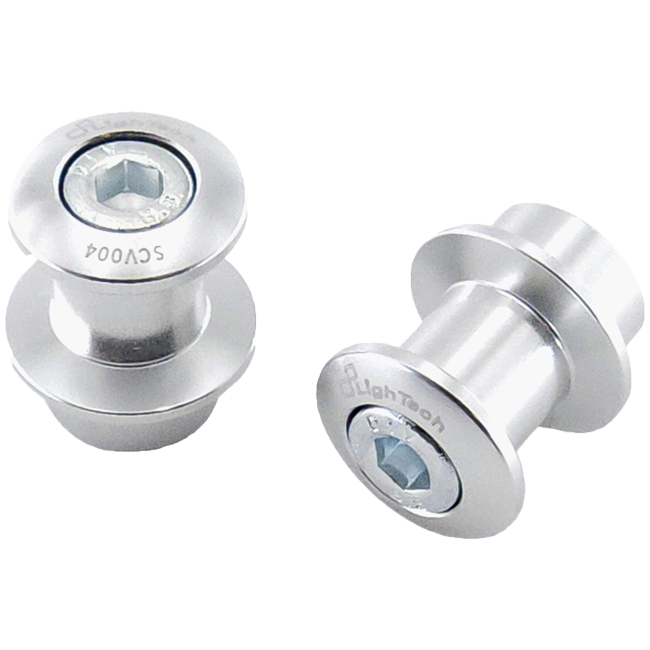

• Silver – SCV004SIL

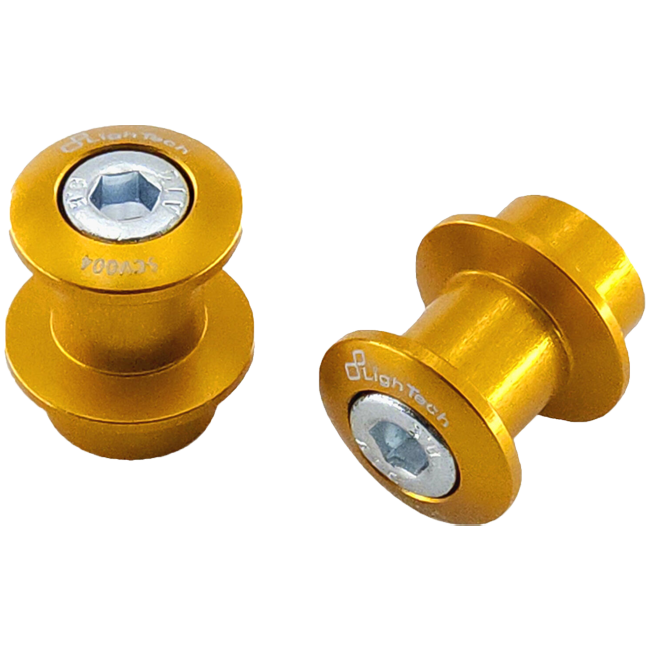

• Gold – SCV004ORO

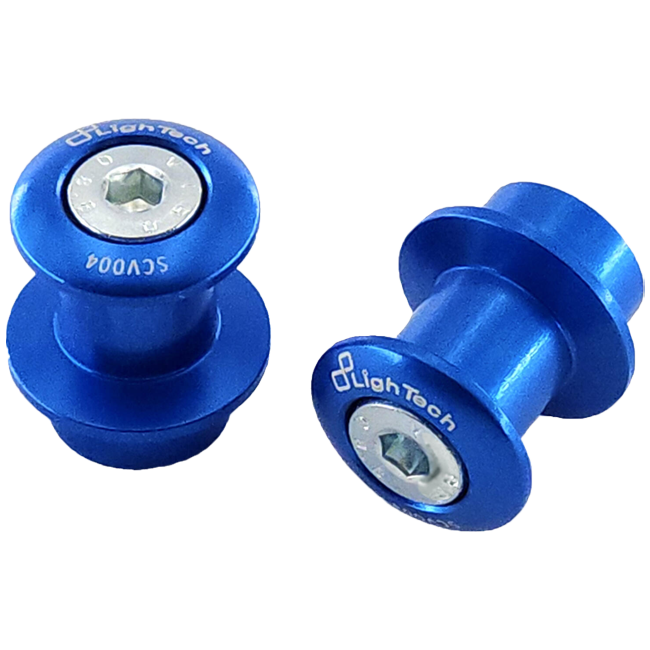

• Blue (Cobalt) – SCV004COB

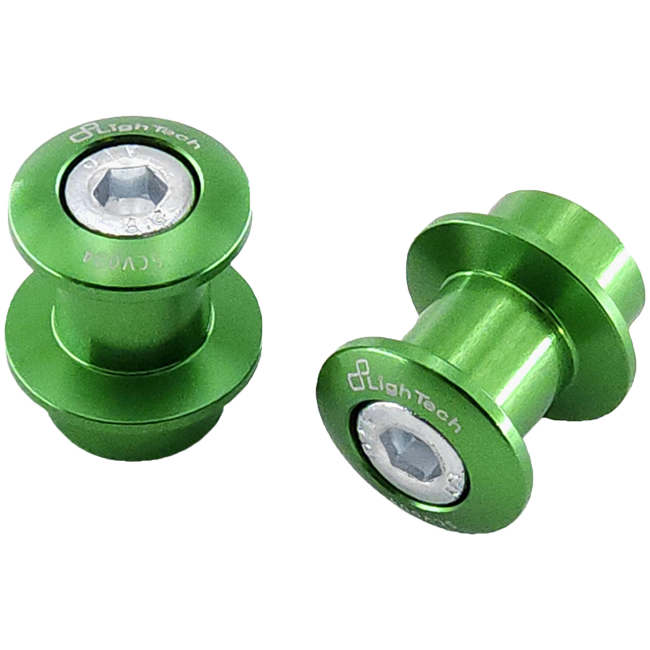

• Green – SCV004VER

Specifications

• Brand: LighTech
• Part number family: SCV004
• Thread type: M8
• Material: CNC-machined aluminium, anodised
• Compatible stand types: V-head paddock stands, roller stands, racing stands
• Fitment: Triumph Street Triple 765 S / R / RS, 2017–2026
• Quantity: 1 pair (2 spools) including mounting bolts
