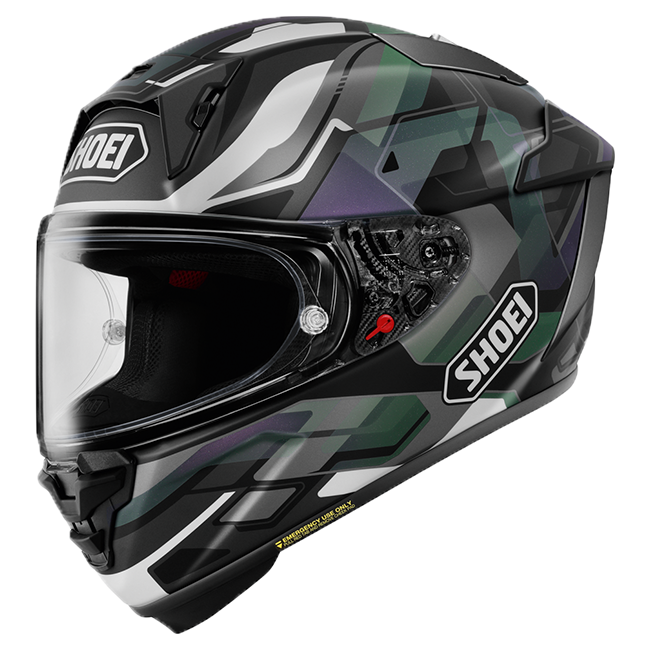

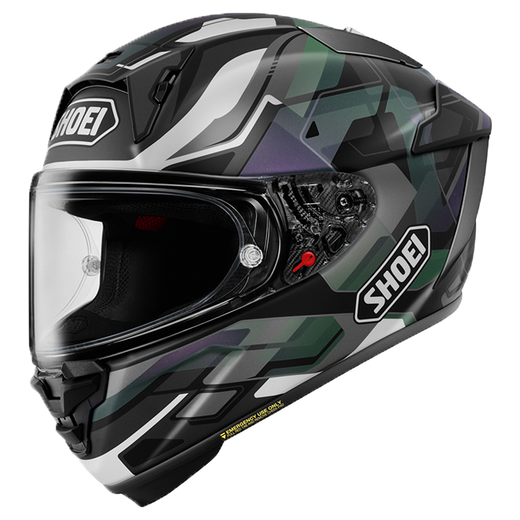

Shoei X-SPR PRO Helmet Valion TC-5 Dark Green / Grey / Purple

Certified to both ECE 22.06 and the exacting FIM FRHPhe-01 homologation standard, the Shoei X-SPR PRO in the Valion TC-5 colourway meets every safety benchmark demanded by professional circuit racing — while delivering the aerodynamic stability and ventilation performance that MotoGP-level speeds require. The matte dark green, grey and purple finish gives this uncompromising race helmet a distinctly modern, track-ready identity.

Key Features

• Dual homologation: ECE 22.06 road approval and FIM FRHPhe-01 racing certification for the highest safety assurance available
• AIM+ (Advanced Integrated Matrix Plus) shell constructed from six layers of high-performance fibres — glass, organic and high-tensile specialist fibres — delivering maximum impact absorption at minimal weight
• Multi-density EPS core system efficiently disperses impact energy across the full shell surface
• Double D-ring closure with EQRS (Emergency Quick Release System) for rapid cheek-pad removal by first responders
• 13-opening ventilation system with 7 intakes and 6 exhausts, including doubled airflow through the cheek pads versus the previous generation
• CWR-F2R visor with 5 mm additional vertical field of view, dual locking mechanism, tear-off compatibility and Pinlock EVO insert included as standard

Safety Architecture

The AIM+ outer shell is the foundation of the X-SPR PRO's safety case. Six distinct layers of dissimilar high-performance fibres — glass, organic and high-tensile specialist materials — are integrated at the construction stage to create a shell that manages impact loads with exceptional efficiency. The multi-piece EPS liner works in concert with the outer shell, absorbing and redistributing energy rather than concentrating it.

The Double D-ring retention system remains the benchmark closure for competitive motorsport. Paired with the EQRS, which allows medical personnel to remove the cheek pads rapidly without disturbing the helmet or the rider's head and neck, the X-SPR PRO is designed to protect at every stage of an incident — not merely the initial impact.

Fit and Comfort

Four outer shell sizes ensure the proportions remain correct across the full XS-to-XXL size run rather than cramming small head circumferences into an oversized shell. The interior uses a modular head pad with integrated pockets, insertable fit pads for individual circumference adjustment and new 3D cheek pads with 16% greater surface contact area. Quick-drying, skin-friendly inner materials keep conditions tolerable during extended track sessions or summer touring. Even at extreme speeds the helmet remains stable, composed and quiet — a product of the aerodynamic development described below.

Ventilation

The fully redesigned ventilation circuit runs seven fresh-air intakes and six exhaust outlets through a deeply branched internal ducting network. Airflow through the cheek-pad area has been doubled compared to the previous generation, directing cooling air precisely where heat and discomfort accumulate during sustained hard riding. The system is calibrated for high ambient temperatures and endurance use, maintaining rider focus across long race distances and track days alike.

Hydration System Compatibility

The X-SPR PRO is prepared for an in-helmet hydration system and is compatible with Shoei accessories and Camelbak-style valves — a practical feature for endurance races, hot-weather track days and long-distance road riding where stopping to drink is not always possible.

Aerodynamics

The external form of the X-SPR PRO incorporates more than 150 individual design refinements developed in the wind tunnel. A newly engineered rear stabiliser reduces lift at high speed, lateral fins improve directional stability in crosswinds and during corner entry, and a concave crown section optimises airflow attachment over the helmet surface. The integrated spoiler maintains balance at the extreme velocities for which this helmet is homologated. The result is a helmet that tracks straight and true at any speed rather than becoming a sail.

CWR-F2R Visor

The new CWR-F2R visor increases vertical field of view by 5 mm relative to its predecessor — meaningful additional visibility when tucked behind a screen at maximum lean angle. The dual locking mechanism prevents unintended cracking at speed. Tear-off posts are positioned outside the primary field of view so the film stack does not obstruct vision. A Pinlock EVO anti-fog insert is supplied as standard, and the visor is fully compatible with Shoei's range of tinted and photochromic options.

Fitment and Compatibility

The Shoei X-SPR PRO is a universal full-face racing helmet suitable for road and track use across all motorcycle types. It carries FIM FRHPhe-01 homologation, making it eligible for use in FIM-sanctioned racing events. Bluetooth and intercom integration is conditionally compatible with universal aftermarket systems; there is no dedicated Shoei SRL in-helmet integration specified for the X-SPR PRO. A spectacle channel is present for glasses wearers, though the close race fit should be assessed in person before purchase.

Size Guide

For race use, the helmet should fit firmly and without any movement. If you are between sizes, size down and allow the liner to bed in.

Specifications

• Model: X-SPR PRO
• SKU: 11.18.110
• Colour / Finish: Valion TC-5 — dark green / grey / purple, matte
• Homologation: ECE 22.06 / FIM FRHPhe-01
• Helmet type: premium racing full-face — road and track
• Weight: approx. 1,450 g (varies by size and colour variant)
• Ventilation: 13 openings — 7 intakes / 6 exhausts, including enhanced cheek-pad ventilation
• Shell: AIM+ (Advanced Integrated Matrix Plus)
• Bluetooth / intercom: conditionally compatible with universal systems; no dedicated Shoei SRL integration specified
• Glasses wearers: conditionally suitable — spectacle channel present; close race fit applies
