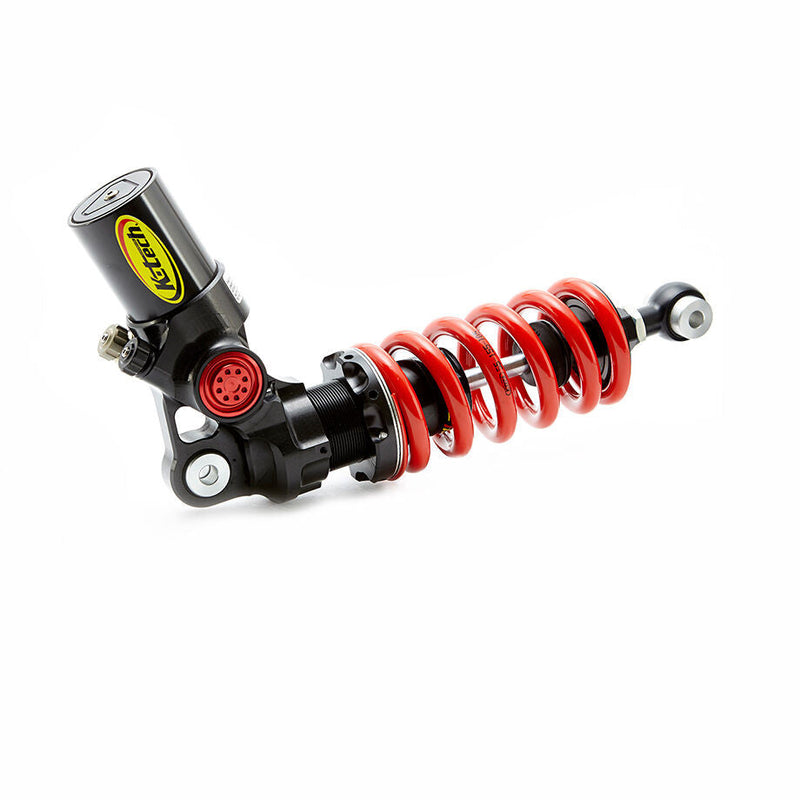

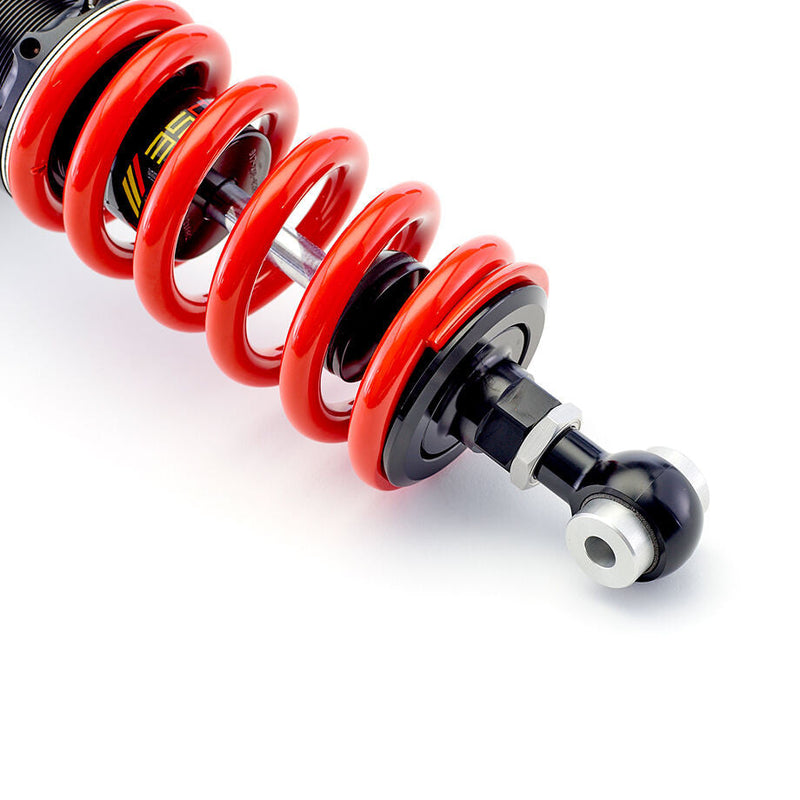

K-Tech DDS Lite Shock Absorber Honda CBR 1000 RR (2008–2019) 245-011-130-020

Drawn from the same component lineage as the DDS Pro, the K-Tech DDS Lite shock absorber delivers genuine race-derived suspension performance on the Honda CBR 1000 RR across every model year from 2008 to 2019. Whether you ride long weekend routes or push hard on track days, the DDS Lite's four-way adjustability lets you dial in a ride that stays composed and comfortable from the first mile to the last.

Key Features

• Four-way adjustability covering compression, rebound, preload and ride height for a truly personalised chassis setup
• 32 clicks of compression damping adjustment for precise control over how the shock absorbs bumps and braking forces
• 32 clicks of rebound damping adjustment to tune how quickly the suspension recovers and maintains tyre contact
• Manual spring preload adjustment for accurate sag setting to suit rider weight and riding style
• Length adjustment for fine-tuning chassis geometry and steering feel without additional hardware
• CNC-machined components throughout for exceptional rigidity, dimensional accuracy and long service life
• DDS technology with integrated potentiometer mounting points, enabling a future upgrade to full Pro specification at any time
• Wide range of spring rates available separately to match every rider and load combination

Built on Pro Foundations

The DDS Lite shares its core architecture with the DDS Pro unit. The only deliberate omissions are the hydraulic spring preload adjuster and the bypass valve — features rarely needed for road and club-level track use. Everything else — the damper cartridge, the CNC-machined body, the nitrogen charge and the potentiometer mounts — is identical. That shared platform means the unit can be upgraded to Pro specification by a K-Tech Service Centre whenever your riding demands it, protecting your investment for the long term.

Damper Construction

The 35 mm diameter shock body is machined from aluminium alloy and houses a 12 mm diameter shaft running a 62 mm stroke. Nitrogen pressurisation at 105 N (5.00 bar) keeps the damper oil aerated-free under sustained hard use, maintaining consistent damping forces lap after lap or mile after mile. The 55-155 spring series covers a broad rate range, and the recommended baseline settings — 8 compression clicks, 8 rebound clicks and 12 mm of preload — give most riders a strong starting point from which to refine.

Fitment and Compatibility

This shock absorber is a direct, bolt-in replacement for the Honda CBR 1000 RR across all variants produced between 2008 and 2019. The upper eye mount measures 26 mm wide with a 10 mm bolt diameter; the lower eye mount measures 39 mm wide with a 10 mm bolt diameter. Both dimensions are factory-matched so no modification or adapter hardware is required.

Installation requires specialist tools and torque procedures. K-Tech recommends fitting through an authorised K-Tech Service Centre to ensure correct setup and maximum safety.

Specifications
