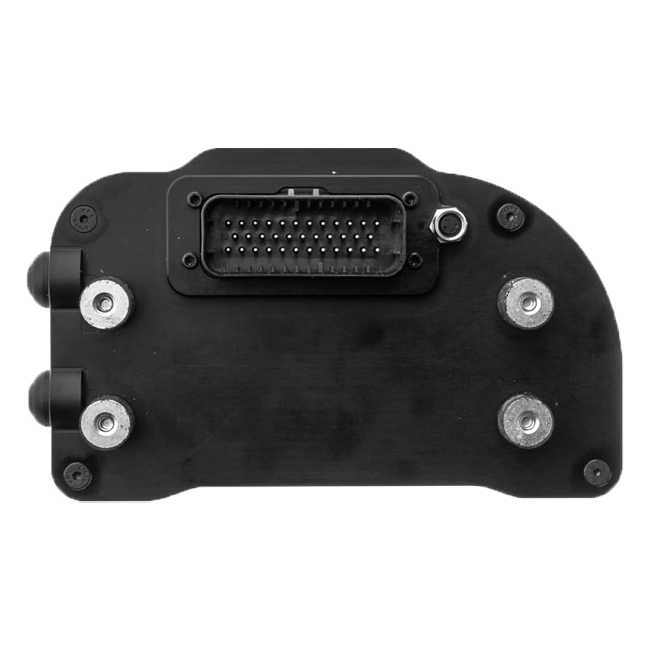

I2M Chrome Pro 2 Dashboard for Yamaha YZF-R6 RJ27 (2017–2026)

For riders who want to extract every last tenth from their Yamaha YZF-R6 RJ27, the I2M Chrome Pro 2 delivers an all-day, all-session cockpit experience that goes far beyond a standard instrument cluster. From the first warm-up lap to the final cool-down, its large 5-inch colour display and comprehensive data suite keep everything you need clear, accessible and immediately actionable.

Key Features

• 5-inch graphic colour display at 800 x 480 resolution — outstanding legibility in direct sunlight and low light alike

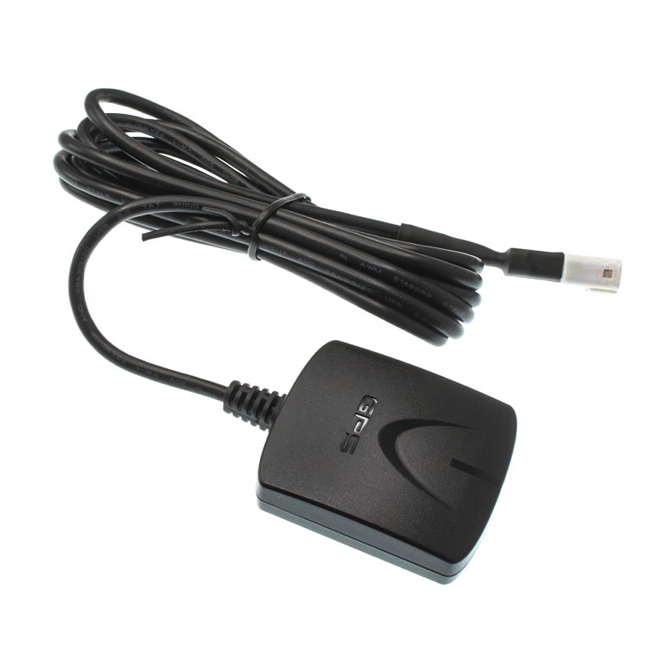

• 10 Hz GPS for precise trajectory mapping and speed measurement across all four configurable sectors per circuit
• Integrated TPMS receiver monitors tyre pressure and rim temperature in real time — two TPMS sensors with adapters included
• 128 additional CAN-Bus acquisition channels at up to 500 Hz per channel for the deepest telemetry data available in the Chrome range
• Integrated lambda controller ships with a BOSCH LSU 4.9 lambda sensor for live air-fuel ratio analysis
• 11 freely configurable high-brightness RGB LEDs deliver at-a-glance shift and alarm warnings without taking your eyes off the circuit
• WiFi and Bluetooth BLE connectivity for wireless data transfer and device pairing

A True Racing Dashboard, Not Just a Replacement Speedo

The I2M Chrome Pro 2 was designed specifically for serious track and trackday use on the Yamaha YZF-R6 RJ27. Where the original instrument cluster tells you speed and gear position, the Chrome Pro 2 tells you lap times, split times across up to four sectors, session histories, tyre temperatures, air-fuel ratios and the precise GPS trajectory you followed through every corner. The 16 GB internal memory stores up to 500 laps per circuit, and 20 circuits come pre-installed so you can hit the track without any configuration overhead.

On a motorcycle like the R6 RJ27 — where corner speed, rhythm and precision define performance — having accurate, structured data turns vague impressions into repeatable improvements. The Chrome Pro 2 makes that analysis possible in a single, tightly integrated unit.

Chrome Pro 2 vs Chrome Lite — How They Differ

The Chrome Lite is a strong entry point for GPS lap timing and data logging. The Chrome Pro 2 is the system for riders who require professional-grade telemetry depth. Compared to the Chrome Lite, the Pro 2 adds:

• Significantly more CAN-Bus acquisition channels
• Higher sampling rates for finer-grained analysis
• WiFi connectivity for wireless session download
• Bluetooth BLE for additional device integration
• Integrated TPMS with live tyre pressure and temperature monitoring
• Integrated lambda controller
• Greater internal storage for longer, more comprehensive sessions
• RGB alarm LEDs with flexible user configuration
• Expanded rider and mechanic display page options

Chrome Pro 2 vs Chrome Plus2 — The Complete Package

Both the Chrome Plus2 and the Chrome Pro 2 operate at the high end of the I2M range. The Pro 2 takes the step further by including the full TPMS hardware package and a lambda sensor as standard, rather than as optional extras. Specifically, compared to the Chrome Plus2 the Pro 2 adds:

• Integrated TPMS receiver built into the unit
• Real-time monitoring of tyre pressure and rim temperature
• Two TPMS sensors with adapters included in the box
• BOSCH LSU 4.9 lambda sensor included as standard
• A configuration oriented towards the most comprehensive professional telemetry and track analysis available in the Chrome line

For any rider who wants to consolidate the maximum number of relevant data streams into one system on their Yamaha YZF-R6 RJ27, this makes the Pro 2 the definitive choice.

Who Is the I2M Chrome Pro 2 For?

This dashboard is the right choice if you want to extract the maximum performance from your Yamaha R6 RJ27 using data, if you need GPS lap timing, TPMS and lambda analysis under one roof, or if you are ready to replace the standard cockpit with a professional-grade motorsport instrument. It suits dedicated trackday riders and club racers equally, and the plug-and-play R6 RJ27 adapter means installation is straightforward without specialist wiring knowledge.

Fitment & Compatibility

This kit is supplied with a dedicated adapter for direct fitment to the following motorcycle:

• Yamaha YZF-R6 RJ27 (2017–2026)

Specifications
