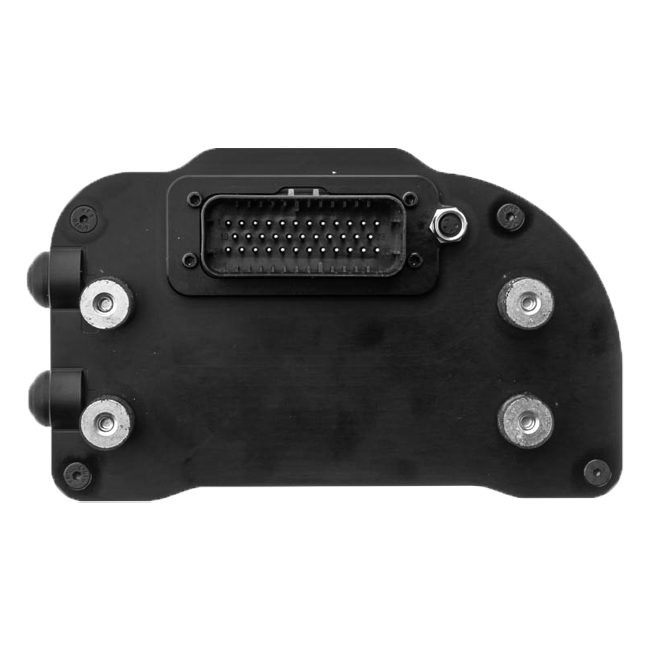

I2M Chrome Pro 2 Dashboard for Kawasaki ZX-10R/RR (2021–2026)

The I2M Chrome Pro 2 represents the pinnacle of the Chrome series — a complete, professional-grade racing dashboard born from motorsport heritage and engineered to extract every meaningful data point from the Kawasaki ZX-10R and ZX-10RR. Where the standard display ends, the Chrome Pro 2 begins: a single, elegantly integrated unit combining GPS lap timing, data logging, TPMS, lambda analysis, WiFi and Bluetooth in a chassis designed to complement the uncompromising character of the current-generation ZX-10R and ZX-10RR.

Key Features

• 5-inch full-colour graphic display at 800 x 480 resolution — outstanding readability even under direct sunlight

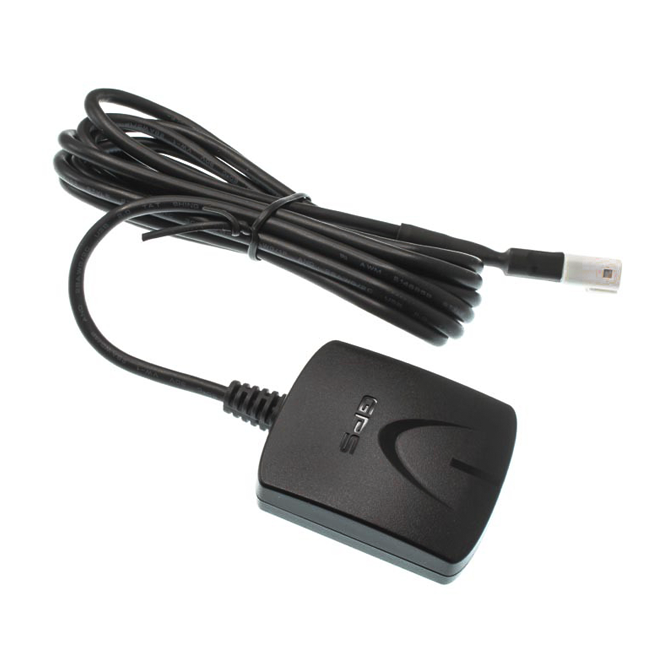

• 10 Hz GPS for precise trajectory mapping and speed measurement across every sector
• 11 freely configurable high-brightness RGB LEDs for shift lights and alarm alerts
• 16 GB internal storage with capacity for up to 500 laps per circuit
• 128 additional CAN-Bus acquisition channels at up to 500 Hz per channel — professional telemetry depth
• Integrated TPMS receiver with tyre pressure and wheel temperature monitoring; two TPMS sensors included
• Integrated lambda controller compatible with the included BOSCH LSU 4.9 lambda sensor
• WiFi connectivity for wireless data transfer and Bluetooth BLE for peripheral device pairing

The Chrome Series Flagship

The ZX-10R and ZX-10RR in their current form are machines built for commitment. Riders who take them to the track deserve instrumentation that matches that ambition. The Chrome Pro 2 is I2M's answer: the most complete racing electronics package in the Chrome family, refined over seasons of real-world motorsport use. Its design philosophy is straightforward — consolidate every function a serious trackday rider or club racer needs into one sophisticated, purpose-built unit.

The 5-inch colour display is a centrepiece of that design. At 800 x 480 pixels, it renders lap data, sector splits and tyre telemetry with the clarity that mid-corner glances demand. The 11 RGB alarm LEDs are configurable in both function and colour, giving riders a fully personalised visual language for shift points and critical alerts.

Beyond the Chrome Lite and Chrome Plus2

Riders already familiar with the Chrome range will understand where the Pro 2 sits. Against the Chrome Lite, the step up is substantial: far greater CAN-Bus channel depth, higher acquisition rates, WiFi, Bluetooth BLE, integrated TPMS, a built-in lambda controller and expanded storage. The Lite is an excellent introduction to GPS and data analysis; the Pro 2 targets professional telemetry.

Compared to the Chrome Lite, the Pro 2 adds:

• Significantly more CAN-Bus acquisition channels and higher sampling rates
• WiFi connectivity for wireless session uploads
• Bluetooth BLE for additional peripheral pairing
• TPMS function with tyre pressure and temperature monitoring
• Integrated lambda controller
• Greater storage for extended, multi-session data sets
• RGB alarm LEDs with flexible configuration
• Extended rider and mechanic page options

Set against the Chrome Plus2, the Pro 2 adds integrated TPMS hardware, wheel temperature monitoring, and ships complete with two TPMS sensors and a BOSCH LSU 4.9 lambda sensor — hardware that represents a meaningful step toward fully professional circuit telemetry.

Compared to the Chrome Plus2, the Pro 2 additionally offers:

• Integrated TPMS receiver as standard
• Tyre pressure and wheel rim temperature monitoring
• Two TPMS sensors included in the scope of delivery
• Lambda sensor included in the scope of delivery
• Greater focus on comprehensive track analysis and professional telemetry

Data That Moves You Forward

Progress on a circuit like the ZX-10RR demands does not come from intuition alone. Fractional brake point adjustments, cleaner corner exits, tyre condition management — these are the details that compound into lap time gains. The Chrome Pro 2 makes each of those variables visible and comparable across sessions. With 20 pre-installed circuits, 4 sectors per track and up to 500 stored laps per circuit, the system builds a structured archive of performance data that riders and mechanics can reference and act on.

For anyone running a ZX-10R or ZX-10RR in club racing, championship events or serious trackdays, this level of data depth is not a luxury — it is the foundation of systematic improvement.

Who Should Choose the Chrome Pro 2?

• Riders who want to extract the maximum from their ZX-10R or ZX-10RR on circuit
• Those seeking a single high-end unit combining GPS, data logging, TPMS and lambda analysis
• Anyone committed to data-driven performance development
• Riders who want an uncompromising dashboard upgrade for ambitious track use
• Those looking for the most complete electronics upgrade available for the current ZX-10R and ZX-10RR

Fitment & Compatibility

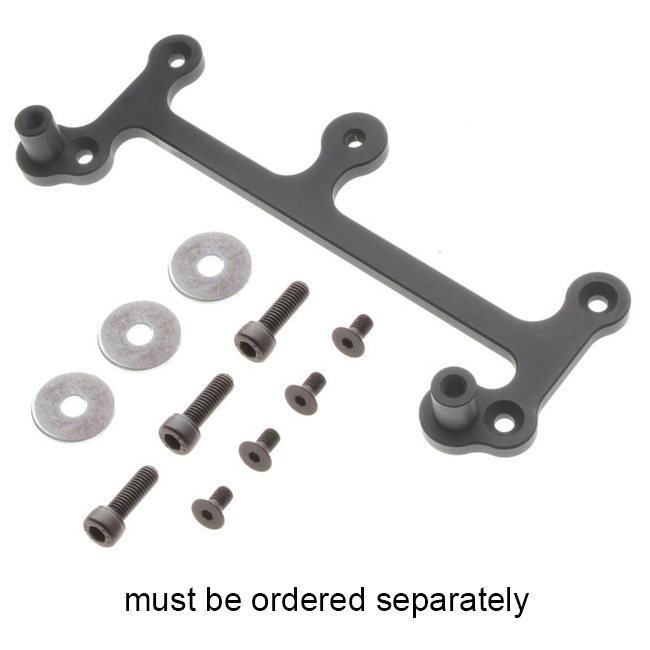

Designed and supplied with a dedicated wiring harness and adapter for the Kawasaki ZX-10R and ZX-10RR (2021–2026). The included ZX-10 R/RR (16–20) adapter further extends compatibility to the previous generation. An optional mounting kit is available as a variant for riders who require the complete installation hardware.

Specifications
