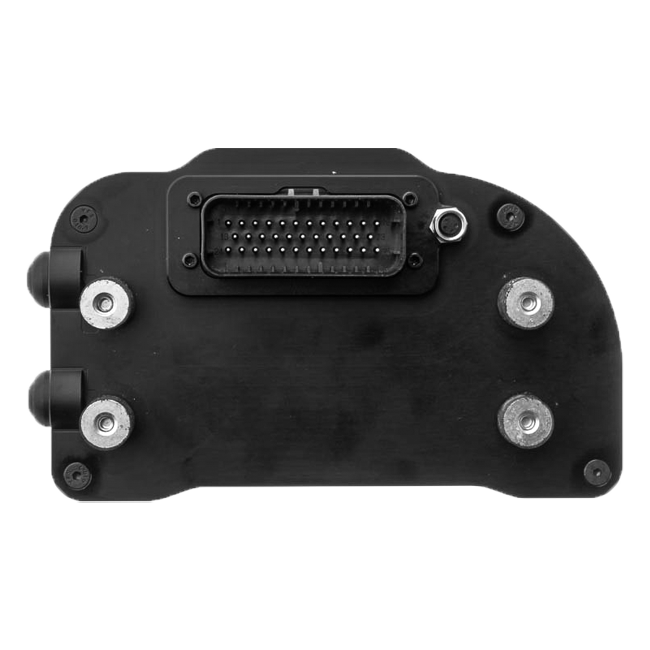

I2M Chrome Pro 2 Dashboard for Aprilia RS 660 (2020–2026)

When the Aprilia RS 660 is your tool for serious track work, the instrumentation must match your ambitions. The I2M Chrome Pro 2 is the flagship of the Chrome series: a race-grade dashboard that integrates a GPS lap timer, data logger, 128-channel CAN-Bus monitor, TPMS, lambda analysis, WiFi, and Bluetooth into one IP67-rated CNC aluminium housing — purpose-built for riders who leave nothing to chance.

Key Features

• 5-inch colour display at 800 x 480 resolution with outstanding legibility in direct sunlight
• IP67-rated CNC aluminium housing offers genuine protection against water ingress and the rigours of track day use

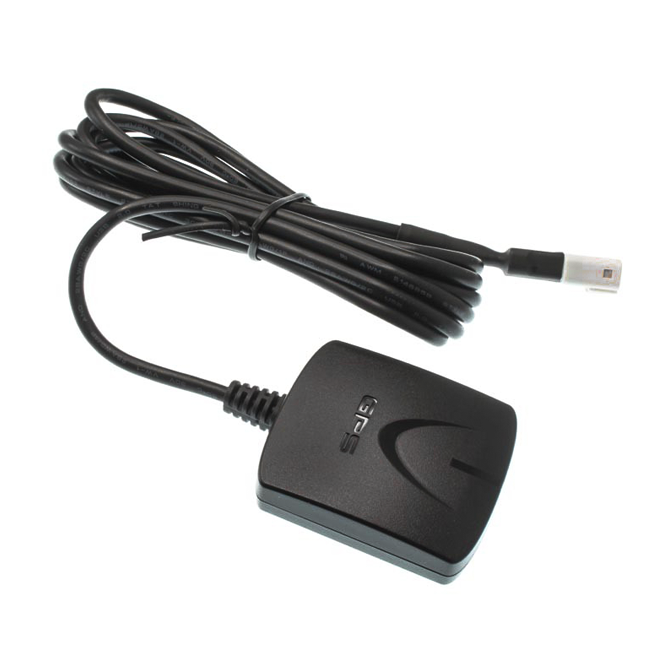

• 10 Hz GPS engine for precise trajectory mapping and speed measurement
• 128 additional CAN-Bus acquisition channels at up to 500 Hz per channel for deep, high-resolution data logging
• Integrated 433 MHz TPMS receiver monitors tyre pressure and wheel temperature for both front and rear — stores up to 4 sensors per wheel
• Integrated lambda controller paired with the included BOSCH LSU 4.9 lambda sensor for real-time air-fuel ratio analysis
• 11 freely configurable high-brightness RGB LEDs deliver instant, customisable alarm and shift-light warnings
• WiFi (including hotspot function), Bluetooth BLE for Polar H7/H10 heart-rate monitors, and video input round out the connectivity suite

The Uncompromising Top of the Chrome Range

The Chrome Pro 2 sits above both the Chrome Lite and the Chrome Plus2 in the I2M lineup. Where the Lite provides a capable entry into GPS-assisted lap timing and the Plus2 adds Bluetooth, WiFi, video input, and a lambda controller, the Pro 2 goes further still. It ships with the BOSCH LSU 4.9 lambda sensor already in the box, adds the integrated 433 MHz TPMS receiver, and includes two TPMS sensors with adapters — everything required for a complete professional setup without sourcing additional hardware.

What the Pro 2 Adds Over the Chrome Lite

• 128 additional CAN-Bus channels recording at up to 500 Hz per channel
• WiFi connectivity including the ability to create its own WiFi hotspot
• Bluetooth BLE integration for heart-rate sensor data
• Full TPMS monitoring for tyre pressure and wheel temperature
• Two TPMS sensors included as standard
• Integrated lambda controller plus BOSCH LSU 4.9 lambda sensor in the box
• Data management via WiFi and optional configuration cable
• Video input for compatible camera integration

What the Pro 2 Adds Over the Chrome Plus2

• Integrated 433 MHz TPMS receiver built into the unit
• TPMS monitoring for both wheels, storing up to 4 sensors per wheel
• Two TPMS sensors with adapters included in the delivery
• BOSCH LSU 4.9 lambda sensor included — not just the controller
• Configuration and connection via dedicated USB cable also possible

Built for Serious Track Analysis

The Chrome Pro 2 transforms the RS 660 into a data-driven development platform. Lap times, sector splits across 4 configurable sectors per track, GPS trajectory, tyre pressure, wheel temperature, lambda values, and engine parameters from up to 128 CAN-Bus channels can all be captured simultaneously. The system stores data across up to 500 laps per circuit, with 20 tracks pre-installed. Export is straightforward via USB stick or WiFi, and the 16 GB internal memory means you will not run short of storage mid-session.

At the limit, feel alone is never enough. The Chrome Pro 2 gives you the objective data to measure, compare, and act — session after session.

Who the Chrome Pro 2 Is Right For

This is the correct choice if you want to extract the maximum from the RS 660's electronics, need a system that covers GPS, TPMS, lambda analysis, and high-density data logging in a single unit, and value total connectivity and configurability over a simplified racing dashboard.

Fitment and Compatibility

Designed and configured specifically for the Aprilia RS 660. The Plug-and-Play RS 660 adapter is included in the delivery, enabling a clean, direct installation without modification.

• Aprilia RS 660 — model years 2020, 2021, 2022, 2023, 2024, 2025, 2026

Specifications
