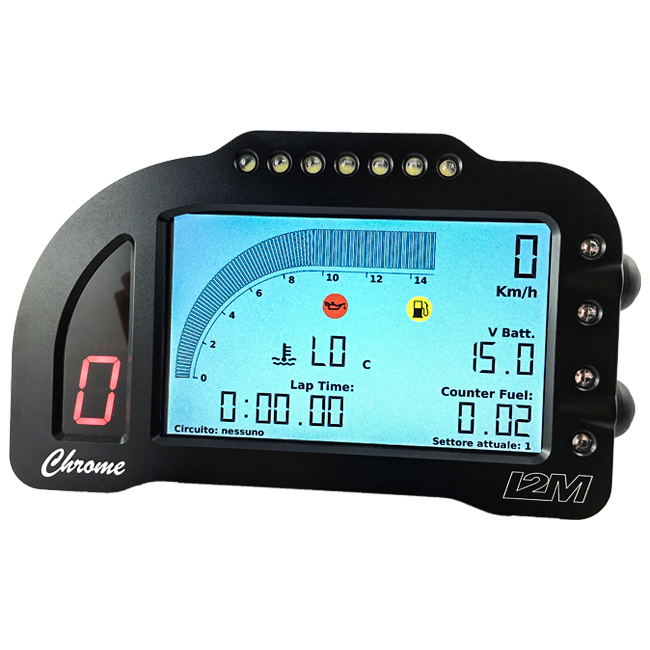

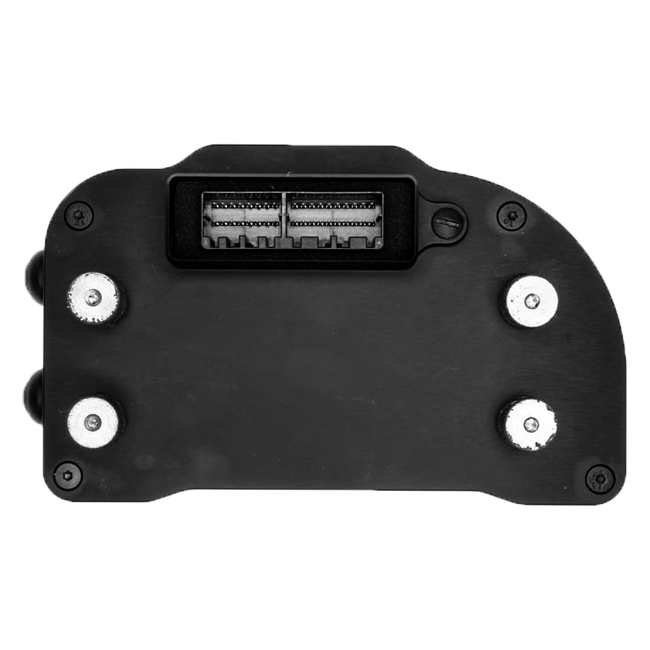

I2M Chrome Lite Dashboard for Aprilia RS 660 (2020–2026)

The I2M Chrome Lite is the dashboard the Aprilia RS 660 always deserved — a precision-engineered, race-focused instrument that replaces the factory display with a system built entirely around rider analysis and track performance. Combining a vivid 800 x 480 colour display, integrated laptimer, 10 Hz GPS and full data logging in a single aluminium-housed unit, the Chrome Lite transforms your RS 660 cockpit from informative to genuinely analytical.

Key Features

• All-in-one solution: dashboard, laptimer and data logger in a single, compact unit purpose-designed for the Aprilia RS 660 (2020–2026)
• 800 x 480 high-resolution colour display with anti-glare glass surface for sharp readability in direct sunlight
• 10 Hz GPS module for precise trajectory mapping, speed measurement and automatic lap timing
• 20 circuits pre-loaded from the factory; up to 500 laps stored per circuit with 3 configurable split points per lap
• 12 individually programmable high-brightness alarm LEDs for instant visual alerts on any critical or performance parameter
• CAN-BUS ready with 1 GB internal storage and USB data export for post-session PC analysis

Design, Finish and Heritage

I2M has spent years supplying data instrumentation to professional racing teams, and the Chrome Lite carries that pedigree into a compact, production-ready package. The housing is machined aluminium — not plastics — chosen for its ability to withstand the vibration, heat and physical demands of sustained track use. The anti-glare treated display glass is a detail that speaks directly to those design priorities: every surface decision has been made with helmet-on, head-down track riding in mind, not just showroom appeal.

Where many aftermarket dashboards compromise on aesthetics to hit a price point, the Chrome Lite maintains a purposefully clean, motorsport-derived aesthetic that sits naturally in the RS 660's sharp, race-influenced cockpit. The result is a unit that looks as though it belongs on the bike — because it was designed to.

Performance on Track and Road

On circuit, what separates improving riders from frustrated ones is usually the quality of the data they can access. The Chrome Lite provides that data clearly and immediately. The track map renders directly on screen so you can position your finish line and split points exactly where you want them. Sessions are organised by circuit and date, making lap-by-lap comparison straightforward. Best Lap, Ideal Lap and full session summaries are all displayed without navigating through sub-menus.

The 10 Hz GPS update rate — significantly faster than the 1 Hz units found in most consumer devices — delivers the trajectory and speed resolution required for meaningful sector analysis. Combined with inputs for RPM signal, front and rear wheel speed, and additional sensor channels, the Chrome Lite builds a data picture that genuinely informs riding decisions rather than simply recording them.

Two user-configurable profiles, Paddock and Track, allow you to switch the display layout and active channels to suit the moment — detailed diagnostics in the paddock, clean essential data at speed on the circuit. Gear position is supported with auto-learning, and distance counters plus cumulative lap totals are logged automatically.

Clear Display, Immediate Orientation

At racing pace, the time available to read a display is measured in fractions of a second. The Chrome Lite's menu structure is designed for fast comprehension: logical layout, configurable screen arrangements, and the 12 high-brightness LEDs positioned to catch peripheral vision for shift points or warning thresholds without requiring the rider to look away from the circuit. You choose which values occupy which positions and how alerts are triggered — the system adapts to your workflow, not the other way around.

Who the Chrome Lite is Built For

This is the right choice if you are using your Aprilia RS 660 on track days or sprint events and want structured, exportable data to support your development. It suits riders who have outgrown gut-feel riding and want lap times backed by trajectory data, sector splits and comparative session analysis. It is equally well suited to instructors who need to demonstrate objective performance data to students, and to serious road riders who want a motorsport-grade instrument without a motorsport-grade installation project.

Optional protective covers are available for the Chrome Lite housing, providing additional resistance to scratches and contamination during intensive paddock or track use — a practical investment for protecting the system over the long term.

Fitment and Compatibility

The I2M Chrome Lite Dashboard is supplied with a dedicated RS660 adapter and is compatible with the following models:

• Aprilia RS 660 — model years 2020, 2021, 2022, 2023, 2024, 2025, 2026

Specifications
