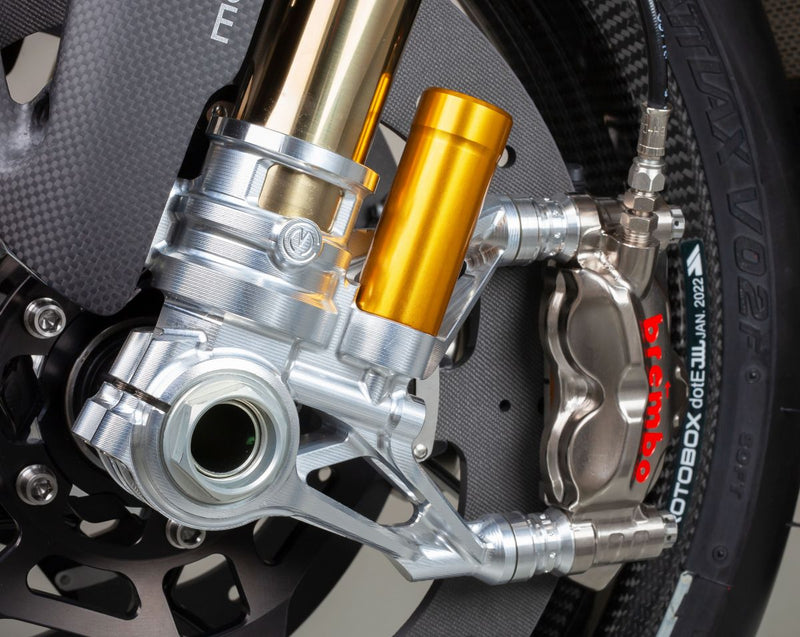

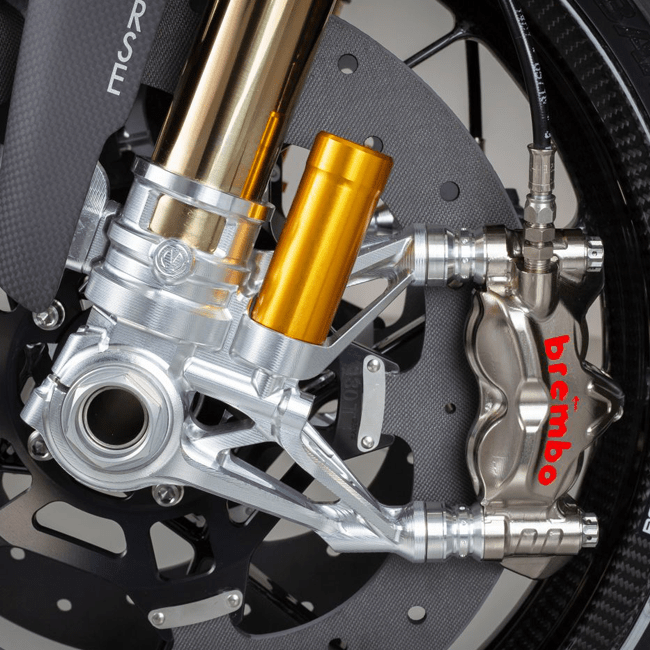

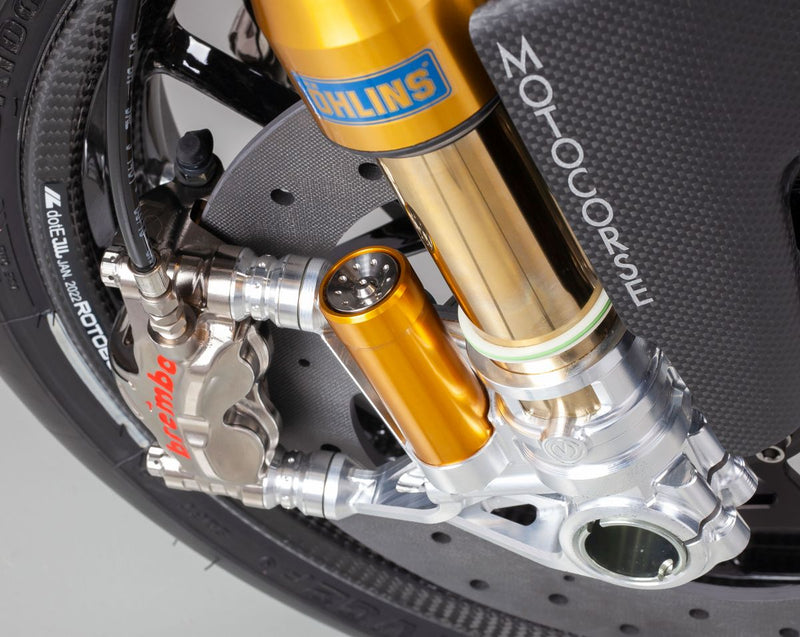

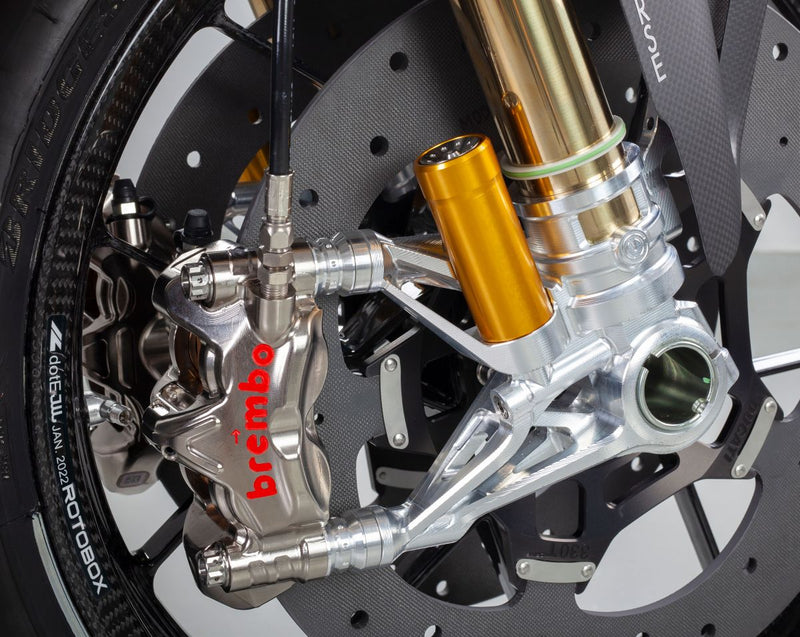

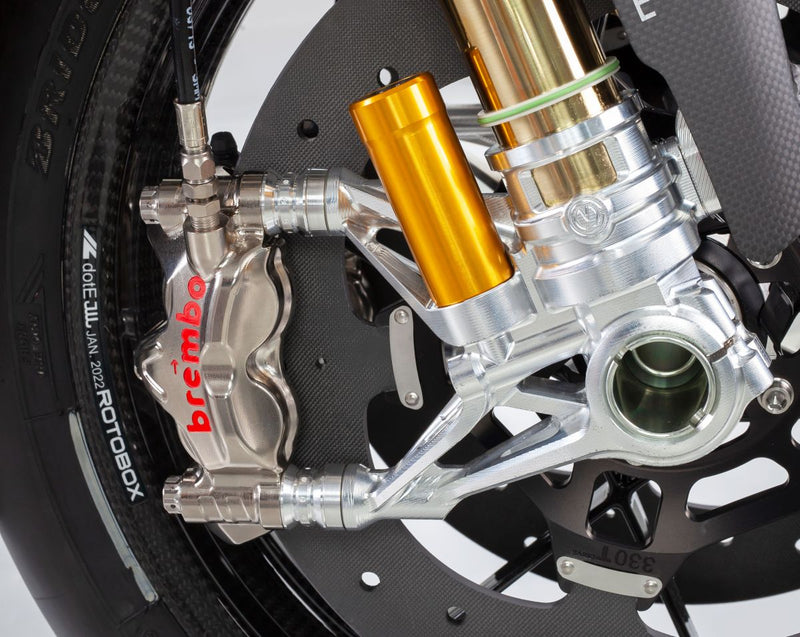

Motocorse CNC Fork Leg Set 108 mm "GP Style" – Ducati Panigale V4 / V4 S / V4 R (2018–2024)

When brake-system integrity is the priority, the Motocorse "GP Style" fork leg set delivers a standard borrowed directly from MotoGP homologation — a 108 mm radial brake mount machined to exacting tolerances from aerospace-grade aluminium. Engineered specifically for the Ducati Panigale V4, V4 S and V4 R (2018–2024), every component in this kit meets the dimensional and structural demands of both road and track use without compromise.

Key Features

• 108 mm radial brake caliper mount — the professional motorsport standard for optimum caliper rigidity and braking precision
• Full CNC-machined aluminium construction throughout, ensuring maximum dimensional accuracy and long-term structural stability
• Hard anodised finish available in Silver, Titanium, Black and Red — corrosion-resistant and wear-resistant under repeated thermal cycling
• Mudguard brackets included, also CNC-machined to the same standard as the fork legs
• Four caliper spacers included for a correctly aligned brake caliper interface (calipers and bolts sold separately)
• Plug-and-play fitment — no modification to the wheel, brake discs or fork required; only longer brake lines are needed
• Air reservoir caps CNC-machined in Titanium; reservoir body available in Gold, Black or Red to allow precise colour coordination

Engineering and Build Quality

Motocorse developed the "GP Style" fork leg set as a direct translation of factory racing architecture. The 108 mm radial mount geometry is the benchmark used in top-level prototype racing because it places the caliper bolts at the optimal distance from the disc centre, reducing flex under extreme braking loads and giving the rider a more consistent lever feel. Every surface that contacts a structural component — the axle clamp, the caliper mount faces, the mudguard bracket interfaces — is machined to tight tolerances rather than cast, eliminating the micro-movement that degrades braking feel over time.

The hard anodised surface treatment is not merely decorative. Anodising penetrates the aluminium substrate rather than sitting on top of it, making it significantly harder and more resistant to abrasion and corrosive road contamination than paint or standard anodising. This matters on a component that sits directly behind the front wheel and is exposed to brake dust, road chemicals and heat cycles every time the bike is ridden.

Installation Notes

Installation is straightforward — the kit is designed as a direct replacement for the OEM fork legs and mounts. No machining or modification to the fork stanchions, wheel or brake discs is required. The sole additional requirement is fitting longer brake lines to accommodate the revised brake caliper position introduced by the 108 mm radial mount geometry. Brake calipers and mounting bolts are not included in this kit and must be sourced separately.

Fitment and Compatibility

This fork leg set is engineered for primary use on Ducati Panigale V4 S and V4 R models fitted with the pressurised Öhlins front fork (2018–2024), where the 108 mm radial mount provides a functional upgrade to the braking system geometry.

The set can also be fitted for aesthetic purposes on models equipped with a non-pressurised Öhlins fork, including:

• Ducati Panigale V2
• Ducati Panigale V4
• Ducati Streetfighter V4

On these models the fork internals remain functionally unchanged, but the motorcycle gains the immediately recognisable "GP Style" front-end appearance associated with factory race machinery.

Personalisation Options

• Fork leg colours: Silver, Titanium, Black, Red
• Air reservoir colours: Gold, Black, Red
• Air reservoir caps: Titanium, CNC-machined

Specifications
