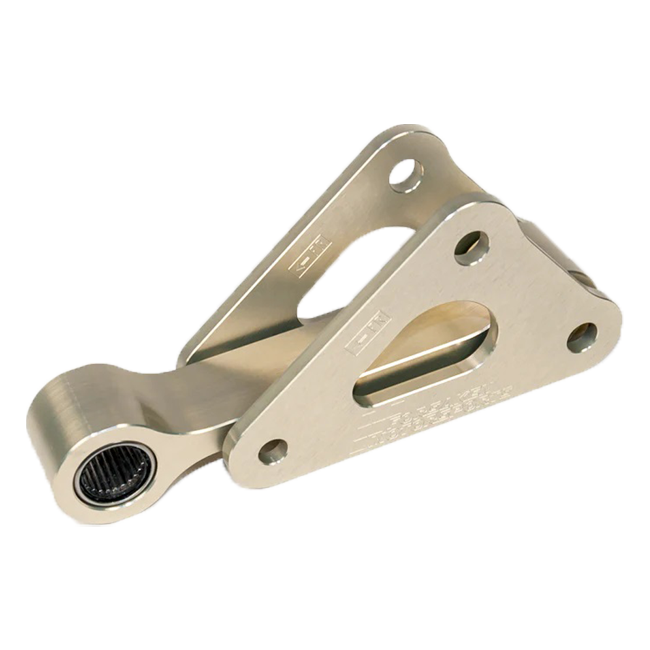

Forsaken Motorsport Linear Linkage for Suzuki GSX-R 1000 (2009–2016)

Precision-engineered in Canada on a Haas VM3 CNC mill, the Forsaken Motorsport linear linkage for the Suzuki GSX-R 1000 (2009–2016) is a purpose-built suspension upgrade that transforms the rear end's progressive rate into a more linear, predictable response. The result is sharper traction feedback and more consistent power transfer — exactly what demanding riders need whether chasing lap times or pushing the limits on a favourite road.

Key Features

• Converts the stock progressive suspension rate to a linear one, delivering improved traction and more efficient power transfer through the rear wheel.
• CNC-machined from a solid aluminium billet using a Haas VM3 mill at the Forsaken Motorsport facility in Canada — zero compromise on dimensional accuracy.
• 35% stiffer than the original linkage, minimising flex and deflection under hard loading.
• Compatible with the stock spring, yet fully adaptable: swap the spring to suit your riding style or weight, and adjust valve tuning to exploit the flatter progressive rate.
• Ships with new bearings pre-installed; original bolts, sleeves and seals are reused, keeping installation straightforward.

Design, Finish and Heritage

Forsaken Motorsport is a Canadian manufacturer with a reputation for parts that are as visually distinguished as they are functionally superior. Every linkage leaves the workshop having been machined from a single billet of aluminium — a process that eliminates the porosity and stress concentrations inherent in cast components. The clean, machined aesthetic integrates naturally with the GSX-R 1000's chassis, while the rigidity advantage over the OEM part is immediately apparent in the handling once fitted. This is a component built to the same standard as the bikes it upgrades.

Performance on Road and Track

The core engineering argument for a linear linkage is consistency. The stock linkage's progressive rate means suspension behaviour changes as the travel increases, which can make the rear feel unpredictable mid-corner when weight transfer is already occurring. By linearising the rate, Forsaken Motorsport gives the rider a more honest, repeatable platform — the rear behaves the same at the beginning of travel as it does deep into a bump or compression event. Combined with the 35% increase in rigidity, this translates directly into greater confidence when braking late and turning in, and cleaner drive out of corners. Valve tuning adjustments are recommended to get the most from the flatter rate characteristic.

Fitment and Compatibility

Designed exclusively for the Suzuki GSX-R 1000 covering model years 2009 through to 2016. For solo riding use only — pillion or passenger operation is not suitable with this linkage installed.

Specifications

• Brand: Forsaken Motorsport
• Fitment: Suzuki GSX-R 1000 (2009–2016)
• Material: CNC-machined aluminium billet
• Machined on: Haas VM3 CNC mill
• Stiffness increase vs OEM: 35%
• Suspension rate conversion: progressive to linear
• Kit contents: two linkage levers, one linkage arm, new bearings
• Reusable OEM hardware: bolts, sleeves and seals
• Intended use: solo riding only
