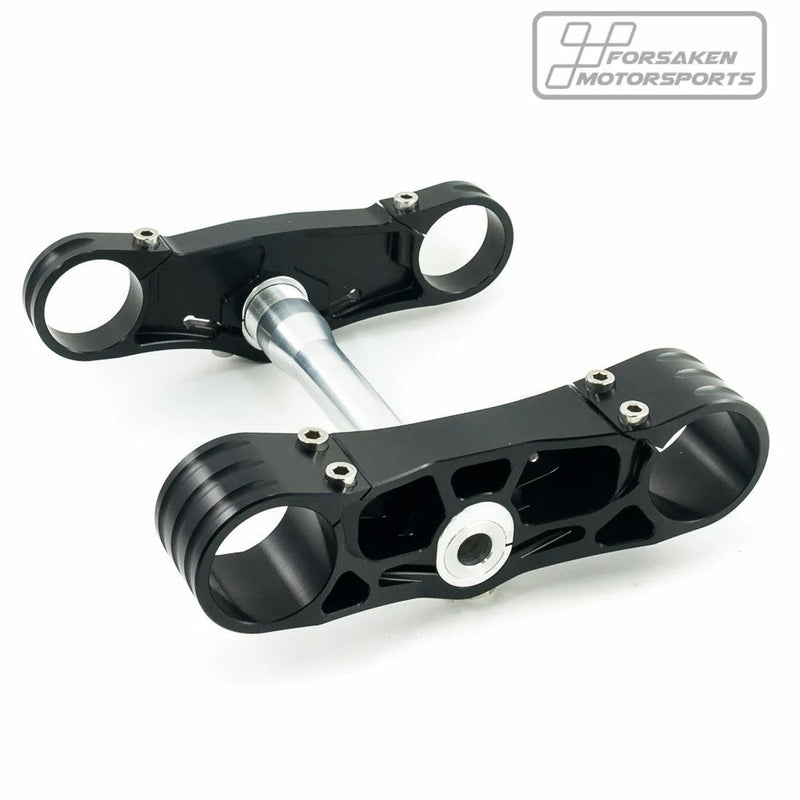

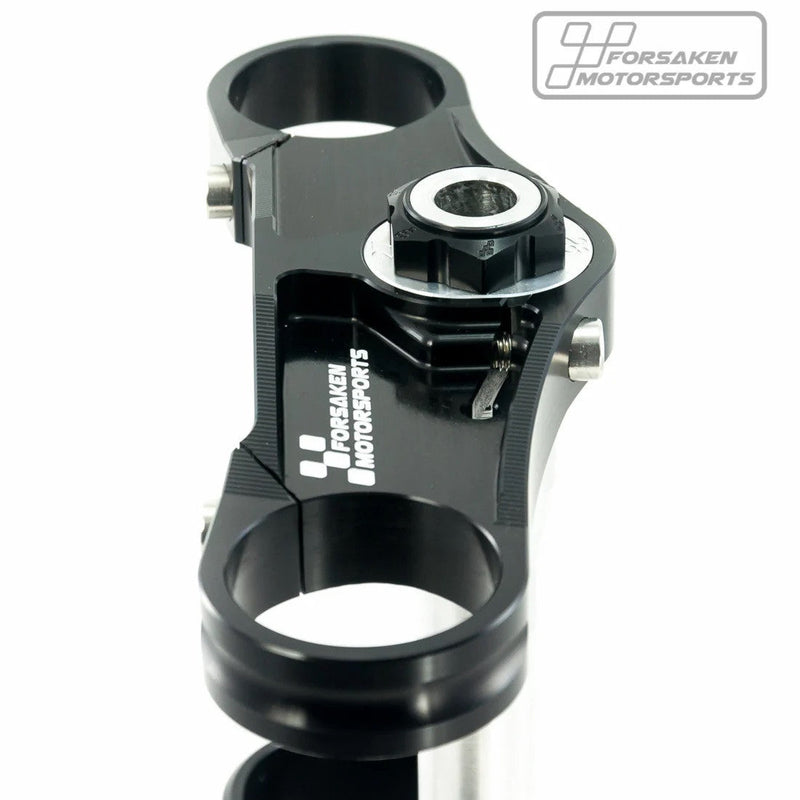

Forsaken Motorsport Triple Clamp for Yamaha YZF-R1/M RN32 RN49 RN65 (2015–2026)

Forsaken Motorsport has refined the art of chassis geometry for the Yamaha YZF-R1/M, and this triple clamp set is the clearest expression of that philosophy. Machined from high-grade aluminium and finished in a deep black anodised coat, it marries aggressive aesthetics with engineering precision — giving serious riders the geometry control their YZF-R1 or R1M demands, whether that is on circuit or on a demanding mountain road.

Key Features

• Adjustable offset range spanning 24 mm, 25 mm, 26 mm, 27 mm, 28 mm and 29 mm — inserts for all six values included as standard.
• Additional offset inserts available separately: 30–23 mm set and 31–22 mm set, for extreme geometry tuning.
• Upper clamp bore 50 mm, lower clamp bore 54 mm — matched precisely to the YZF-R1/M fork tube diameter.
• Integrated steering damper bracket accommodates fork-mounted steering dampers without additional hardware.
• Adjustable steering stops allow fine-tuning of lock-to-lock movement to suit track configurations or road use.
• Custom upper nut included for a factory-quality fit and finish.
• All bolts and inserts treated with cobalt-based anti-seize paste; accessory bolts secured with blue Loctite compound for long-term corrosion resistance and assembly integrity.

Design, Finish and Heritage

The black anodised finish is not simply a visual choice — it is a deliberate statement of intent. Forsaken Motorsport has built its reputation on parts that look as purposeful as they perform, and this triple clamp carries that identity through every detail. The deep, even anodise coat resists corrosion and wear in all weather conditions, while the precision-machined aluminium body ensures the kind of dimensional accuracy that geometry-sensitive suspension setups require. From the first fitting, it is clear this is not an aftermarket compromise; it is a considered upgrade.

Performance and Geometry Control

Offset is one of the most powerful variables a rider can adjust in chassis setup. Reducing it quickens steering and sharpens turn-in response; increasing it adds stability under braking and at high speed. This triple clamp set gives riders six discrete offset positions as standard, covering a range that suits everything from aggressive superbike track days to fast road riding. The anti-seize treatment on inserts and bolts ensures adjustments remain repeatable and reliable even after repeated changes — essential when dialling in geometry between sessions.

Fitment and Compatibility

This triple clamp set is designed and manufactured specifically for the following models:

• Yamaha YZF-R1 — RN32 (2015–2019)
• Yamaha YZF-R1M — RN32 (2015–2019)
• Yamaha YZF-R1 — RN49 (2020–2023)
• Yamaha YZF-R1M — RN49 (2020–2023)
• Yamaha YZF-R1 — RN65 (2024–2026)
• Yamaha YZF-R1M — RN65 (2024–2026)
