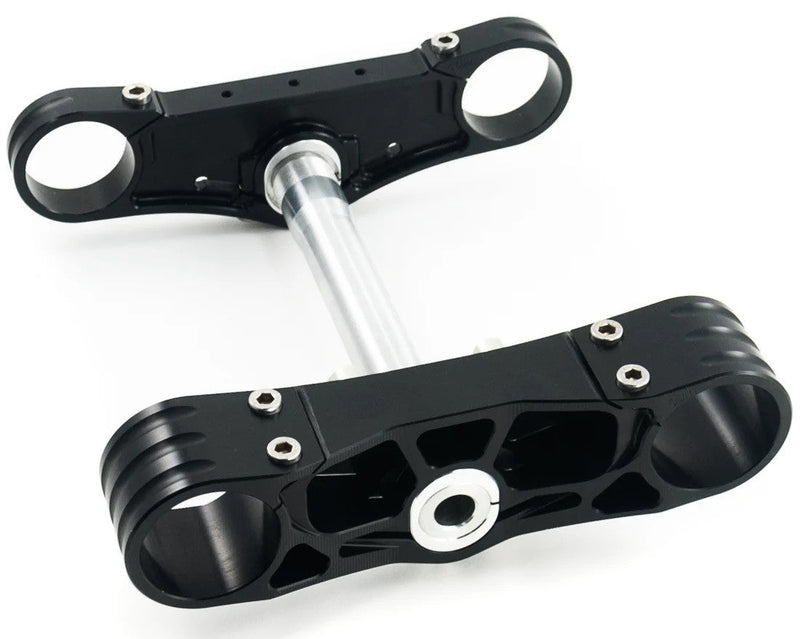

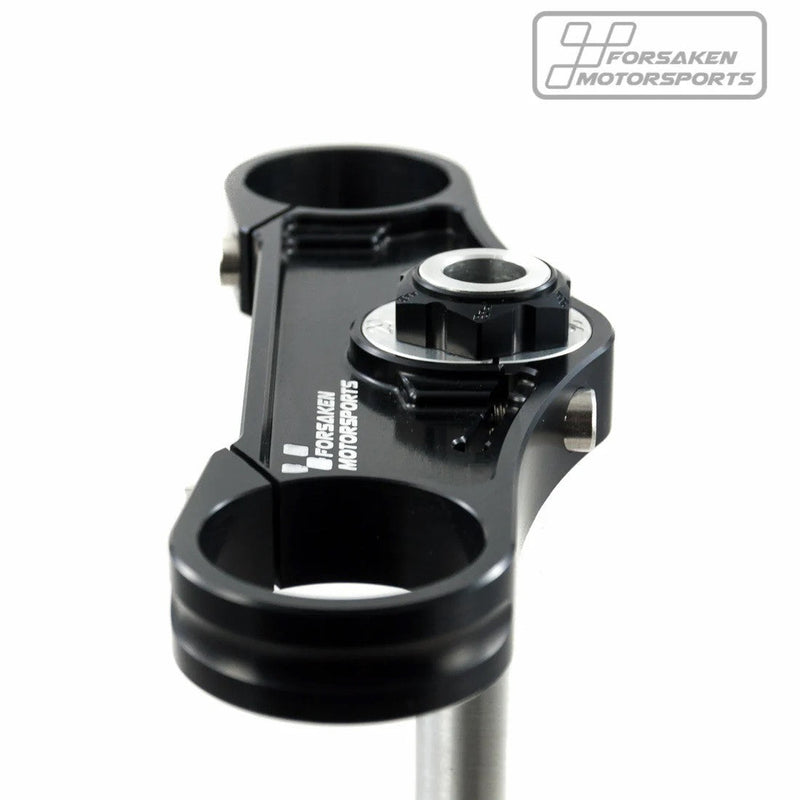

Forsaken Motorsport Triple Clamp for Suzuki GSX-R 1000 (2017–2023) – Adjustable Offset, Black Anodised

Built for riders who demand precision geometry at the track, the Forsaken Motorsport triple clamp for the Suzuki GSX-R 1000 (2017–2023) delivers a wide, tool-friendly offset adjustment range that lets you dial in handling for every circuit and riding style. Machined from premium aluminium and finished in a hard black anodise, this is a race-grade component that does not compromise on refinement.

Key Features

• Adjustable offset covering 25 mm, 26 mm, 27 mm, 28 mm, 29 mm and 30 mm via interchangeable inserts — additional 31-24 mm and 32-23 mm insert sets available separately.
• Upper clamp diameter: 50 mm; lower clamp diameter: 55 mm — precise fitment for GSX-R 1000 fork tubes.
• Adjustable steering stops allow you to tailor lock-to-lock movement for track use without modification to the frame.
• Integrated bracket for fork-mounted steering dampers, compatible with leading damper brands.
• All bolts and inserts pre-treated with cobalt-based anti-seize paste; secondary fasteners secured with blue Loctite compound for long-term reliability.
• Custom upper stem nut included, machined to match the clamp's finish and thread specification.

Race-Engineered Geometry Control

Offset adjustment is one of the most effective and most overlooked tuning variables on a track-prepared GSX-R 1000. Moving from a longer to a shorter offset sharpens turn-in and quickens steering response — critical when you are chasing consistent lap times. The Forsaken Motorsport triple clamp packages this adjustment into a single, elegant component rather than requiring you to source multiple stems or adapt aftermarket yokes. Six offset positions come included as standard; the optional 31-24 mm and 32-23 mm insert sets extend the range further for riders running aggressive geometry or dedicated sprint configurations.

Build Quality & Materials

The clamp body is machined from high-grade aluminium billet and finished with a premium black anodise that resists corrosion, fuel splash and the general abuse of paddock life. Forsaken Motorsport's attention to fastener preparation — cobalt anti-seize on the load-bearing inserts, blue Loctite on the ancillary hardware — reflects a professional assembly philosophy that saves you time and headaches at the track.

Fitment & Compatibility

Designed and manufactured specifically for the Suzuki GSX-R 1000, model years 2017 through 2023. No modification to the stock fork tubes or frame is required for installation with the standard offset inserts.

Specifications

• Brand: Forsaken Motorsport
• Fitment: Suzuki GSX-R 1000 (2017–2023)
• Material: Aluminium billet
• Finish: Black anodised
• Upper clamp bore: 50 mm
• Lower clamp bore: 55 mm
• Standard offset range: 25 mm – 30 mm (six positions via included inserts)
• Optional offset extensions: 31-24 mm insert set, 32-23 mm insert set (ordered separately)
• Fastener treatment: Cobalt anti-seize paste (inserts & bolts); blue Loctite (secondary fasteners)
