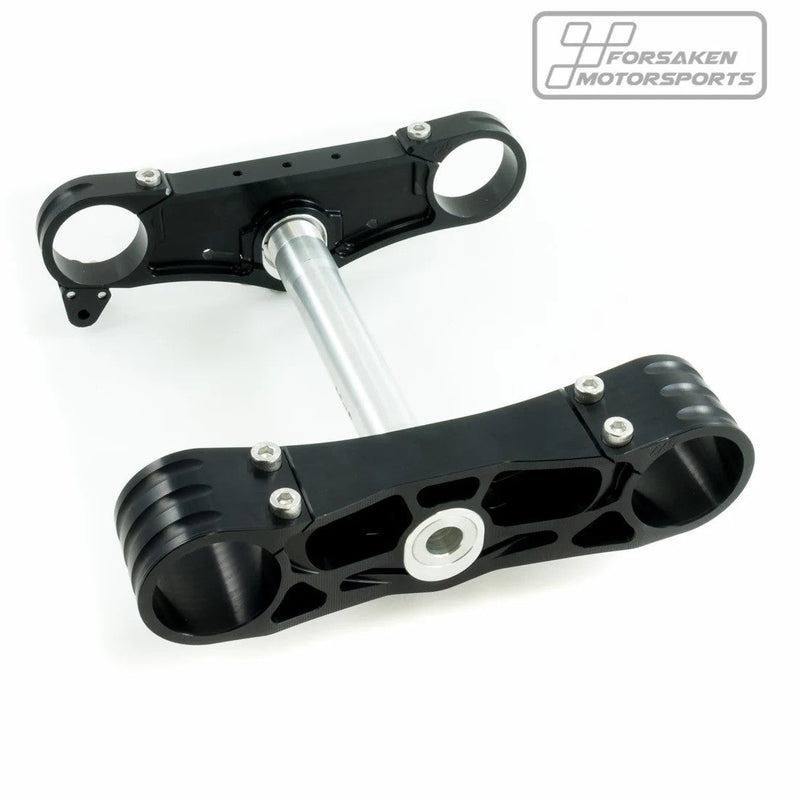

Forsaken Motorsport Triple Clamp (25-30mm Offset) for Kawasaki ZX-10 R/RR (2016-2020)

Built for riders who demand measurable geometry gains on track, the Forsaken Motorsport triple clamp for the Kawasaki ZX-10 R/RR (2016-2020) delivers six discrete offset positions between 25 mm and 30 mm in a single kit. Machined from high-grade aluminium and finished in black anodising, it is the foundation of a serious chassis setup for circuit or race-series use.

Key Features

• Six included insert sets cover offsets of 25 mm, 26 mm, 27 mm, 28 mm, 29 mm and 30 mm — swap geometry to suit the circuit without sourcing additional parts.
• Optional 31-24 mm and 32-23 mm insert sets available separately, extending the tuning range further than any stock component.
• Upper clamp bore of 50 mm and lower clamp bore of 55 mm machined to precise tolerances for a rattle-free fit.
• Adjustable steering stops allow fine-tuning of lock-to-lock travel to match fairing and track regulations.
• Integrated mount for fork-mounted steering dampers — no adapter plates or additional brackets required.
• Custom upper nut included for correct preload and a clean, matched finish.
• All bolts and inserts treated with cobalt-based anti-seize compound; smaller accessory fasteners secured with blue Loctite for long-term corrosion resistance and reliable retention.

Track Performance & Build Quality

Offset adjustment is one of the most powerful tools a race technician has: reducing offset quickens steering and increases front-end agility, while increasing offset adds stability at high speed. The Forsaken Motorsport triple clamp puts that decision in the rider's hands without the cost or downtime of a full custom front end. The anodised aluminium construction keeps unsprung weight in check while providing the rigidity a ZX-10 R demands under hard braking into slow corners.

The cobalt anti-seize treatment on all inserts and bolts is a detail that matters in a paddock environment — repeated geometry changes between sessions will not gall or seize threads, so changeovers stay fast and reliable across an entire race weekend.

Fitment & Compatibility

Designed and manufactured specifically for the Kawasaki ZX-10 R and ZX-10 RR produced between 2016 and 2020. Not compatible with earlier or later generation ZX-10 R chassis without verification. If running a fork-mounted steering damper, the integrated bracket accepts standard fork-mount configurations directly.

Specifications

• Brand: Forsaken Motorsport
• Fitment: Kawasaki ZX-10 R / ZX-10 RR, model years 2016-2020
• Material: High-grade aluminium, black anodised
• Included offset range: 25 mm, 26 mm, 27 mm, 28 mm, 29 mm, 30 mm
• Optional offset sets: 31-24 mm, 32-23 mm (available separately)
• Upper clamp bore: 50 mm
• Lower clamp bore: 55 mm
• Steering damper mount: Yes, for fork-mounted dampers
• Fastener treatment: Cobalt-based anti-seize; blue Loctite on accessory screws
