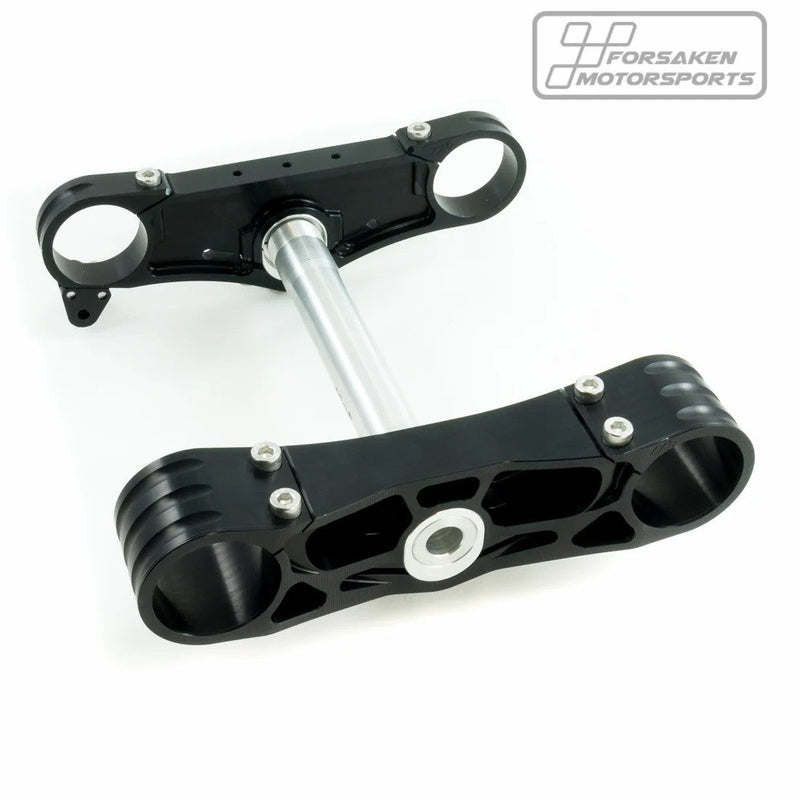

Forsaken Motorsport Triple Clamp (22–27 mm Offset) for Kawasaki ZX-10 R/RR (2021–2026)

Precision chassis geometry is the foundation of confidence on track and road alike, and this Forsaken Motorsport triple clamp gives Kawasaki ZX-10 R and ZX-10 RR riders (2021–2026) the range to dial in exactly the riding position and handling balance that suits them best. Six offset settings from 22 mm to 27 mm are included as standard, meaning a comfortable, all-day fit can be found without compromise, whether you favour a relaxed road geometry or an aggressive track stance.

Key Features

• Six-position adjustable offset — 22 mm, 23 mm, 24 mm, 25 mm, 26 mm and 27 mm inserts included, covering the full spectrum from comfort-oriented to race-sharp geometry.
• Extended offset availability — additional 28/21 mm and 29/20 mm insert sets available as optional extras for riders seeking the most extreme geometry changes.
• Black anodised high-grade aluminium construction provides lasting corrosion resistance without adding unnecessary weight.
• Upper clamp tube diameter 50 mm, lower clamp tube diameter 55 mm — precisely matched to ZX-10 R/RR fork dimensions for a rattle-free, accurate fit.
• Adjustable steering stops allow fine-tuning of lock-to-lock travel to suit track regulations or personal preference.
• Fork-mounted steering damper bracket integrated into the design for a clean, purpose-built installation.
• Cobalt-based anti-seize paste applied to bolts and inserts; smaller accessory bolts secured with blue Loctite — long-term reliability built in from the factory.

Geometry That Works With You

The ability to change offset is one of the most effective tools in chassis setup, altering trail and therefore steering response with each step. Forsaken Motorsport's approach here is thorough: rather than limiting you to two or three positions, the full 22–27 mm range is shipped in the box, and the insert system means changes can be made methodically between sessions. Riders who spend long days in the saddle will appreciate how a relaxed offset reduces the effort required at the bar, while track-day regulars can tighten up the geometry for sharper turn-in without purchasing a second clamp.

Build Quality

The upper and lower clamps are machined from high-grade aluminium and finished with a black anodised coating that resists chips, scratches and the inevitable track grime. Every fastener leaves the workshop already treated — inserts and structural bolts with cobalt-based anti-seize compound, smaller hardware with blue Loctite — so the assembly behaves predictably over time and strip-down is never a battle. A custom-machined top nut is included to ensure the steering stem preload is set correctly from the outset.

Fitment and Compatibility

Designed and manufactured specifically for the Kawasaki ZX-10 R and ZX-10 RR, covering model years 2021 through 2026. Upper fork clamp diameter 50 mm; lower fork clamp diameter 55 mm. Optional 28/21 mm and 29/20 mm insert sets can be added at the time of ordering for the widest possible geometry range.

Specifications

• Brand: Forsaken Motorsport
• Fitment: Kawasaki ZX-10 R / ZX-10 RR, 2021–2026
• Material: High-grade aluminium, black anodised
• Colour: Black
• Upper clamp diameter: 50 mm
• Lower clamp diameter: 55 mm
• Included offset range: 22 mm, 23 mm, 24 mm, 25 mm, 26 mm, 27 mm
• Optional offsets: 28/21 mm and 29/20 mm insert sets (available separately)
• Steering damper bracket: Fork-mounted, included
