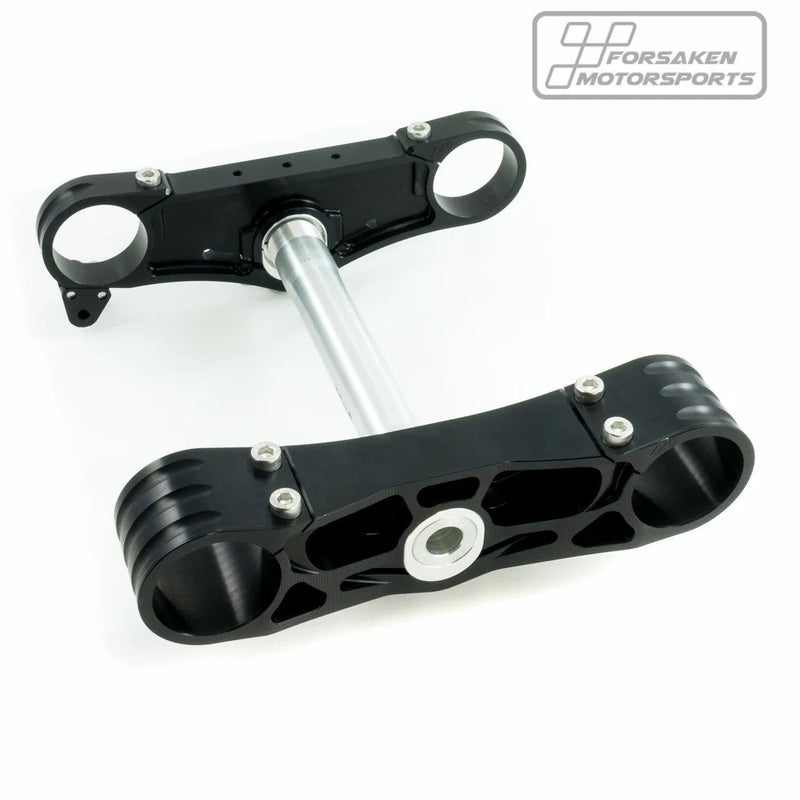

Forsaken Motorsport Triple Clamp (22-27mm Offset) – Kawasaki ZX-10 R/RR (2016-2020)

Precision-machined from aerospace-grade aluminium and finished in a deep anodised black, the Forsaken Motorsport triple clamp for the Kawasaki ZX-10 R/RR (2016–2020) is the benchmark choice for riders demanding genuine chassis adjustability without compromise on material quality or dimensional accuracy.

Key Features

• Adjustable offset spanning 22 mm, 23 mm, 24 mm, 25 mm, 26 mm and 27 mm via included inserts — covering everything from road touring geometry to aggressive track configurations in a single unit.
• Upper and lower fork clamp diameters of 50 mm and 55 mm respectively, machined to tight tolerances for a rattle-free grip on the fork legs.
• High-quality aluminium construction with a durable anodised black finish that resists corrosion, scratching and brake-fluid contact better than painted alternatives.
• Adjustable steering stops allow fine-tuning of lock-to-lock travel, protecting the fairing and fuel tank without compromising low-speed manoeuvrability.
• Integrated steering damper bracket fits fork-mounted dampers, keeping the cockpit clean and the damper precisely positioned.
• All inserts and bolts treated with a cobalt-based anti-seize compound; smaller accessory fasteners secured with blue Loctite — both details that prevent galling and ensure future disassembly is straightforward.

Build Quality & Engineering Detail

Every dimension of this triple clamp has been developed around the ZX-10 R/RR fork centres and steering head geometry. The anodised black surface is not merely cosmetic: hard anodising adds a layer of surface hardness that protects the aluminium from track grime, tyre warmers and repeated spanner contact. The bespoke top nut is included in the kit, meaning there is no need to source a custom fastener separately — a thoughtful detail that reflects the overall standard of the package.

The cobalt-based anti-seize treatment applied to inserts and primary bolts is a professional-level touch found on factory race kits. It prevents the electrolytic corrosion that can occur between aluminium and steel fasteners under vibration loading, protecting the clamp's threads across an entire season of hard use. The blue Loctite on the smaller hardware provides the correct level of thread retention without making future disassembly unnecessarily difficult.

Geometry Tuning

Offset is one of the most influential variables in motorcycle geometry. Reducing offset sharpens steering response and adds front-end aggressiveness — beneficial on tight, technical circuits. Increasing offset softens the steering feel and adds stability at high speed. The six included offsets (22 mm to 27 mm) cover the full realistic range for ZX-10 R track use. If your programme demands even more extreme geometry, the 28-21 mm and 29-20 mm insert sets are available as optional add-ons and can be selected at the time of ordering.

Fitment & Compatibility

This triple clamp is designed and manufactured specifically for the Kawasaki ZX-10 R and ZX-10 RR model years 2016 through 2020. It is not a universal component — the fork clamp diameters (50 mm upper, 55 mm lower) and steering stem dimensions are matched to these model years. Always verify your fork leg diameters before ordering if your machine has been fitted with non-standard forks.

Specifications

• Brand: Forsaken Motorsport
• Fitment: Kawasaki ZX-10 R / ZX-10 RR, 2016–2020
• Material: Aluminium, anodised black
• Upper clamp diameter: 50 mm
• Lower clamp diameter: 55 mm
• Included offset range: 22 mm, 23 mm, 24 mm, 25 mm, 26 mm, 27 mm
• Optional offset sets: 28-21 mm insert set, 29-20 mm insert set (available separately)
• Steering stops: Adjustable
• Steering damper bracket: Included (fork-mount compatible)
