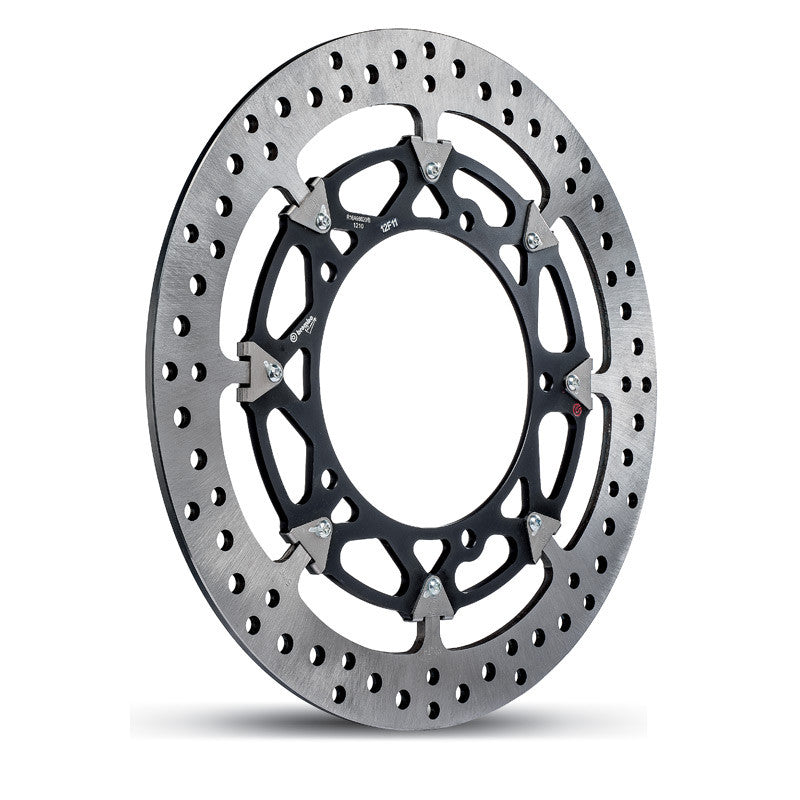

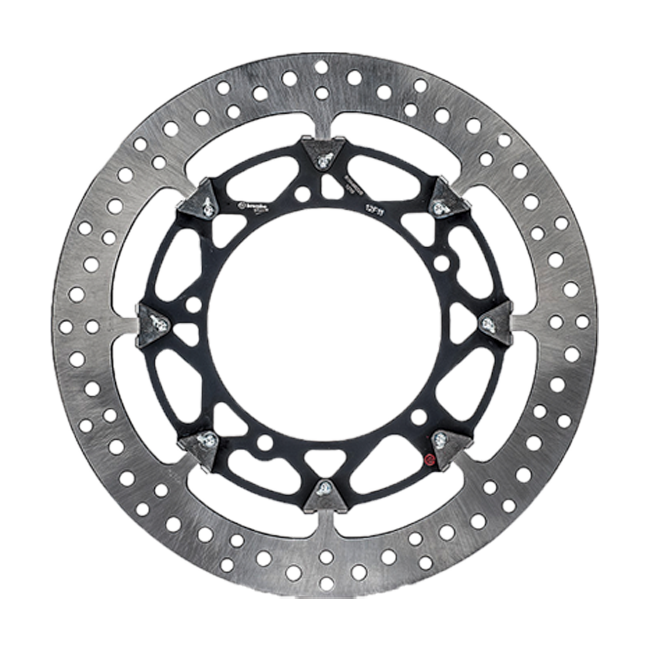

Brembo SSP T-Drive 5.5 Brake Disc Kit – Suzuki GSX-R 1000 (2009–2023) 208A98533

Engineered from the same materials trusted in MotoGP, the Superbike World Championship and the Supersport World Championship, the Brembo SSP T-Drive 5.5 brake disc kit for the Suzuki GSX-R 1000 (2009–2023) brings genuine race-derived construction to road and track use. The T-Drive floating system represents an evolution beyond conventional 10-floater SSP discs, delivering more efficient braking force transmission while trimming rotational mass — without any compromise in stopping power or longevity.

Key Features

• T-Drive floating mount transfers braking force with greater efficiency than conventional floater systems, maintaining consistent bite lap after lap or mile after mile.
• Material specification mirrors the brake discs used in MotoGP, SBK and SSP competition — the same metallurgy that survives the harshest braking zones on the planet.
• At 5.5 mm thickness across a 320 mm diameter ring, the disc geometry is optimised for stiffness, heat dissipation and low unsprung weight.
• Compatible with the GSX-R 1000 standard brake calipers and with Brembo M4 monobloc calipers and other high-performance caliper upgrades.
• Kit covers the front axle, providing a matched pair of discs for balanced, symmetrical braking across the full 2009–2023 model year span.

Race Technology, Road Reality

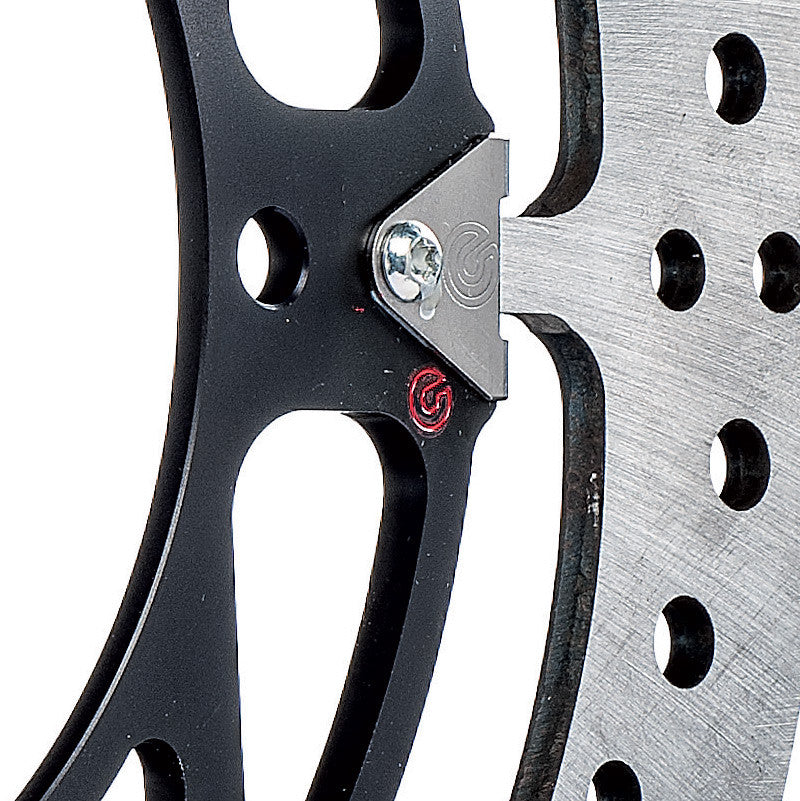

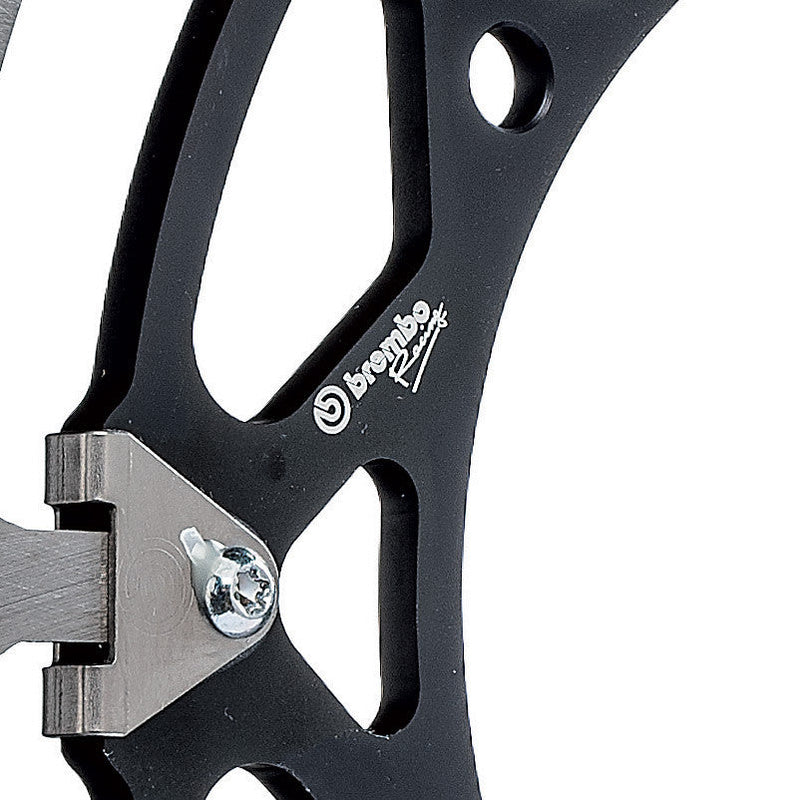

The T-Drive system was conceived on the circuits of WorldSBK before finding its way into Brembo's SSP catalogue. The secret lies in how the floating band interfaces with the aluminium carrier: instead of standard buttons or floaters, T-shaped drive pins guide the band radially while allowing the thermal expansion essential during hard braking. The result is a disc that runs truer under heat, resists warping and maintains a consistent feel at the lever — exactly what a high-revving litre bike like the GSX-R 1000 demands.

Build Quality and Materials

Brembo specifies a dedicated iron alloy for the friction ring — selected not for cost but for its friction coefficient stability across the temperature range a GSX-R 1000 generates. The carrier is precision machined and the T-Drive pins are retained and aligned to exacting tolerances. The 5.5 mm band thickness is a deliberate choice: thick enough for aggressive street and trackday use, yet lighter than thicker alternatives, keeping unsprung and rotational mass in check for sharper turn-in and more responsive front-end feel.

Fitment and Compatibility

This kit is developed specifically for the Suzuki GSX-R 1000 covering model years 2009 through to 2023. It is compatible with OEM brake calipers as fitted from the factory, and with Brembo M4 monobloc calipers and comparable aftermarket caliper upgrades. Always verify your model year and caliper specification before fitting. Part number 208A98533 confirms exact application.
