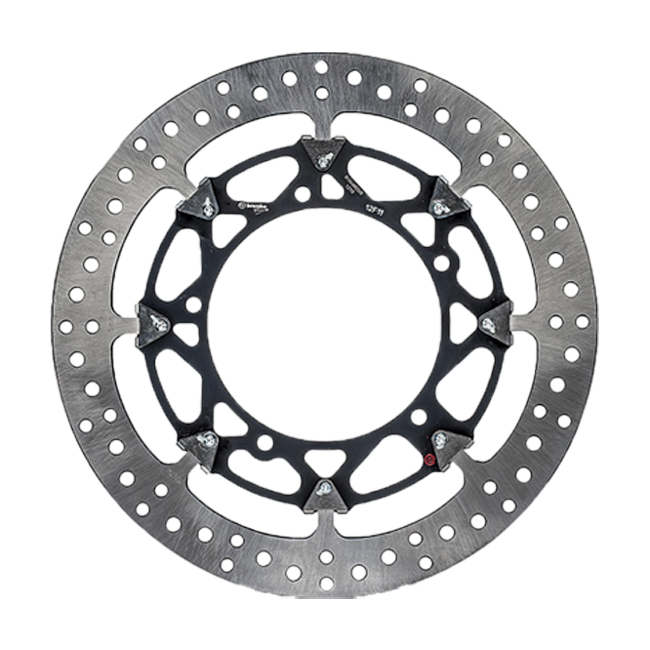

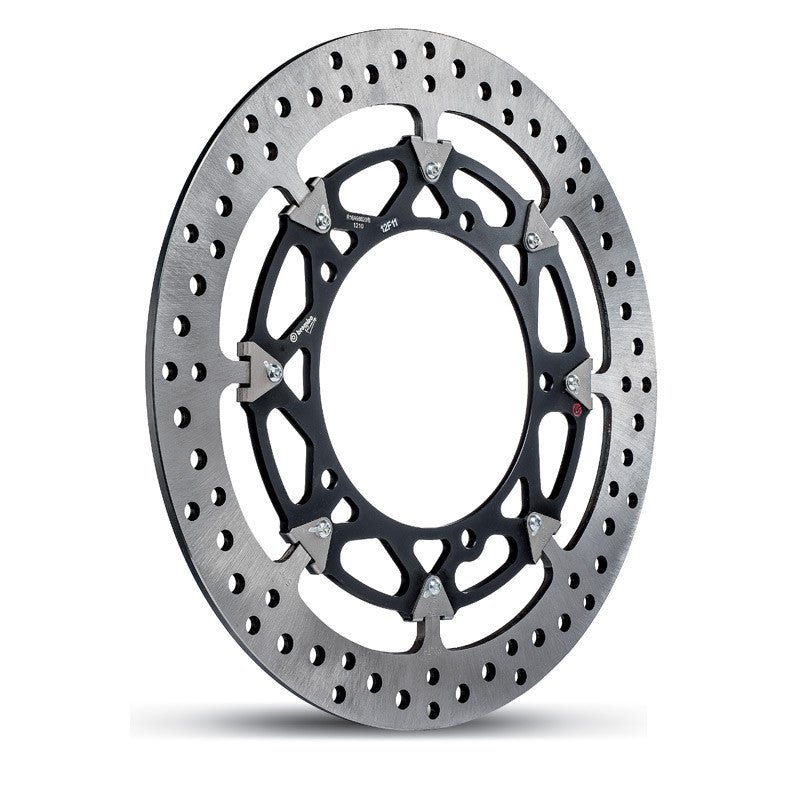

Brembo SSP T-Drive 5.5 320 mm Brake Disc Kit – Yamaha YZF-R6 2005-2016 (208A98521)

Drawn directly from Brembo's involvement at the highest levels of world championship racing, the SSP T-Drive 5.5 320 mm brake disc kit brings MotoGP and Superbike-derived hardware to the Yamaha YZF-R6. Engineered with the same materials and T-Drive floating mounting system trusted by factory race teams, this kit represents a genuine step up in both braking precision and overall feel — a statement of intent for riders who refuse to compromise.

Key Features

• T-Drive floating mount technology minimises rotational tolerances for more direct and consistent brake force transfer under repeated hard braking.
• Disc material specification mirrors that used in Brembo's Superbike and MotoGP World Championship programmes — durability and fade resistance in equal measure.
• At 5.5 mm thick across a 320 mm diameter rotor, the geometry is tuned for the YZF-R6's braking dynamics on both track and road.
• Slightly lighter than the SSP High-Performance disc range without any sacrifice in performance — rotational mass reduction you will feel at turn-in.
• Compatible with the YZF-R6's standard brake calipers as well as high-specification aftermarket calipers, including Brembo M4 monobloc units.
• A complete kit covering the front axle — no mix-and-match required for a matched braking system.

Design, Finish and Heritage

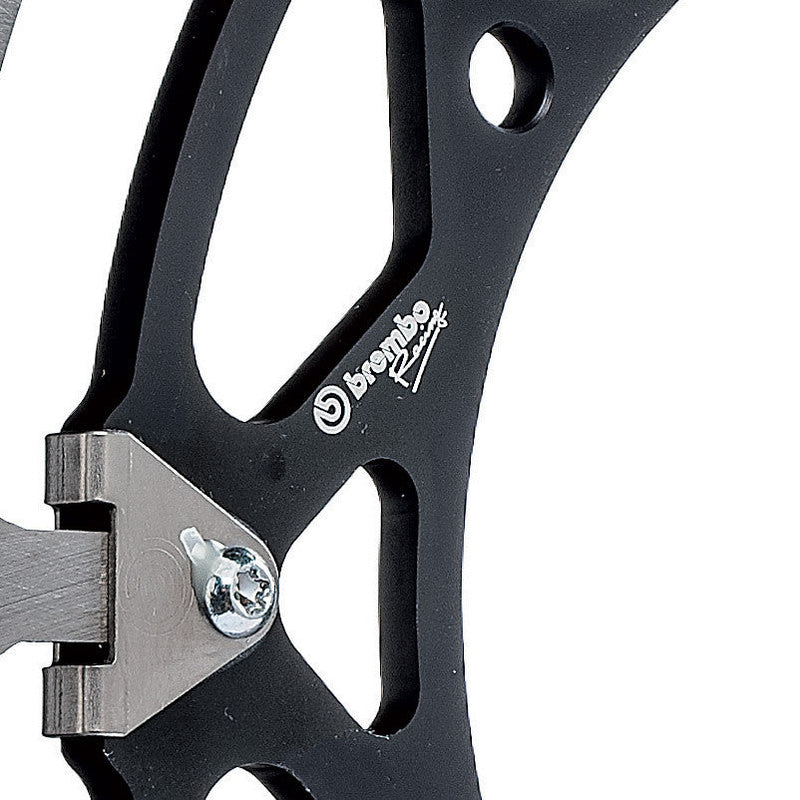

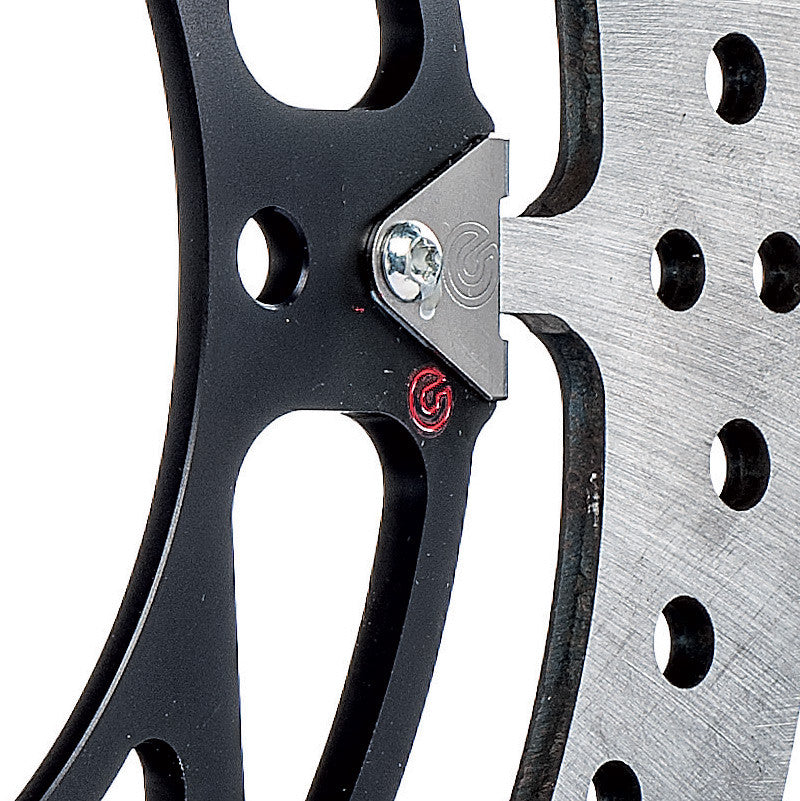

Brembo's SSP T-Drive line carries a visual identity that is unmistakably race-derived. The precision-machined aluminium carrier and floating disc construction give the kit the characteristic purposeful aesthetic of a component lifted straight from a World Supersport paddock. The T-Drive mounting pins — which give this generation of Brembo discs their name — are arranged with exacting symmetry and machined to tight tolerances, a finish quality that is evident even before the bike moves.

This heritage matters in practice as well as appearance. The floating design allows the disc to expand freely under heat without distorting the carrier, preserving brake feel across a full race session or an extended track day. It is the same principle refined over decades of competition that now arrives ready-fitted to the YZF-R6's original 320 mm fitment diameter, requiring no modification to fork legs or caliper mounts.

Performance on Road and Track

The SSP T-Drive kit is engineered to perform across the entire operating range of the YZF-R6 — from cold morning commutes where consistent initial bite matters, to the sustained heat cycles of a track day where fade resistance and pedal feel under repeated heavy braking define confidence. The 34 mm friction ring width and five-bolt, 150 mm hole-axis pattern are optimised for the R6's front-end geometry and caliper position across the full 2005 to 2016 model run.

Fitment and Compatibility

This kit is a direct fitment for the Yamaha YZF-R6 covering model years 2005 through 2016. It is designed to work with both the factory-fitted brake calipers and high-performance aftermarket calipers such as the Brembo M4 monobloc, with no modification required to the fork, wheel or axle assembly.

Specifications

• Disc diameter: 320 mm
• Inner ring diameter: 132 mm
• Hole axis diameter: 150 mm
• Number of bolt holes: 5
• Disc thickness: 5.5 mm
• Friction ring width: 34 mm
• Part number: 208A98521
