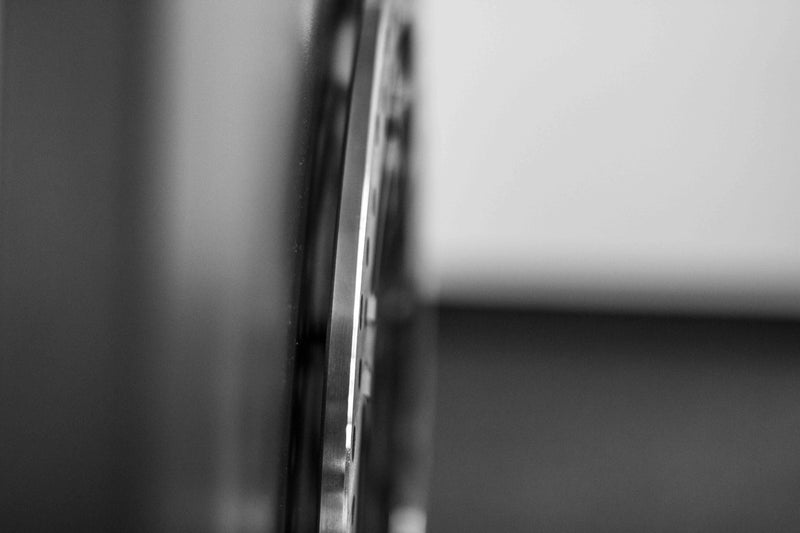

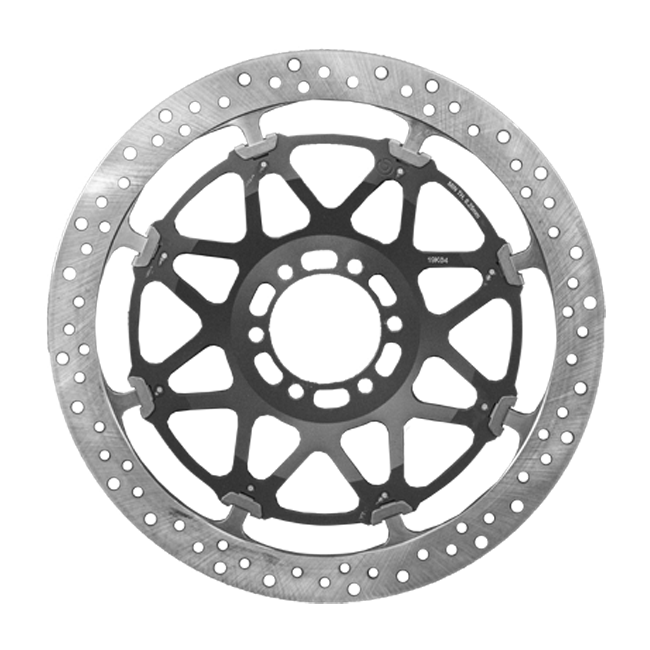

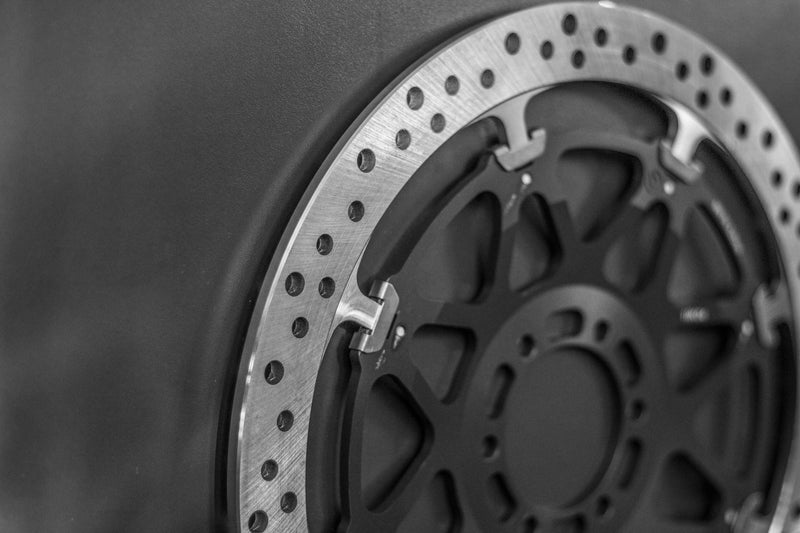

Brembo SBK T-Drive 6.75 Racing Brake Disc – Kawasaki ZX-10 RR (2017-2020) 08C86961

Engineered from the same inox racing steel that Brembo supplies to the WorldSBK, WorldSSP and MotoGP paddocks, the SBK T-Drive 6.75 Racing brake disc for the Kawasaki ZX-10 RR (2017-2020) represents the absolute pinnacle of braking hardware available to the privateer racer. Every material choice, every tolerance, every detail of its construction is a direct transfer from championship-winning machinery to your ZX-10 RR.

Key Features

• T-Drive floating mounting system machined to minimal tolerances for precise, rattle-free disc movement and maximally efficient brake force transfer under hard use
• 6.75 mm disc thickness in Brembo's proprietary inox racing alloy — the identical specification used in the Superbike World Championship, Supersport World Championship and MotoGP
• 320 mm disc diameter with a 30 mm friction ring width, delivering a large swept area for high-energy braking events on both circuit and road
• Full compatibility with Brembo Z04 brake pads, stock Kawasaki callipers, Brembo M4 monobloc callipers and other high-performance brake callipers
• Purpose-developed fitment for the Kawasaki ZX-10 RR (2017, 2018, 2019, 2020) — a direct, no-modification installation

Build Quality and Materials

The defining characteristic of the SBK T-Drive range is its inox racing steel friction ring. This is not a production-grade stainless alloy adapted for motorsport — it is the same compound Brembo formulates exclusively for its factory WorldSBK and MotoGP programmes. The material offers an exceptional combination of hardness, heat resistance and consistent bite, resisting the fade and surface glazing that afflict lesser discs when braking temperatures climb on circuit.

The T-Drive interface — the connection between the aluminium bell and the floating steel ring — is machined to tolerances tighter than those found on standard floating discs. The result is a disc that moves with precision under thermal expansion rather than slapping unpredictably, keeping pad contact geometry consistent and delivering the same pedal feel lap after lap. That consistency is what separates race-specification hardware from aftermarket performance parts.

On Track, On Road

Part number 08C86961 is classified as a Pista Bassa (low track) configuration, making it equally at home on a track day or a fast road ride. The 6.75 mm thickness sits at the heavier end of Brembo's SBK disc range, offering greater heat capacity for sustained hard braking sequences rather than the absolute minimum weight of a pure qualifying disc. Riders who spend extended sessions at a circuit — or who want uncompromised braking on demanding mountain roads — will find this specification offers the ideal balance of durability and outright performance.

Fitment and Compatibility

This brake disc is designed and validated for the following motorcycle:

• Kawasaki ZX-10 RR — model years 2017, 2018, 2019, 2020

Compatible brake pads: Brembo Z04 (recommended). Compatible callipers: OEM Kawasaki callipers, Brembo M4 monobloc, and other high-performance four-piston callipers with matching disc diameter.

Package contents: 1x Brembo SBK T-Drive Racing brake disc (part number 08C86961).
