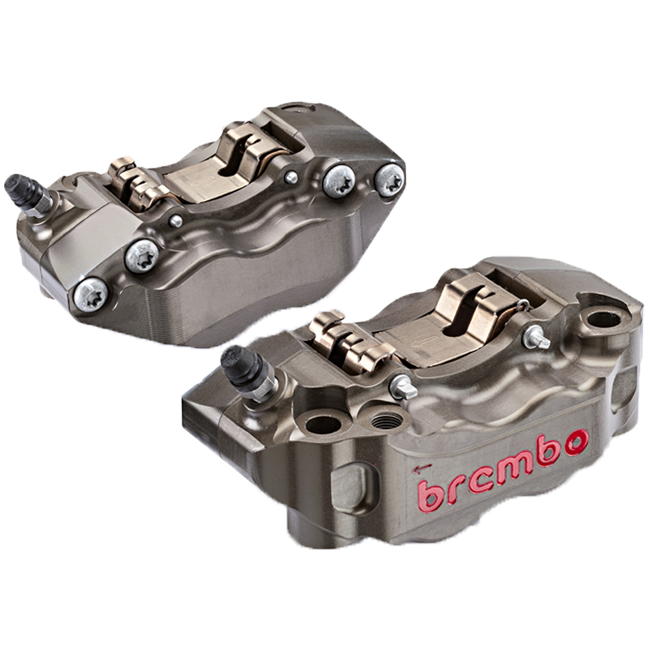

Brembo Radial CNC P4 30/34 Two-Piece Brake Caliper Kit 108mm – 220A01610

Few names carry the weight of Brembo's P4 30/34 on a pit-lane grid. Machined from solid aluminium billet in Brembo's own CNC facility and assembled as a race-purpose two-piece radial caliper, the P4 30/34 kit at 108 mm pitch represents the Italian manufacturer's heritage of supplying championship-winning teams distilled into a bolt-on package for serious track and racing use. The staggered four-piston layout — 30 mm leading, 34 mm trailing — is a signature Brembo engineering choice that delivers progressive, highly modulated braking force exactly where a rider demands it under hard trail-braking into a corner apex.

Key Features

• Two-piece CNC-machined aluminium caliper body — bolted construction combines rigidity with reduced unsprung weight for faster response at the lever
• Four-piston stagger (2x 30 mm and 2x 34 mm) for even pad-contact pressure, precise bite point and outstanding modulation under race conditions
• Radial mounting at 108 mm centre-to-centre pitch matches factory-spec mounting points on a wide range of supersport and superbike platforms
• Dual-sealed pistons engineered for repeated high-temperature cycling in race environments, resisting fade and fluid bypass
• Anti-vibration spring over the brake pads included, damping harmonic chatter and stabilising pad contact throughout the braking zone
• Complete kit ships with high-performance sintered brake pads (part number 07BB1973), ready to install at the track
• Compatible with DOT 4 and DOT 5.1 brake fluid — no special fluid required alongside the caliper upgrade

Design, Finish and Heritage

The P4 30/34 is one of Brembo's most recognisable caliper silhouettes — the design philosophy has informed decades of MotoGP and World Superbike hardware. The CNC finish is clean, angular and unmistakably purposeful, with the precise machined faces and drilled pad-pin bores that distinguish a genuine Brembo racing component from aftermarket alternatives. Part number 220A01610 is a current Brembo catalogue reference, ensuring you receive an authentic unit with correct tolerances and Brembo's production quality assurance.

The two-piece bolted architecture is not merely a weight-saving measure — it allows the outer and inner halves to flex fractionally under extreme load without introducing the flex that a poorly designed monoblock can mask at the lever. The result is a direct, unfiltered feel that experienced track riders recognise immediately when they first reach for the brakes at the end of a long straight.

Track Performance

Designed exclusively for motorsport and closed-circuit trackday use, the P4 30/34 is not road-type approved and must not be fitted to road-registered vehicles. On circuit it excels — the 108 mm radial pitch and offset of 22.5 mm suit a wide range of production-derived superbike brake disc carriers. The caliper accepts discs up to 6 mm thick (optimal operating thickness 5.5 mm) and is dimensioned for approximately 35 mm friction-ring disc diameters, making it compatible with many OE and aftermarket floating disc assemblies without modification.

Spare Parts and Accessories

Brembo's parts ecosystem for the P4 30/34 is well established. The following references are available separately to support ongoing race-season maintenance:

• Pin kit — part number 20394230
• Split pin for pad retaining pin — part number 05454218
• Spring plate over pads — part number 20225590
• Bleed screw — part number 05281228
• Dust cap for bleed screw — part number 05150210

Fitment and Compatibility

The 108 mm radial mount and 22.5 mm offset make this caliper kit a fit for a broad spectrum of high-performance motorcycles when used with the appropriate bracket and disc combination. Confirmed compatible platforms include:

• Honda CBR 600 RR, CBR 1000 RR, CBR 1000 RR-R
• Kawasaki ZX-6R, ZX-10R, ZX-10RR
• Suzuki GSX-R 600, GSX-R 750, GSX-R 1000
• Yamaha R1, R1M, R6, R7
• Ducati 848, 899, 959, 1199, 1199 S, 1199 R, 1299, 1299 S
• Aprilia RSV4, RSV4 R, RSV4 RR, RSV4 RF, RSV4 1100, RSV4 1100 Factory, RS 660, RS 457
• BMW S1000RR, HP4, HP4R, M1000RR
• Triumph Daytona 675, Daytona 675 R, Daytona 765, Daytona 765 Moto 2, Street Triple 765 R, Street Triple 765 RS
• MV Agusta F3, F4
• KTM RC 390, RC8 1190

Always verify the specific mounting pitch, offset and disc diameter for your application before ordering. Racing use only — not approved for road use.
