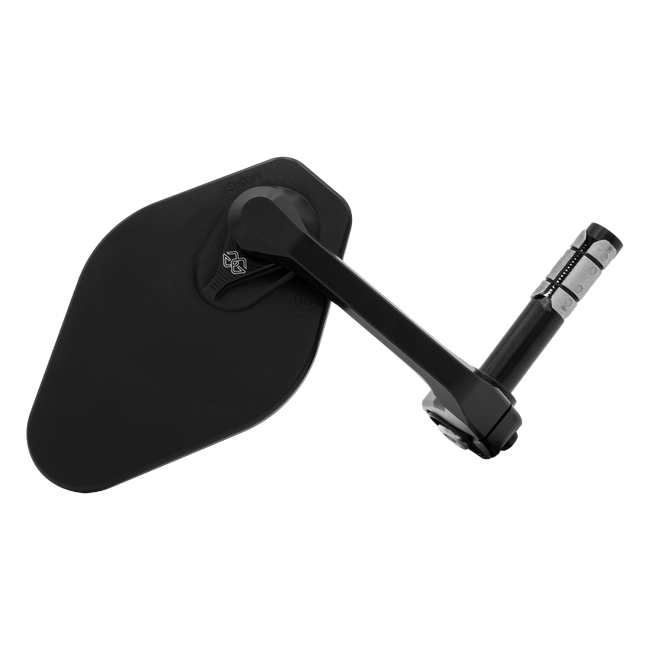

Gilles STRATOS bar-end mirror for Honda CB1000R⟲ 360° — drag me
02 · Data & docs

The facts.

Technical data
BrandGilles Tooling
SeriesSTRATOS
Part numberM03-01-BD
FunctionHandlebar-end rear-view mirror, replaces the original
MaterialCNC-machined aluminium, 190 g
GlassShaped, 132 x 84 mm, 6 mm
AdjustmentStepless, 20 degrees tilt and 180 degrees rotation
MountingExpanding clamp inside the handlebar, inner bore 13-18 mm
FitmentHonda CB1000R (2018–2026)
Road approvalEuropean type approval E1*81R00/02*0143 (UN R81)
DescriptionThe whole story▼

On a motorcycle built around visible engineering, the fasteners are part of the design. The CB1000R shows its frame, its single-sided swingarm and its machined details on purpose, and a moulded plastic stalk is the one thing on it that was not considered.

Key Features

  • One piece — fits the left or the right side
  • Shaped glass, 132 x 84 mm, 6 mm thick
  • Stepless adjustment: 20 degrees of tilt, 180 degrees of rotation
  • Universal clamp for inner bar bores from 13 to 18 mm
  • CNC-machined aluminium, matt black, 190 g
  • European type approval E1*81R00/02*0143

Where the Eye Already Goes

The handlebar ends sit in the front three-quarter view alongside the fork tops and the headlight, which is the angle this bike is photographed and looked at from. A machined component there belongs; an injection moulding does not.

Function Is Not Given Up for It

The glass is shaped rather than shrunk, 132 millimetres across, and the mount offers twenty degrees of tilt and a half-turn of rotation, both stepless.

One Part for Both Ends

Symmetrical.

Road Approval

Type-approved in Europe under UN Regulation 81 as E1*81R00/02*0143. The approval covers the mirror as a rear-view device for two- and three-wheeled vehicles, so it may be fitted to a road-registered machine without further paperwork.

Scope of Delivery

Supplied as one mirror. It is symmetrical, so the same part goes on either side of the handlebar — order one to replace a single mirror, or two for a pair.

Specifications

  • Brand: Gilles Tooling
  • Series: STRATOS
  • Part number: M03-01-BD
  • Function: Handlebar-end rear-view mirror, replaces the original
  • Material: CNC-machined aluminium, 190 g
  • Glass: Shaped, 132 x 84 mm, 6 mm
  • Adjustment: Stepless, 20 degrees tilt and 180 degrees rotation
  • Mounting: Expanding clamp inside the handlebar, inner bore 13-18 mm
  • Fitment: Honda CB1000R (2018–2026)
  • Road approval: European type approval E1*81R00/02*0143 (UN R81)
What's includedEverything in the box▼
  • 1x Gilles STRATOS bar-end mirror with clamp, matt black
FitmentWhich bikes this fits▼
  • Honda CB1000R (2018–2026)
