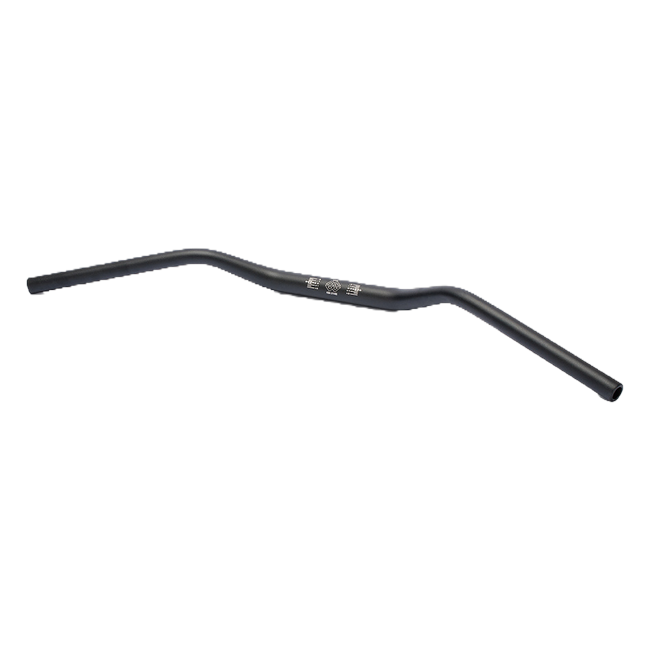

Gilles GTO-L black handlebar for Yamaha MT-09⟲ 360° — drag me
02 · Data & docs

The facts.

Technical data
BrandGilles Tooling
SeriesGTO-L
Part numberGTO-L-B (black), GTO-L-G (gold)
TypeTapered tubular handlebar
Material6082-T6 aluminium, anodised
Clamping diameter28.6 mm, tapered
Dimensions755 mm wide, 86 mm rise, 94 mm pullback at 24°
Clamping width140 mm
FitmentYamaha MT-09 (2013–2020)
Road approvalABE No. KBA 91440 (original clamps or 2DGT)
DescriptionThe whole story▼

The MT-09 of 2013 to 2020 made Yamaha's crossplane triple famous: light, strong and full of character. The GTO-L tapered handlebar for the Yamaha MT-09 of those years is a 755 mm wide aluminium bar with an 86 mm rise, in black or gold anodised finish.

Key Features

  • 140 mm clamping width in the centre section
  • Alignment marks and the approval mark engraved in the centre
  • 14.2 mm inner tube diameter, relevant for bar-end weights
  • Tapered handlebar with a 28.6 mm clamping diameter
  • Black or gold anodised finish, high rigidity
  • Road legal in Germany under ABE No. KBA 91440, original clamps or 2DGT risers

Control over a lively triple

The MT-09 is quick to lift its front wheel and responds sharply to the throttle. A stiff, wide bar lets you hold it calmly and steer precisely, and it transmits clear feedback from the front tyre.

Both generations

The ABE lists the RN29 bikes of 2013 to 2016 and the RN43 bikes from 2017 for the GTO-L, in the standard clamps or in Gilles 2DGT risers. No inspection is needed for either setup.

Road Approval

German road approval for the Yamaha MT-09: ABE No. KBA 91440. The GTO-L may sit in the original clamps, or in Gilles 2DGT risers if you want to change the position; with shims the ABE permits up to 20 mm of extra height. No examiner, no entry, just the printed certificate with the documents.

Scope of Delivery

The package holds the GTO-L handlebar in the colour you select, nothing more. Your grips, bar ends and switch units carry over from the original bar.

Specifications

  • Brand: Gilles Tooling
  • Series: GTO-L
  • Part number: GTO-L-B (black), GTO-L-G (gold)
  • Type: Tapered tubular handlebar
  • Material: 6082-T6 aluminium, anodised
  • Clamping diameter: 28.6 mm, tapered
  • Dimensions: 755 mm wide, 86 mm rise, 94 mm pullback at 24°
  • Clamping width: 140 mm
  • Fitment: Yamaha MT-09 (2013–2020)
  • Road approval: ABE No. KBA 91440 (original clamps or 2DGT)
What's includedEverything in the box▼
  • 1x Gilles GTO-L tapered handlebar (black or gold)
DownloadsCertificate▼
ABE certificatePDF

Carry a printed copy of the ABE certificate when riding on German roads.

FitmentWhich bikes this fits▼
  • Yamaha MT-09 (2013–2020)
