The facts.
| Brand | Öhlins |
|---|---|
| Part Number | 08789-32 |
| Spring Rate | 3.2 N/mm |
| Free Length | 423 mm |
| Inner Diameter | 38.2 mm |
| Packaging Unit | Pair |
| Country of Origin | Sweden |
DescriptionThe whole story▼

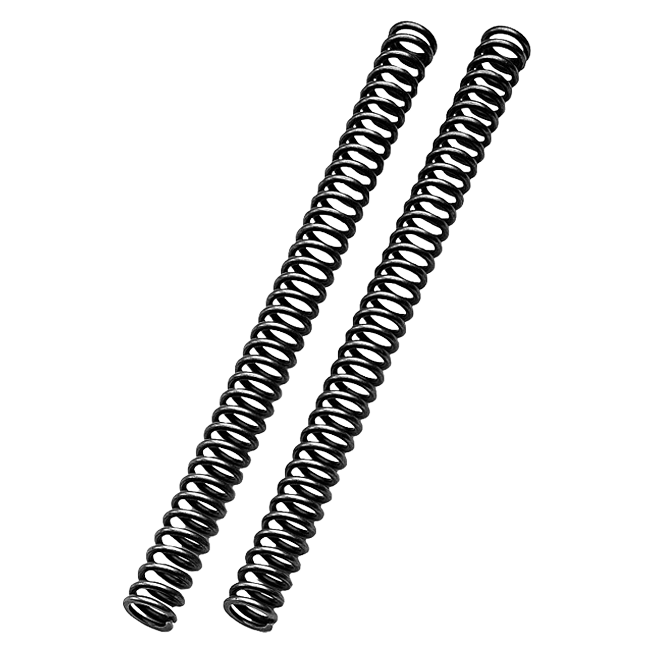

Öhlins part number 08789-32 is a pair of fork springs rated at 3.2 N/mm, 423 mm long with a 38.2 mm inner diameter. This is the change a suspension technician makes first, before touching a single click.
Key Features
- Inner diameter 38.2 mm
- Measured spring rate 3.2 N/mm
- Supplied as a pair
- Free length 423 mm
- Öhlins part number 08789-32
Manufacture and Tolerance
Service parts stay available for years after a part number leaves the current price list. Materials read unremarkably on paper — aluminium, steel, nitrogen — and the difference lies in how precisely they are made. Machining, anodising, assembly and testing all happen in the same building rather than across a supply chain.
The Numbers That Matter
Free length 423 mm, inner diameter 38.2 mm, rate 3.2 N/mm — those three figures define the part completely.
Where This Rate Belongs
A rate this low belongs on a long-travel machine or under a light rider — it lets the fork use its full stroke instead of riding high and skating over the surface. Öhlins goes this soft only where the linkage ratio or the rider weight genuinely calls for it. At this rate the fork sits deep in its travel under load, which is exactly what a long-travel chassis is designed around. Road surfaces are the hardest test of a spring rate, because the fork has to cope with both a smooth stretch and a broken one.
Applications
Selection is by measurement. If the diameter and free length match your fork, the remaining question is the rate. If you are replacing a sagged original, measure its free length first — a tired spring often measures several millimetres short. Öhlins offers rates in defined steps so a change can be made in one direction at a time rather than by guesswork.
What Fitting Involves
Oil level is measured from the top of the tube with the fork compressed and the spring removed. The job needs no special tools beyond a fork spring compressor and a measuring rod for the oil level. Springs are supplied ready to fit; no cutting, grinding or packing is needed.
Road Approval
Road approval: no separate certificate. The spring changes the rate, not the construction of the fork, and is treated as a service part.
Fitting and Setup Service
Öhlins suspension rewards careful fitting. We recommend having the work done by an authorised Öhlins service centre — and we are one ourselves: we fit, service and set up Öhlins components in house. If you would like us to handle the installation, just ask and we will quote it with the order.
Specifications
- Brand: Öhlins
- Part Number: 08789-32
- Spring Rate: 3.2 N/mm
- Free Length: 423 mm
- Inner Diameter: 38.2 mm
- Packaging Unit: Pair
- Country of Origin: Sweden
