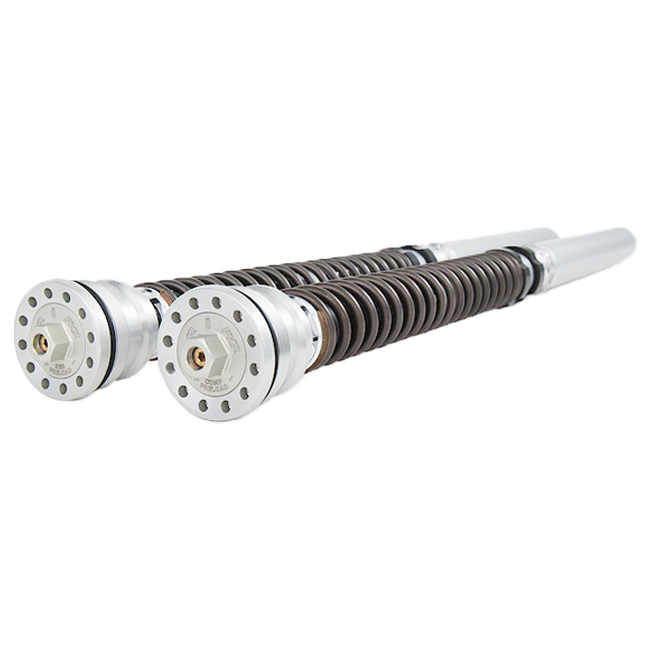

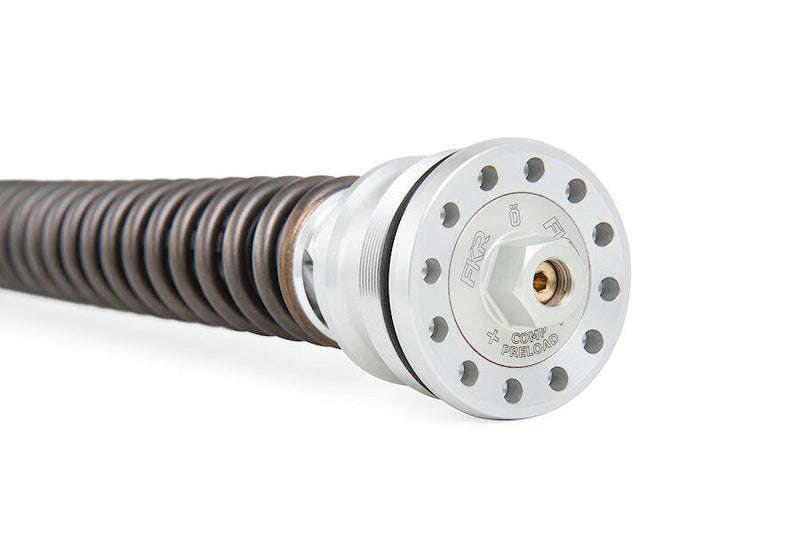

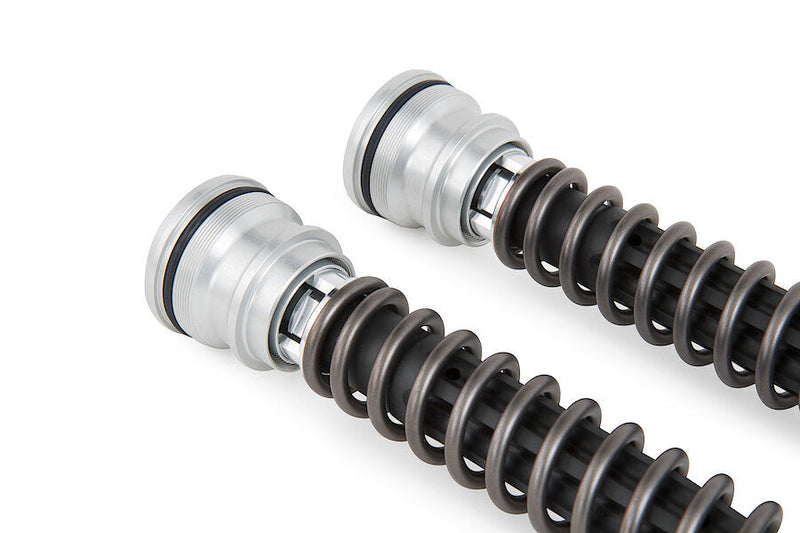

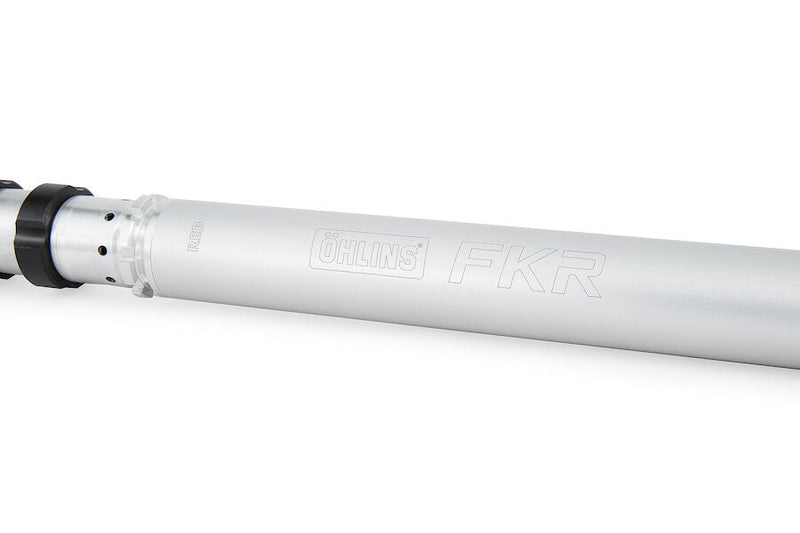

Öhlins FKR Cartridge Kit Racing TTX 25 FKR 108 – Ducati Panigale 1199 S/R (2012–2017)

Built exclusively for track use, the Öhlins FKR Cartridge Kit Racing (TTX 25) FKR 108 is a motorsport-grade fork upgrade engineered specifically for the Ducati Panigale 1199 S and 1199 R. As a dedicated racing product, it is not homologated for public road use — every design decision has been made in pursuit of lap-time performance, consistent damping behaviour, and trackside serviceability.

Key Features

• Closed-cartridge TTX system pressurised by a spring rather than gas, eliminating pressure loss through leaks and delivering consistent performance across an entire race session.
• Newly developed piston paired with an 8 mm piston rod reduces internal pressure, producing a faster initial response and a genuinely linear damping curve.
• Linear damping characteristic measurably improves front-end traction and chassis stability under hard braking and through fast direction changes.
• 120 mm stroke cartridge supplied with three spring rates — 9.0, 9.5, and 10.0 N/mm — allowing precise setup for rider weight, tyre compound, and circuit characteristics.
• Simpler architecture than conventional gas-pressure systems makes trackside adjustment and workshop servicing significantly more straightforward.
• Designed for the Öhlins FG 925 fork unit fitted to the Panigale 1199 S/R, ensuring dimensional accuracy and optimal function.

TTX Technology and Closed-System Design

Traditional cartridge systems rely on gas pressure to keep the damping fluid aerated and responsive. Öhlins' TTX approach replaces that gas charge with a preloaded spring inside a sealed cartridge. The result is an architecture that cannot lose pressure through micro-leaks — a failure mode that can degrade conventional systems progressively over a race weekend without the rider ever noticing. With the TTX 25 cartridge, the damping force remains exactly where it was set, lap after lap.

The 8 mm piston rod, combined with the newly developed TTX piston, lowers working pressure throughout the stroke. Lower pressure means the fork responds more quickly to small inputs — the kind of surface irregularities and subtle chassis movements that determine how confidently a rider can carry corner speed. The linear output of the system also makes suspension tuning more predictable: a change in compression or rebound adjustment produces a proportional, readable change in feel rather than the non-linear response that can frustrate setup work with simpler cartridges.

Track Use and Professional Installation

The FKR 108 is a motorsport component. It carries no road-use homologation and must only be used on closed racing circuits. Installation requires dedicated Öhlins special tools and a working knowledge of high-performance fork service procedures. Öhlins strongly recommends that fitting is carried out by an authorised Öhlins service workshop. An installation manual is included in the package to support qualified technicians.

Fitment and Compatibility

• Ducati Panigale 1199 R (2012–2017) — track use only
• Ducati Panigale 1199 S (2012–2017) — track use only
• Compatible with models equipped with the Öhlins fork FG 925
