K-Tech DDS Closed Cartridge Kit for Kawasaki ZX-6R 2009–2019
02 · Data & docs

The facts.

Technical data
BrandK-Tech
Part number155-011-150-010
FitmentKawasaki ZX-6R 2009–2019
Spring series36-260
Piston diameter20 mm
Control valve diameter31 mm
Piston rod outer diameter8 mm
Compression adjustment30-way click (recommended: 16 clicks)
Rebound adjustment30-way click (recommended: 18 clicks)
Preload adjustment range18 mm (recommended: 10 mm)
DescriptionThe whole story▼

Developed with lessons drawn from the British Superbike Championship and the Isle of Man TT, the K-Tech DDS Closed Cartridge Kit transforms the standard fork on the Kawasaki ZX-6R (2009–2019) into a genuinely race-bred suspension assembly. The Direct Damping System architecture, pressurised cartridge design and precision-machined internals represent a level of engineering refinement that is immediately felt through the first corner.

Key Features

  • 30-way independently adjustable compression and rebound damping for tailored setup across road and track conditions
  • Patented DDS (Direct Damping System) technology actively prevents cavitation, ensuring consistent, fade-free damping performance
  • Asymmetric damping circuits work independently of one another, sharpening response and reducing lag between rider input and fork reaction
  • 20 mm piston promotes optimised oil flow through the 31 mm control valves for smooth, progressive damping throughout the stroke
  • 8 mm piston rod minimises system offset and contributes to more linear, predictable fork behaviour
  • 18 mm preload adjustment range allows precise spring-rate fine-tuning without removing the forks
  • Increased stroke over the standard cartridge, improving suspension travel and expanding the setup window

Design, Finish and Heritage

K-Tech's closed cartridge units carry a design philosophy refined over years of competition at the highest levels of British and international road racing. Every component reflects that heritage: the pressurised cartridge body is manufactured to exacting tolerances, the anodised finish is built to withstand workshop abuse and track vibration alike, and the assembly sits neatly within the original ZX-6R fork legs without modification to the chassis. This is not an aftermarket approximation of race suspension — it is the same category of hardware used by professional teams, adapted and validated for the specific fork geometry of the 2009–2019 ZX-6R.

Performance on Road and Track

The 36-260 spring series supplied with the kit is matched to the ZX-6R's fork dimensions, and the recommended baseline settings — 16 compression clicks, 18 rebound clicks, 10 mm preload — give an immediately usable starting point whether the bike is heading for a trackday or a long-distance road session. From that baseline, the 30-way click range is wide enough to cover a fast lightweight rider on a smooth circuit and a heavier rider on a bumpy A-road with room to spare. The independent damping circuits mean compression and rebound can be dialled without the adjustments interfering with one another, making setup methodical rather than iterative guesswork.

Cavitation — the formation of vapour bubbles in fork oil under high-speed damping loads — is the primary cause of inconsistent fork feel during hard braking and mid-corner compressions. K-Tech's patented pressurised system eliminates the conditions that allow cavitation to develop, so the fork delivers the same response on lap one as it does on lap thirty.

Fitment and Compatibility

This closed cartridge kit is designed as a direct replacement for the standard cartridge in the Kawasaki ZX-6R fork. No chassis modification is required. Confirmed fitment:

  • Kawasaki ZX-6R — model years 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019

Installation must be carried out by an authorised K-Tech Service Centre to ensure correct assembly, safety and warranty validity.

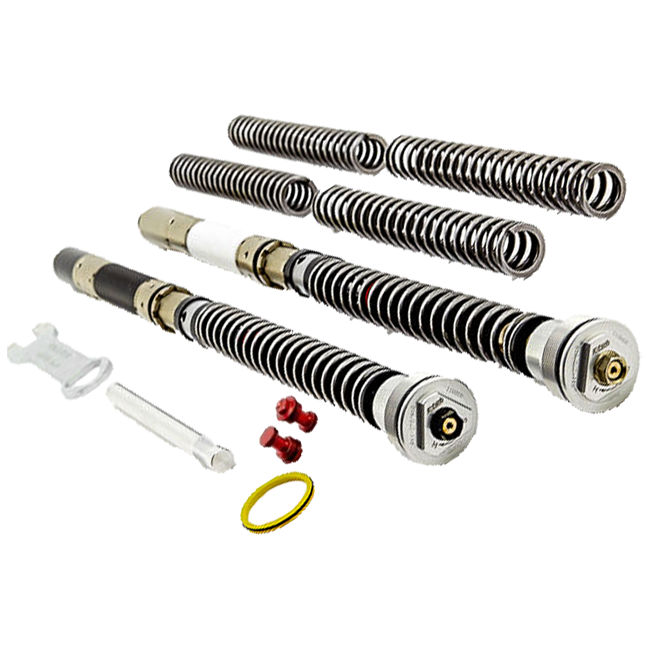

What's Included

  • K-Tech DDS Closed Cartridge Kit (pair)
  • 3 pairs of springs for individual setup optimisation
  • Specialist tools for straightforward cartridge exchange

Specifications

Attribute Detail
Part number 155-011-150-010
Spring series 36-260
Inner diameter 20 mm / 32 mm
Outer diameter (piston rod) 8 mm
Piston size 20 mm
Control valve diameter 31 mm
Compression adjustment 30-way click, recommended baseline 16 clicks
Rebound adjustment 30-way click, recommended baseline 18 clicks
Preload adjustment 18 mm range, recommended baseline 10 mm
Fitment Kawasaki ZX-6R 2009–2019
What's includedEverything in the box▼
  • 3 pairs of springs for individual setup optimisation
  • Specialist tools for cartridge exchange
FitmentWhich bikes this fits▼
  • Kawasaki ZX-6R (2009–2019)
