The facts.
| Part Number | 220A88510 |
|---|---|
| Caliper Type | Monoblock, cast |
| Piston Count | 4 (radial arrangement) |
| Piston Diameter | 30 mm |
| Radial Mounting Pitch | 100 mm |
| Offset | 30 mm |
| Friction Ring Width | 34 mm |
| Maximum Disc Thickness | 6 mm (optimal: 5.5 mm) |
| Brake Fluid Compatibility | DOT 4 and DOT 5.1 |
| Piston Sealing | Dual-sealed, road-optimised |
DescriptionThe whole story▼

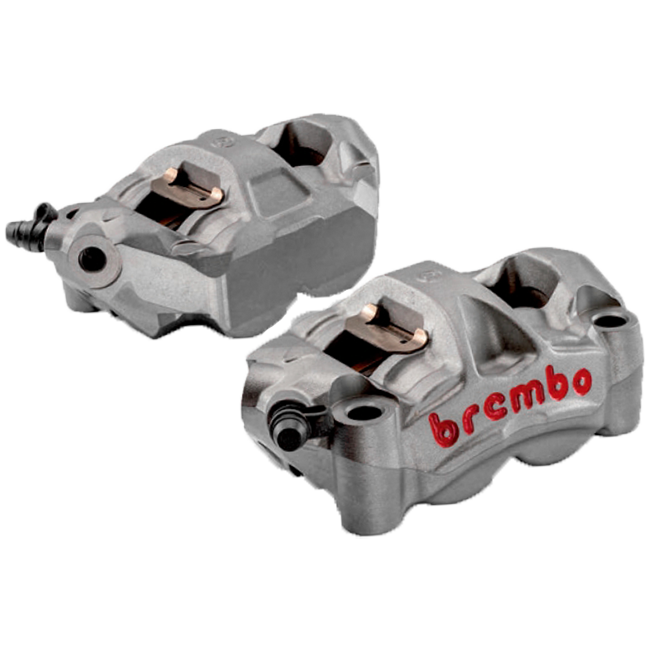

When your riding demands stopping power that meets OEM certification standards, the Brembo Radial M50 Monoblock Brake Caliper Kit (100mm, part no. 220A88510) delivers. Chosen as standard equipment on the Ducati Panigale V4, this cast monoblock caliper represents one of the highest-specification OEM braking systems available — engineered to rigorous Brembo quality benchmarks and optimised equally for demanding road use and occasional track days.
Key Features
- Cast monoblock construction — a single machined body eliminates flex and delivers consistent, predictable braking feel across the entire operating range.
- OEM-grade engineering — fitted as standard on the Ducati Panigale V4, confirming this caliper satisfies the most exacting manufacturer safety and performance requirements.
- More compact and lighter than the Brembo M4 Monoblock, with an optimised design that improves both braking performance and heat dissipation.
- 4-piston system with 30 mm piston diameter on each side, providing precise, progressive modulation under hard braking.
- Dual-sealed pistons, specifically optimised for road use to prevent contamination and extend service life.
- Compatible with DOT 4 and DOT 5.1 brake fluid, ensuring broad compatibility with existing brake system components.
- Supplied complete with high-performance sintered brake pads (part no. 07BB3793) — a ready-to-fit kit with no additional purchases required.
Engineering and Build Quality
The M50 Monoblock caliper body is cast as one piece, meaning there are no joint faces between the two caliper halves to introduce compliance under load. Compared to the well-regarded Brembo M4 Monoblock, the M50 achieves a further reduction in both weight and envelope size, making it an ideal upgrade or direct replacement where packaging space is critical. The four 30 mm pistons are arranged radially and sealed with a dual-sealing system that keeps road grime and moisture away from the piston bores — a detail that matters particularly on machines that see year-round road use rather than dry-day track duty only.
Maximum disc thickness compatibility is 6 mm (optimal running clearance at 5.5 mm), and the caliper is designed for a 34 mm friction ring width on standard discs. The 30 mm offset and 100 mm radial mounting pitch are the defining fitment parameters you should verify against your specific bracket or OEM mounting arrangement before ordering.
Road and Track Use
The M50 kit is suited to sportsbike riders who want the confidence of a certified, manufacturer-validated braking system for everyday road riding, with the performance headroom to handle occasional circuit sessions. Please note: this kit is currently supplied without a TÜV type-approval certificate. Riders in markets where aftermarket brake components require individual registration or homologation should verify local requirements before fitting.
Compatible Spare Parts and Accessories
Brembo lists the following service parts for the M50 caliper:
- Pad retaining spring plate — part no. 120225579
- Bleed screw — part no. 05338752
- Bleed screw dust cap — part no. 05150220
Fitment and Compatibility
The Brembo M50 Monoblock Kit with 100 mm radial spacing is compatible with a wide range of current and recent supersport and superbike platforms, including but not limited to:
- Ducati Panigale V4, V4 S, V4 R — 1199, 1299, 848, 899, 959 series
- Aprilia RSV4, RSV4 R, RSV4 RR, RSV4 RF, RSV4 1100, RSV4 1100 Factory, RS 660
- BMW S1000RR, M1000RR, HP4, HP4R
- KTM RC8 1190, RC 390
- Honda CBR 1000 RR, CBR 1000 RR-R, CBR 600 RR
- Yamaha R1, R1M, R6, R7, R9
- Suzuki GSX-R 1000, GSX-R 750, GSX-R 600
- Kawasaki ZX-10 R, ZX-10 RR, ZX-6R, ZX-4 RR, Ninja 400
- Triumph Daytona 675, Daytona 675 R, Daytona 765, Daytona 765 Moto 2, Street Triple 765 R, Street Triple 765 RS
- MV Agusta F3, F4
- Bimota KB998 Rimini
Always confirm the specific year range, mounting offset and bracket compatibility for your exact model before fitting. Consult your workshop manual or contact Inter-Pace for fitment advice.
Specifications
- Part number: 220A88510
- Caliper type: Monoblock, cast
- Piston count: 4 (radial arrangement)
- Piston diameter: 30 mm (each)
- Radial mounting pitch: 100 mm
- Offset: 30 mm
- Friction ring width (disc): 34 mm
- Maximum disc thickness: 6 mm (optimal: 5.5 mm)
- Brake fluid compatibility: DOT 4 and DOT 5.1
- Piston sealing: dual-sealed, road-optimised
- Included brake pads: sintered high-performance, part no. 07BB3793
- Homologation: currently without TÜV certificate
What's includedEverything in the box▼
- 1x Brembo M50 brake caliper kit (pair)
- 1x set of high-performance sintered brake pads (part no. 07BB3793)
FitmentWhich bikes this fits▼
Universal product — Please check whether it fits your bike.
