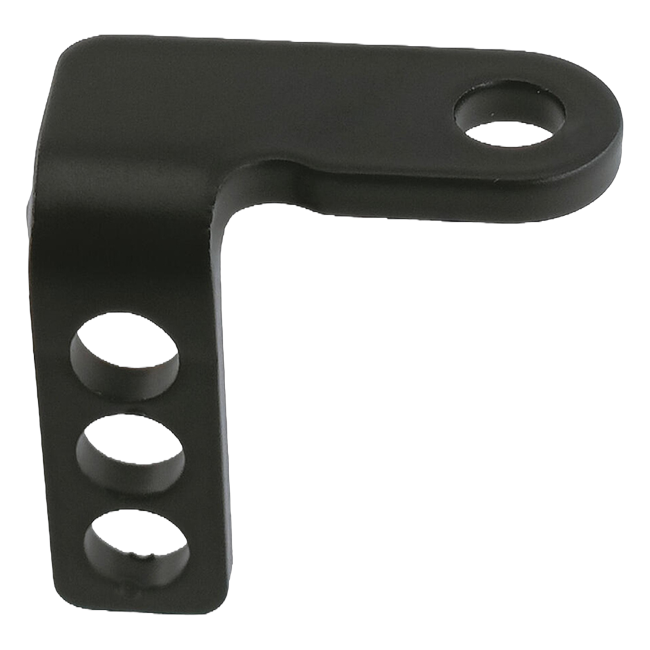

LighTech OBT009 reservoir bracket in black for Honda CBR500R – product view
10 g
02 · Data & docs

The facts.

Technical data
BrandLighTech
Part numberOBT009
TypeReservoir bracket, rear
Height28.9 mm
Projection31 mm
MaterialAnodised aluminium
FinishBlack only
Fits reservoirsOBT001, OBT006, OBT007
Weight10 g
FitmentHonda CBR500R (2015 to 2026)
DescriptionThe whole story▼

Fitting a billet tank to a CBR500R starts with deciding where it goes. The OBT009 sets the reservoir position on the CBR500R at 28.9 mm and 31 mm. LighTech makes the OBT009 in black only. It is among the least expensive visible changes you can make to a CBR500R.

Key Features

  • It is the cheapest visible change on a CBR500R
  • Made in Italy
  • 10 g on the CBR500R
  • Decides where the reservoir ends up on the CBR500R
  • Laser-marked with the LighTech logo
  • 28.9 mm in height, 31 mm of projection

Compatibility

LighTech lists the OBT009 for the Honda CBR500R. It is an adaptable bracket, not a Honda part — measure the space on the CBR500R first.

Choosing Front or Rear

Position decides whether the hose runs clean or kinks on a CBR500R. Black anodised aluminium at 10 g, which is all the OBT009 needs to be. It fits the LighTech reservoirs OBT001, OBT006 and OBT007 and is sold without any of them.

In the Workshop

Allow half an hour on the CBR500R including bleeding. Mount it so the reservoir sits above the master cylinder on the CBR500R, never below. Everything removed from the CBR500R can go straight back on.

Care and Checks

Vibration finds every loose fastener on the CBR500R eventually. Beyond that the OBT009 asks nothing of you.

Scope of Delivery

The OBT009 is supplied as a single bracket with its fasteners. Spares are listed under their own numbers rather than bundled.

The Second Part Number

LighTech sells this mount on its own. The tank — OBT001, OBT006 or OBT007 — is a separate article. Ask us and we will pair it with the right reservoir for your CBR500R.

Brake System and Road Approval

What looks like a cosmetic swap on the CBR500R is a change to a safety system. We list the OBT009 without an approval claim because LighTech issues none. Road use on the CBR500R means two steps: clarify it beforehand, test it afterwards.

Technical Data

  • Brand: LighTech
  • Part number: OBT009
  • Type: Reservoir bracket, rear
  • Height: 28.9 mm
  • Projection: 31 mm
  • Material: Anodised aluminium
  • Finish: Black only
  • Fits reservoirs: OBT001, OBT006, OBT007
  • Weight: 10 g
  • Fitment: Honda CBR500R (2016 to 2026)
FitmentWhich bikes this fits▼
  • Honda CBR500R (2015 to 2026)
