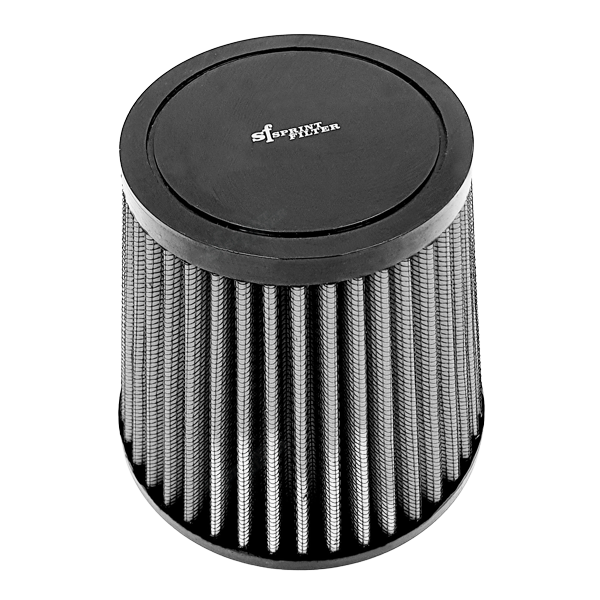

Sprint Filter T12 Air Filter for Off-Road & Extreme – Harley-Davidson PAN America / Special (2020–2026) CM226T12

Sprint Filter lists exactly one element for the PAN America's airbox, and it is the extreme one. There is no standard weave for this housing in the range, no 14-micron mat, no racing version — the catalogue offers the 7-micron nonwoven and nothing else. That single fact should shape the decision more than any specification below it: this is a dust filter for an adventure bike, and it is not a general-purpose upgrade dressed as one.

Key Features

• Dry special nonwoven filtering at 7 microns, the finest medium Sprint Filter makes
• Rated flow of 560 l/m²/sec, with the load held through the depth of the mat
• No oil in the specification — dry on delivery, dry again after cleaning
• Direct replacement in the standard PAN America airbox: no cutting, no adapter, no remap
• Fits the PAN America and the Special of 2020 to 2026 alike
• Cleaned and refitted rather than replaced, with two years of warranty from purchase

A range of one

Most housings in this catalogue are offered two, three or four media, and the choice between them is the substance of the purchase. Here there is no choice to make, only a question to answer: does this bike see dust as a working condition? A 1250 adventure twin is bought by riders who intend it to, and a good number of them will genuinely ride gravel, piste and dry unsealed roads where suspended mineral dust is present continuously rather than in bursts. That is the case this element is drawn for.

What the fine mat costs

Seven microns filters through the thickness of the material rather than at a surface, which is what allows a mat this fine to hold a serious quantity of dust before it matters. The price is flow: 560 l/m²/sec is a small number next to a conventional performance element, and it is paid on the motorway approach as much as on the piste. Riders who spend almost all their year on tarmac are better served by the standard filter their machine came with. And nothing here is power — in an unmodified airbox the CM226T12 leaves a standard PAN America exactly as strong as it was.

Care and cleaning

Compressed air on the clean face, worked outwards, is the routine service; a nonwoven releases its load slowly, so this is a job for patience rather than pressure. After genuinely dirty use, lukewarm water with a mild detergent takes what air will not, rinsed until the runoff is clear. Drying is done in moving air at room temperature and by nothing else — heat guns, radiators and flames destroy the mat invisibly. It is refitted dry, with nothing sprayed on it. Sprint Filter's maintenance sheet is in the Downloads tab.

Fitment & Compatibility

Made for the Harley-Davidson PAN America and PAN America Special of 2020–2026, seated in the series airbox without modification. This is the only Sprint Filter medium listed for this housing. Check your build year in the Fitment tab.
