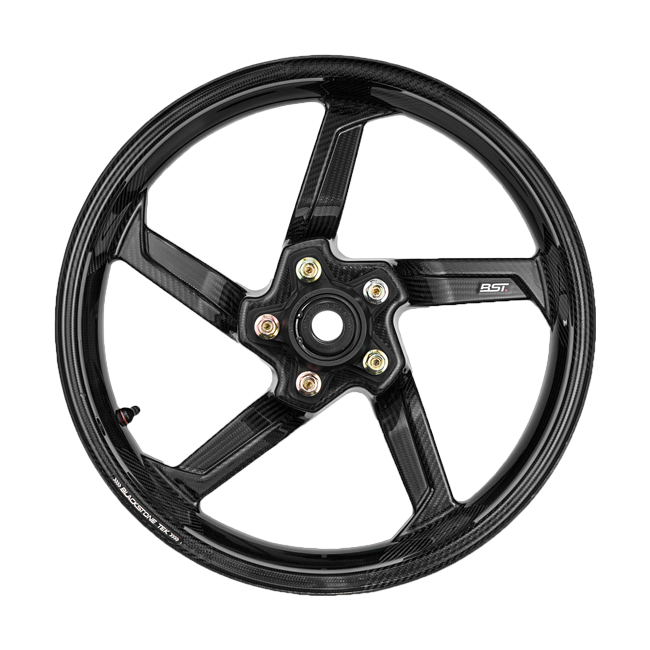

BST STAR TEK carbon rear wheel for Yamaha YZF-R1/M RN32 RN49 RN65 2015-2026
360° — drag me
2.2–2.75 k g
02 · Data & docs

The facts.

Technical data
Size6.0" x 17"
Weightapprox. 2.2–2.75 kg (depending on specification)
ConstructionMonocoque Prepreg carbon (CRBNX technology)
SpiderBST Ultra-High-Speed aluminium
Maximum load rating280 kg
Bearing optionsSteel or ceramic
CertificationsTÜV-approved, JASO-compliant, ISO-certified, CT-scanned
Warranty2 years
FitmentYamaha YZF-R1/M RN32 (2015–2019), RN49 (2020–2023), RN65 (2024–2026)
DescriptionThe whole story

When milliseconds separate podium finishes from also-rans, reducing rotating mass at the rear wheel is one of the highest-value upgrades you can make to a Yamaha YZF-R1 or R1M. The BST STAR TEK carbon rear wheel slashes unsprung and rotational weight through a full monocoque Prepreg-carbon construction paired with the BST Ultra-High-Speed aluminium spider — delivering explosive drive out of corners, sharper deceleration and a level of chassis agility that no aluminium rim can match.

Key Features

  • Dramatically reduced rotating mass: monocoque Prepreg-carbon shell cuts rear wheel weight to approximately 2.2–2.75 kg depending on specification, transforming acceleration and braking response.
  • CRBNX carbon technology combined with the BST Ultra-High-Speed aluminium spider provides uncompromising stiffness and lateral stability at race speeds.
  • TÜV-approved and JASO-compliant: every wheel is CT-scanned, individually certified and ISO-quality-assured before it leaves the factory.
  • Rated to a maximum load of 280 kg — engineered for the demands of both road and track use.
  • Wide finish choice: standard gloss exposed carbon, satin, matte, Forged-Carbon finish, seven Solid colours (White, Red, Blue, Green, Orange, Silver) and seven Candy colours.
  • Two-year manufacturer warranty included as standard.

Engineering & Build Quality

BST constructs each STAR TEK wheel as a single monocoque unit in high-strength Prepreg carbon. Unlike hybrid designs that bond separate carbon and alloy sections, the monocoque shell eliminates joint stress concentrations and keeps the structure as light and stiff as the material allows. CRBNX technology — BST's proprietary carbon layup programme — optimises fibre orientation specifically for the torsional and radial loads a rear wheel encounters under hard acceleration, braking and lean. The aluminium spider is machined to Ultra-High-Speed tolerances, ensuring perfect rotational balance straight out of the box.

Safety & Testing

BST subjects every STAR TEK wheel to a testing regime that goes well beyond road-legal minima. Each unit passes 1,000,000 cycles of combined bending and torsion tests, 6,000 km of radial load endurance, and a radial impact test with retained air pressure validation. A 100% visual inspection is followed by a CT scan of each individual wheel — meaning no internal voids, delaminations or anomalies can reach the customer. The result is a wheel that carries TÜV approval and meets JASO standards with confidence.

Fitment & Compatibility

This rear wheel is a direct-fit replacement for the following Yamaha models:

  • Yamaha YZF-R1 RN32 (2015–2019)
  • Yamaha YZF-R1M RN32 (2015–2019)
  • Yamaha YZF-R1 RN49 (2020–2023)
  • Yamaha YZF-R1M RN49 (2020–2023)
  • Yamaha YZF-R1 RN65 (2024–2026)
  • Yamaha YZF-R1M RN65 (2024–2026)

Available with steel bearings or ceramic bearings — select your preference at checkout. If you are unsure which bearing specification suits your use case, our team is happy to advise.

Specifications

Specification Detail
Size 6.0" x 17"
Weight approx. 2.2–2.75 kg (depending on specification)
Construction Monocoque Prepreg carbon (CRBNX technology)
Spider BST Ultra-High-Speed aluminium
Maximum load rating 280 kg
Finish options Gloss, Satin-Matte, Forged-Carbon, Solid (5 colours), Candy (7 colours)
Bearing options Steel or ceramic
Warranty 2 years
Certifications TÜV-approved, JASO-compliant, ISO-certified, CT-scanned
FitmentWhich bikes this fits
  • Yamaha YZF-R1/M RN32, RN49 & RN65 (2015–2026)
