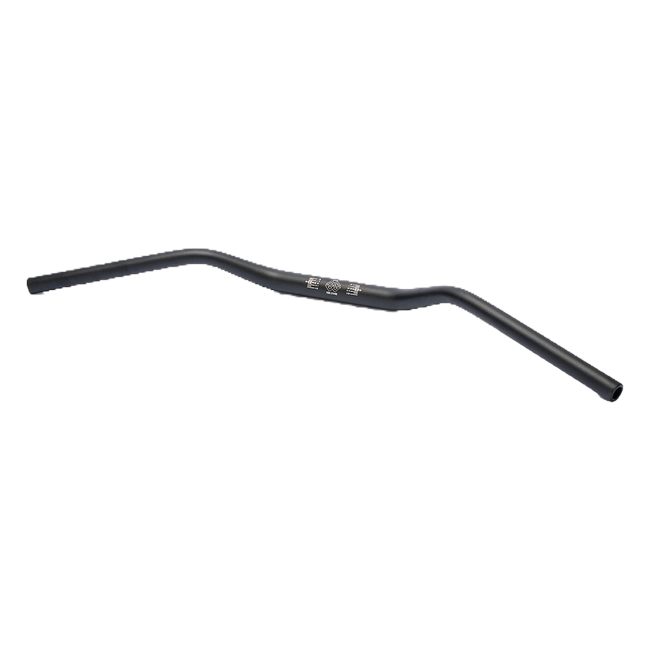

Gilles GTO-L black handlebar for BMW R12⟲ 360° — drag me
02 · Data & docs

The facts.

Technical data
BrandGilles Tooling
SeriesGTO-L
Part numberGTO-L-B (black), GTO-L-G (gold)
TypeTapered tubular handlebar
Material6082-T6 aluminium, anodised
Clamping diameter28.6 mm, tapered
Dimensions755 mm wide, 86 mm rise, 94 mm pullback at 24°
Clamping width140 mm
FitmentBMW R12 (2024–2026)
Road approvalApproval in preparation, not road legal yet
DescriptionThe whole story▼

The R 12 is BMW's boxer cruiser from 2024, low and relaxed, with its roots in the R nineT. Gilles lists the GTO-L tapered handlebar for it: a 755 mm wide, 28.6 mm aluminium bar with an 86 mm rise, in black or gold anodising.

Key Features

  • 14.2 mm inner tube diameter, relevant for bar-end weights
  • Tapered handlebar with a 28.6 mm clamping diameter
  • 755 mm wide, 86 mm rise, 94 mm pullback at 24 degrees
  • 140 mm clamping width in the centre section
  • Black or gold anodised finish, high rigidity
  • German approval in preparation, not yet road legal

A different stance

A cruiser is usually ridden with the feet forward and the arms reaching up. A wider, flatter bar changes that stance towards a roadster position, with more weight on the front and more leverage for bends. Try to picture the new position before you decide, because it changes the whole character of the bike.

Approval still to come

For the R 12 the German approval is in preparation; the current ABE does not yet list it. Please read the approval section and keep the bar for private ground until the extension is published.

Road Approval

Approval pending for the BMW R12. The current ABE No. KBA 91440 does not name this model, so we say it plainly: as things stand, the GTO-L is not road legal in Germany on this motorcycle without an individual acceptance. Please check this page again before fitting it.

Scope of Delivery

You receive a single GTO-L tapered bar in the colour you select. Grips, bar-end weights and controls are reused from the motorcycle and not included.

Specifications

  • Brand: Gilles Tooling
  • Series: GTO-L
  • Part number: GTO-L-B (black), GTO-L-G (gold)
  • Type: Tapered tubular handlebar
  • Material: 6082-T6 aluminium, anodised
  • Clamping diameter: 28.6 mm, tapered
  • Dimensions: 755 mm wide, 86 mm rise, 94 mm pullback at 24°
  • Clamping width: 140 mm
  • Fitment: BMW R12 (2024–2026)
  • Road approval: Approval in preparation, not road legal yet
What's includedEverything in the box▼
  • 1x Gilles GTO-L tapered handlebar (black or gold)
FitmentWhich bikes this fits▼
  • BMW R12 (2024–2026)
