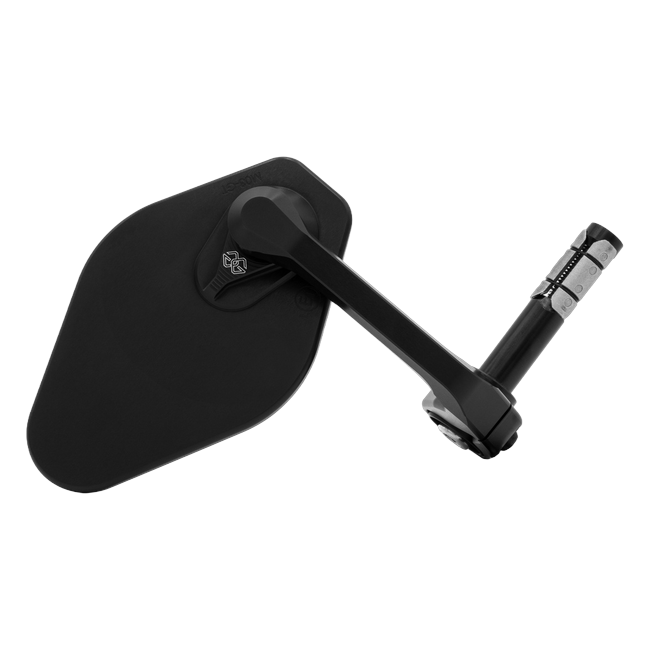

Gilles STRATOS bar-end mirror for Ducati MONSTER 1100⟲ 360° — drag me
02 · Data & docs

The facts.

Technical data
BrandGilles Tooling
SeriesSTRATOS
Part numberM03-01-BD
FunctionHandlebar-end rear-view mirror, replaces the original
MaterialCNC-machined aluminium, 190 g
GlassShaped, 132 x 84 mm, 6 mm
AdjustmentStepless, 20 degrees tilt and 180 degrees rotation
MountingExpanding clamp inside the handlebar, inner bore 13-18 mm
FitmentDucati MONSTER 1100 (2009–2015)
Road approvalEuropean type approval E1*81R00/02*0143 (UN R81)
DescriptionThe whole story▼

A Monster's handlebar is one of the few uncluttered things on a motorcycle otherwise full of visible structure. The trellis frame, the exposed engine and the single-sided swingarm all compete for attention, and the bar is the quiet part.

Key Features

  • CNC-machined aluminium, matt black, 190 g
  • Mounts in the end of the handlebar, not on a stalk
  • One piece — fits the left or the right side
  • Shaped glass, 132 x 84 mm, 6 mm thick
  • Stepless adjustment: 20 degrees of tilt, 180 degrees of rotation
  • European type approval E1*81R00/02*0143

Keeping the Bar Quiet

A mirror at the end of it adds nothing between the clamp and the grips, which leaves that line unbroken. Anything rising from the perch cuts across the view of the frame from the front three-quarter, which is the angle this motorcycle was drawn for.

Machined, 190 Grams

Aluminium cut from solid, matt black, with a shaped glass. Nothing polished, which is the right decision next to a frame that already has a colour.

Symmetrical

One piece, either bar end.

Road Approval

The applicable approval is E1*81R00/02*0143, granted under UN Regulation 81. It is a European type approval rather than a German ABE, and it is recognised across the EU without additional registration.

Scope of Delivery

One mirror, symmetrical. Fit it on whichever side you need and order a second if you want both.

Specifications

  • Brand: Gilles Tooling
  • Series: STRATOS
  • Part number: M03-01-BD
  • Function: Handlebar-end rear-view mirror, replaces the original
  • Material: CNC-machined aluminium, 190 g
  • Glass: Shaped, 132 x 84 mm, 6 mm
  • Adjustment: Stepless, 20 degrees tilt and 180 degrees rotation
  • Mounting: Expanding clamp inside the handlebar, inner bore 13-18 mm
  • Fitment: Ducati MONSTER 1100 (2009–2015)
  • Road approval: European type approval E1*81R00/02*0143 (UN R81)
What's includedEverything in the box▼
  • 1x Gilles STRATOS bar-end mirror with clamp, matt black
FitmentWhich bikes this fits▼
  • Ducati MONSTER 1100 (2009–2015)
