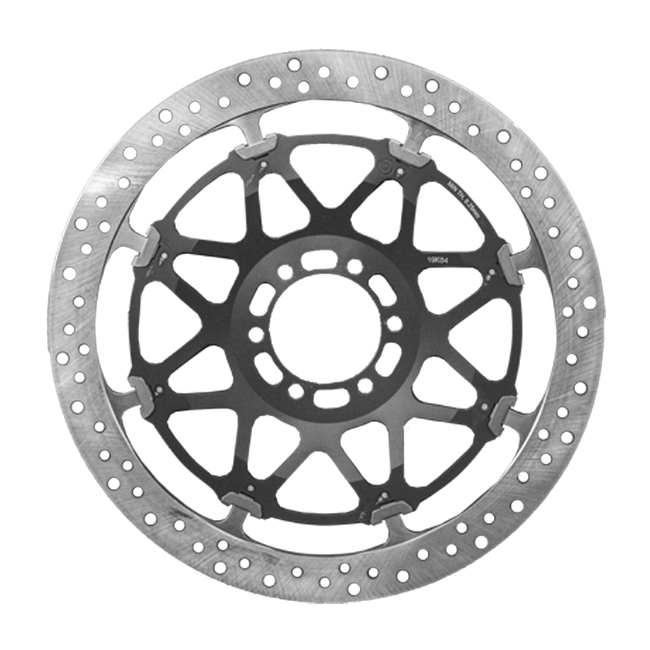

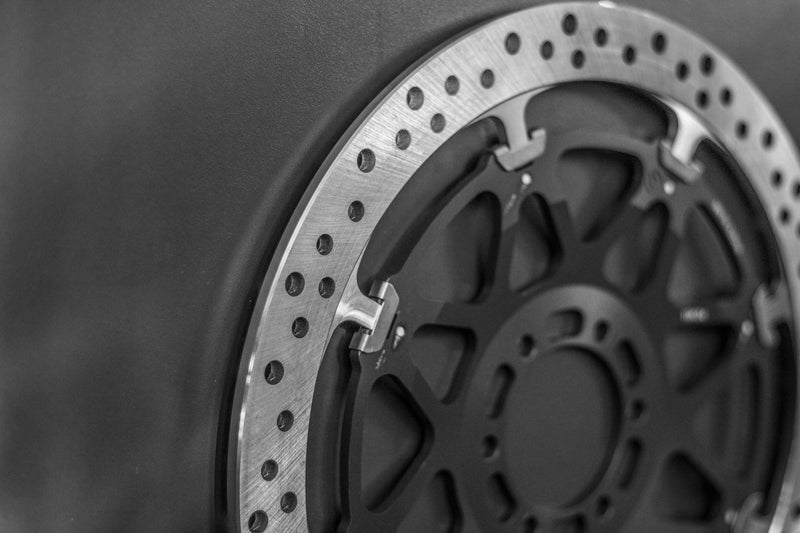

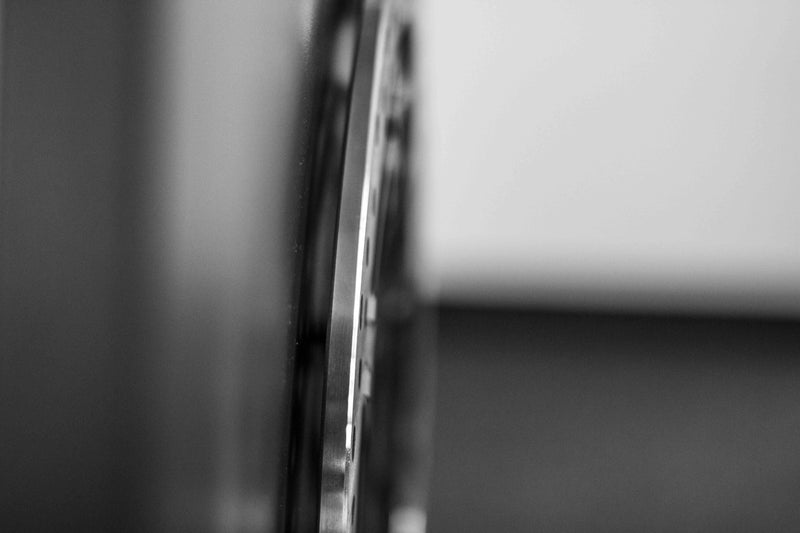

Brembo SBK T-Drive 6.75 Racing Brake Disc for Kawasaki ZX-10 R (2004–2020) – 08C86922

Born on the world stage of the Superbike World Championship and MotoGP, the Brembo SBK T-Drive 6.75 Racing brake disc (part number 08C86922) carries genuine motorsport heritage directly to your Kawasaki ZX-10 R. The T-Drive floating design and race-grade Inox material are lifted straight from championship-winning machinery, giving this disc a provenance that no road-derived component can match.

Key Features

• T-Drive floating mounting system with minimal tolerances ensures perfectly even, efficient transfer of braking force under repeated hard stops.
• Race-grade Inox steel — the identical material specification used in the Superbike World Championship, Supersport World Championship and MotoGP — delivers exceptional durability and consistent bite.
• 6.75 mm disc thickness and a 30 mm friction ring width provide the thermal mass needed to sustain peak braking performance across long track sessions or spirited road riding.
• 320 mm outer diameter with a precisely machined 100 mm bolt-circle diameter ensures a direct, precise fit on the ZX-10 R's front hub without modification.
• Optimised for use with Brembo Z04 brake pads and compatible with OEM calipers, Brembo M4 Monobloc calipers and other high-performance caliper assemblies.

Heritage, Design and Finish

The SBK T-Drive line represents the clearest expression of Brembo's racing identity in a street- and track-legal disc. The floating carrier and T-shaped drive lugs are a design signature that traces directly to the factory SBK effort, where controlling rotor movement under extreme thermal load is the difference between a podium and a DNF. On the ZX-10 R — a machine that has itself won more Superbike World Championship titles than any other — this disc is a philosophically fitting upgrade: a bike of that calibre deserves a brake disc developed on the same circuits it was born to dominate.

The Inox racing ring carries a consistent finish that ages with integrity, resisting the surface fatigue and uneven wear that can compromise lesser discs over a full season of hard use. Every dimension is held to race tolerances, so the disc runs true from the first lap and continues to do so long after a standard OEM unit would have been retired.

Performance on Road and Track

The T-Drive mounting geometry is the engineering heart of this disc. By allowing controlled radial float while locking the rotor to the carrier in the drive direction, it isolates thermal expansion from the braking load path. The practical result is that the disc can reach extreme operating temperatures — as it will under repeated heavy braking at the end of a long straight — without transmitting destructive stress into the caliper or wheel bearing. Feedback remains progressive and linear precisely when it matters most.

Paired with Brembo Z04 pads, the 6.75 mm Inox ring offers an initial bite and modulation character that experienced riders will immediately recognise as different in quality from a standard replacement disc. The combination is at home on a track day, a Superbike race weekend, or a demanding mountain road where genuine stopping power is required rather than merely adequate deceleration.

Fitment and Compatibility

This disc is designed and validated specifically for the Kawasaki ZX-10 R across all model years from 2004 to 2020. It is a direct replacement for the front brake disc position. Always verify torque settings and caliper compatibility before installation, and bed in new discs and pads together following Brembo's recommended procedure.

• Kawasaki ZX-10 R — 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020

Specifications

Scope of delivery: 1 x brake disc.
