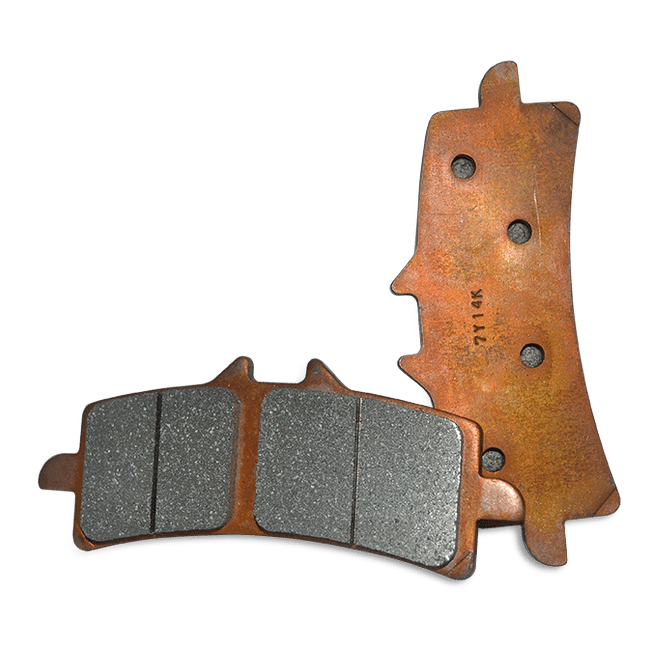

ZCOO B005 EX front brake pads for the Triumph TIGER 1200 GT, part Z-B005-EX
02 · Data & docs

The facts.

Technical data
Part numberZ-B005-EX (EAN 4950545767882)
Pad codeZRM-B005C
CompoundZCOO EX Race - ceramic-sintered
Pad dimensions102.2 x 42.0 x 8.05 mm (L x H x thickness)
Caliper familyBrembo
PositionFront axle only
FitmentTriumph TIGER 1200 GT, 2022-2023
Contents per pack1 set = 2 pads for one caliper; a machine with twin front discs needs two packs
Road approvalNo ECE R90 type approval documented - track and competition use
ManufacturerOkada Corporation, Japan
DescriptionThe whole story

Height and mass are what make an adventure bike like the Triumph TIGER 1200 GT demanding under braking. The B005 is ZCOO's shape for the Brembo caliper of the Triumph TIGER 1200 GT, 102.2 mm long and 8.05 mm thick. In the B005 the mixture is ceramic-sintered EX Race, mixed for a flat curve rather than a sharp first bite.

Key Features

  • Rotor-friendly by formulation: the TIGER 1200 GT discs see a ceramic film rather than an abrasive
  • Ceramic sintering keeps the coefficient of friction stable across the temperature swing a TIGER 1200 GT sees in a single descent
  • Suitable for trackday use on the TIGER 1200 GT without a change of pad before the session
  • Front axle only: ZCOO lists no rear pad under the B005 reference
  • Backed by the ZCOO 2026 catalogue listing for the Triumph TIGER 1200 GT, 2022 to 2023
  • The Brembo caliper spreads under peak pressure; the B005 plate is cut stiff enough to keep the friction face flat while it does

Construction and Material Quality

The B005 is a racing part in the way it is made, not only in the way it is sold. A Brembo caliper spreads under peak line pressure, and a plate that yields with it moves the contact patch onto the pad's edges. Both details exist so the B005 keeps its pressure distribution honest as it wears down.

Performance and Feel

Riders moving to EX Race from an OEM organic pad usually describe the TIGER 1200 GT's brake as becoming quieter rather than stronger. Across 2 model years of the TIGER 1200 GT the behaviour is the same, because the compound is. Loaded and a long way from home, that consistency is the whole point on a TIGER 1200 GT.

Fitment and Compatibility

For the TIGER 1200 GT of 2022 to 2023 the B005 is the shape ZCOO lists. Before ordering, check that your caliper takes a pad of 102.2 mm length and 42.0 mm height. The same B005 shape covers 117 further machines in the 2026 catalogue. The reference is a front pad; ZCOO lists no rear equivalent.

Road Approval

No ECE R90 type approval is documented for this pad. It appears neither in ZCOO's own catalogue nor on the European distributor's site, and no approval number is printed on the packaging data available to us. ZCOO itself describes the compound as suited to competition machines and road machines alike, but that is a description of the mixture, not a type approval. Until the distributor confirms an approval in writing, treat this as a track and competition part: in Germany a replacement brake pad without ECE R90 approval may not be fitted to a motorcycle used on public roads. Ask us before ordering if you need this clarified for your machine.

Specifications

  • Part number: Z-B005-EX (EAN 4950545767882)
  • Pad code: ZRM-B005C
  • Compound: ZCOO EX Race - ceramic-sintered
  • Pad dimensions: 102.2 x 42.0 x 8.05 mm (L x H x thickness)
  • Caliper family: Brembo
  • Position: Front axle only
  • Fitment: Triumph TIGER 1200 GT, 2022-2023
  • Contents per pack: 1 set = 2 pads for one caliper; a machine with twin front discs needs two packs
  • Road approval: No ECE R90 type approval documented - track and competition use
  • Manufacturer: Okada Corporation, Japan
What's includedEverything in the box
  • 1 set = 2 ZCOO B005 EX brake pads for one caliper
FitmentWhich bikes this fits
  • Triumph TIGER 1200 GT (2022–2023)
