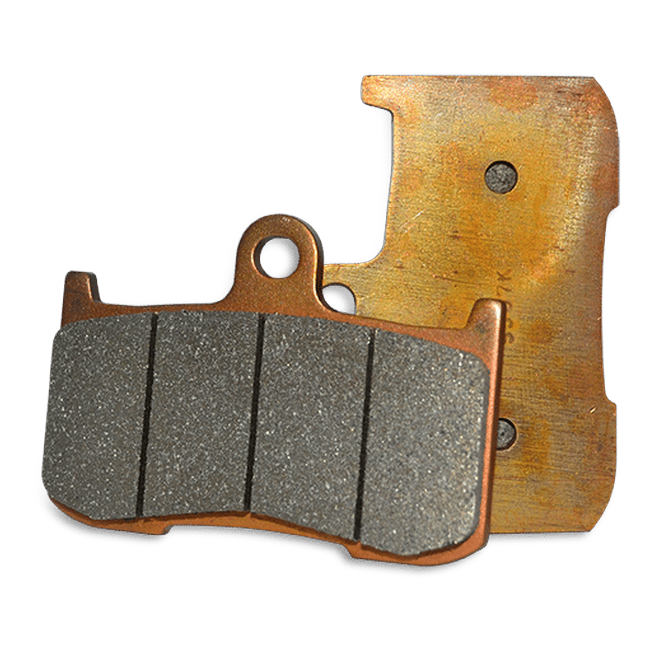

ZCOO N005 EX front brake pads for the Triumph STREET TRIPLE 675 R, part Z-N005-EX
02 · Data & docs

The facts.

Technical data
Part numberZ-N005-EX (EAN 4950545750082)
Pad codeZRM-N005C
CompoundZCOO EX Race - ceramic-sintered
Pad dimensions70.0 x 49.3 x 7.2 mm (L x H x thickness)
Caliper familyNissin
PositionFront axle only
FitmentTriumph STREET TRIPLE 675 R, 2013-2017
Contents per pack1 set = 2 pads for one caliper; a machine with twin front discs needs two packs
Road approvalNo ECE R90 type approval documented - track and competition use
ManufacturerOkada Corporation, Japan
DescriptionThe whole story

There is a moment on every naked bike where the rider asks for more brake than the chassis wants to give. The shape is the N005, the slimmest reference ZCOO makes, at 70.0 by 49.3 mm and 7.2 mm thick. In EX Race form it is the compound an STREET TRIPLE 675 R rider can use from the first cold stop of the day.

Key Features

  • Two pads per pack, matched as a set for one Nissin caliper
  • The N005 is one of 16 shapes ZCOO builds; this is the one your Nissin caliper takes
  • Ceramic sintering keeps the coefficient of friction stable across the temperature swing a STREET TRIPLE 675 R sees in a single descent
  • No bedding-in ritual: the N005 reaches its working friction level within the first few stops
  • Holds its friction level through the heat cycles an STREET TRIPLE 675 R front end goes through in a single hard ride
  • Direct replacement for the standard Nissin pad on the Triumph STREET TRIPLE 675 R - no shims, no spacers, no modification

Construction and Material Quality

The N005 is made by Okada Corporation in Japan. On the N005 the ceramic material is sintered onto a laser-cut metal plate rather than pressed against it. Together they remove the two things that normally end a sintered pad, and the N005 is built against both: fade at the top of the range, and the friction layer lifting away.

Performance and Feel

EX Race is the control-oriented of ZCOO's two ceramic compounds, and on the Triumph STREET TRIPLE 675 R that is the point. In exchange for a modest first bite the N005 gives the same bite on the tenth stop as on the first. Which matters most on an STREET TRIPLE 675 R, where the rider's own weight is part of the braking load.

Fitment and Compatibility

ZCOO catalogues the N005 for the STREET TRIPLE 675 R of 2013 to 2017. Front axle only; the N005 has no rear counterpart in the ZCOO programme. The same N005 shape covers 19 further machines in the 2026 catalogue. Before ordering, check that your caliper takes a pad of 70.0 mm length and 49.3 mm height.

Road Approval

No ECE R90 type approval is documented for this pad. It appears neither in ZCOO's own catalogue nor on the European distributor's site, and no approval number is printed on the packaging data available to us. ZCOO itself describes the compound as suited to competition machines and road machines alike, but that is a description of the mixture, not a type approval. Until the distributor confirms an approval in writing, treat this as a track and competition part: in Germany a replacement brake pad without ECE R90 approval may not be fitted to a motorcycle used on public roads. Ask us before ordering if you need this clarified for your machine.

Specifications

  • Part number: Z-N005-EX (EAN 4950545750082)
  • Pad code: ZRM-N005C
  • Compound: ZCOO EX Race - ceramic-sintered
  • Pad dimensions: 70.0 x 49.3 x 7.2 mm (L x H x thickness)
  • Caliper family: Nissin
  • Position: Front axle only
  • Fitment: Triumph STREET TRIPLE 675 R, 2013-2017
  • Contents per pack: 1 set = 2 pads for one caliper; a machine with twin front discs needs two packs
  • Road approval: No ECE R90 type approval documented - track and competition use
  • Manufacturer: Okada Corporation, Japan
What's includedEverything in the box
  • 1 set = 2 ZCOO N005 EX brake pads for one caliper
FitmentWhich bikes this fits
  • Triumph STREET TRIPLE 675 R (2013–2017)
