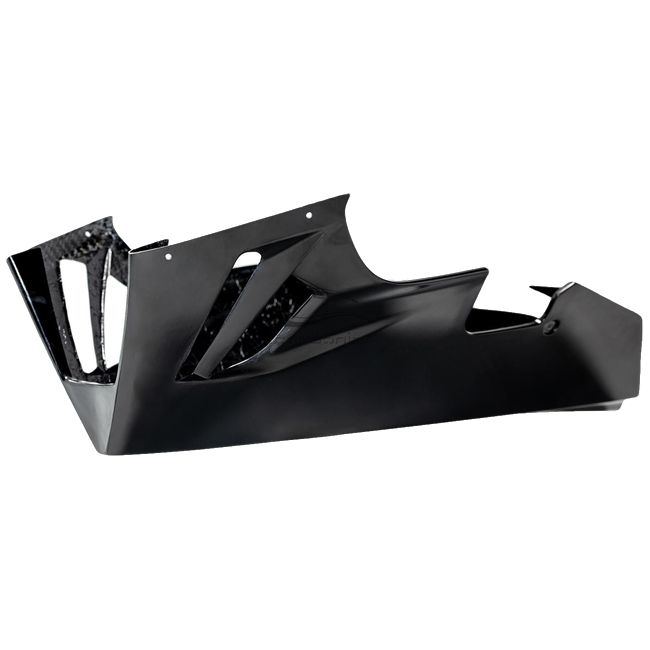

Carbonin Avio Fibre Prepreg Lower Race Fairing Honda CBR 600 RR (2024-2026) H25220AP
02 · Data & docs

The facts.

Technical data
BrandCarbonin
Part numberH25220AP
ComponentLower fairing (belly pan)
MaterialAvio Fibre Prepreg — glass fibre reinforced with carbon, autoclave cured
FinishGloss black, ready to paint
Held byIN2502H brackets (sold separately)
FitmentHonda CBR 600 RR PC69 (2024-2026)
Road approvalNone supplied — closed-course competition use
DescriptionThe whole story

H25220AP is the belly pan of Carbonin's PC69 race bodywork — the panel that has to hold the engine's oil if the bottom end lets go, because that is what circuit regulations require of it.

Key Features

  • Closed containment profile built to the oil-retention requirement of circuit regulations
  • Shaped around the 599 cc inline-four's sump and header run
  • Avio Fibre Prepreg, autoclave cured
  • Carried by the IN2502H bracket pair, ordered separately
  • Gloss black, unpainted

A 600 Fills Its Pan Differently

The rule is the same for every capacity class, but a supersport 600 is the awkward case. There is less room under a four-cylinder 600 than under a litre bike, the fairing sits closer to the collector, and the pan still has to enclose a defined volume without touching anything hot. That is why the pan is moulded around this engine rather than adapted from a larger one, and why the clearance to the headers is worth setting carefully during the build rather than trusting to the bracket's default position.

Off On Its Own

The pan hangs on its own brackets rather than being trapped behind the side panels, so an oil check does not start with taking the flanks off. Anyone running a full season should get into the habit of turning the pan over when it comes off: oil weeping down the inside is the first visible sign of a problem, and it is invisible while the panel is on the bike.

Fitment

For the Honda CBR 600 RR PC69, 2024 to 2026.

Road Approval

Supplied as a competition part, without approval documentation.

Specifications

  • Brand: Carbonin
  • Part number: H25220AP
  • Component: Lower fairing (belly pan)
  • Material: Avio Fibre Prepreg — glass fibre reinforced with carbon, autoclave cured
  • Finish: Gloss black, ready to paint
  • Held by: IN2502H brackets (sold separately)
  • Fitment: Honda CBR 600 RR PC69 (2024-2026)
  • Road approval: None supplied — closed-course competition use
FitmentWhich bikes this fits
  • Honda CBR 600 RR PC69 (2024–2026)
