⟲ 360° — drag meThe facts.
| Brand | Öhlins |
|---|---|
| Part Number | HD 763 |
| Fitment | Harley Davidson Dyna Super Glide Custom FXDC (2007–2015) |
| Road Approval | ABE (Germany) |
| Mounting Position | Hinten |
| Length | 305 +10/-0 mm |
| Stroke | 68 mm |
| Spring Rate | 33 N/ |
| Piston Diameter | 36 mm |
| Spring Part Number | 00281-73 or 66419-032 |
DescriptionThe whole story▼
Öhlins developed HD 763 around the Harley Davidson Dyna Super Glide Custom FXDC (2007–2015) — its weight, its linkage and its geometry. Standard rear dampers are built to a price; this one is built to a specification.
Key Features
- Spring part number 00281-73 or 66419-032 fitted
- Delivered with a 33 N/mm spring, selected for the Dyna Super Glide Custom FXDC
- 305 +10/-0 mm between mounting eyes
- Built for the Harley Davidson Dyna Super Glide Custom FXDC (2007–2015); fits without modification
- Gas-pressurised damper with a piggyback external reservoir
- Adjustable overall length for ride-height and geometry changes
- Adjustable rebound damping via the knob above the lower eyelet
- 68 mm of travel at the damper
How It Behaves on the Road
A 36 mm working face means lower oil speed for a given wheel speed, and lower oil speed means less foaming. Rate as supplied is 33 N/mm, matched by Öhlins to this machine rather than to the platform. Overall length is adjustable within 305 +10/-0 mm, enough to change rear ride height and with it how quickly the Dyna Super Glide Custom FXDC turns. Spring 00281-73 or 66419-032 is what ships with the damper; harder and softer rates are available. Adjustment is by click rather than by feel, so a setting can be written down and returned to. The adjuster range is usable end to end rather than only around the middle.

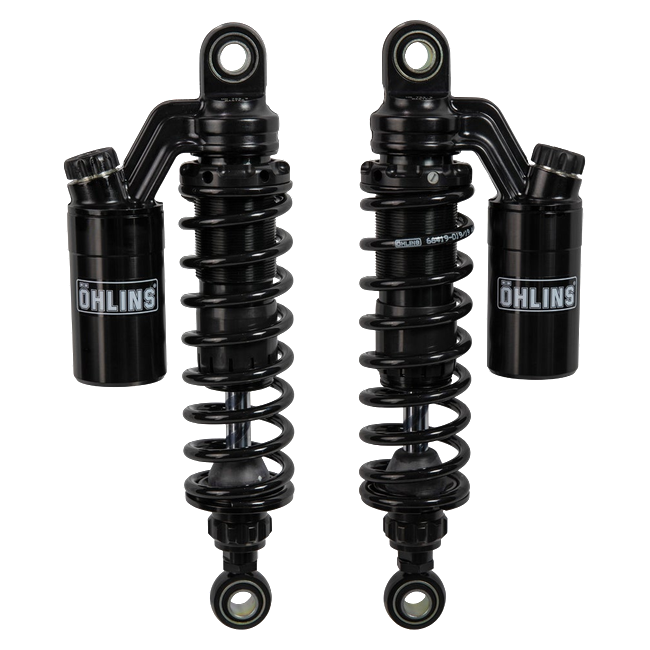

The STX 36 Blackline in Detail
Twin-shock applications are supplied as a matched pair. Servicing is identical to the standard STX 36. The finish suits classic and retro machines where chrome and black dominate.
Construction and Material Quality
Production has stayed in Sweden since the company was founded in 1976. Two units carrying the same part number behave the same way out of the box, which is the whole point of testing each one. Öhlins sets a baseline for each part number on the machine it was developed on, so it works before anything is adjusted.
Setting It Up for the Dyna Super Glide Custom FXDC
A cruiser is often ridden two-up with luggage, which is the load case the standard suspension rarely handles well. Öhlins covers the 9-year production run of this generation with a single part number, which means the mounting and the linkage stayed unchanged across it.
Fitment and Compatibility
Öhlins part number HD 763 is the correct number for the Harley Davidson Dyna Super Glide Custom FXDC as built 2007–2015. Öhlins lists no other machine against this number, so it is not a unit that can be adapted to a neighbouring model.
Road Approval
Road approval: a German ABE covers this part on the Harley Davidson Dyna Super Glide Custom FXDC. Fit it, keep the certificate with the vehicle papers, and nothing further is needed.
Specifications
- Brand: Öhlins
- Part Number: HD 763
- Fitment: Harley Davidson Dyna Super Glide Custom FXDC (2007–2015)
- Road Approval: ABE (Germany)
- Mounting Position: Hinten
- Length: 305 +10/-0 mm
- Stroke: 68 mm
- Spring Rate: 33 N/mm
- Piston Diameter: 36 mm
- Spring Part Number: 00281-73 or 66419-032
FitmentWhich bikes this fits▼
- Harley Davidson Dyna Super Glide Custom FXDC (2007–2015)
