The facts.
| Part Number | DU 466 |
|---|---|
| Position | Rear |
| Length | 312 mm (+4 / -8 mm) |
| Stroke | 65 mm |
| Spring Rate | 90 N/mm |
| Spring Reference | 01092-29 |
| Piston Diameter | 36 mm |
| Fitment | Ducati 1299 Panigale (2015–2018) |
DescriptionThe whole story▼

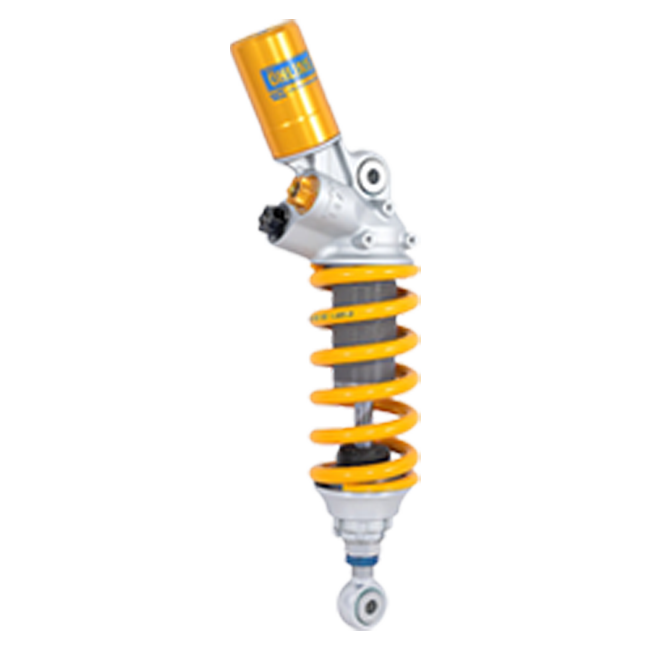

The Öhlins TTX GP DU 466 is a direct-replacement rear shock absorber developed specifically for the Ducati 1299 Panigale (2015–2018), delivering a measurable upgrade in ride quality and chassis confidence for both road riders and track enthusiasts. Its gas-pressure damping circuit and fixed external piggyback reservoir keep the damper temperature-stable and consistently responsive, whether you are navigating a twisty B-road or pressing through a series of fast corners on circuit.
Key Features
- Gas-pressure damper with fixed external piggyback reservoir for stable, fade-free damping across a wide range of riding conditions
- 36 mm piston diameter engineered to deliver high durability alongside progressive, precise damping force
- Independent high- and low-speed compression and rebound adjustment so you can dial in exactly the response you need without compromise
- Integrated hydraulic spring-preload adjuster makes ride-height and sag settings quick and repeatable — no special tools required for routine setup
- Designed as a direct bolt-in replacement for the Ducati 1299 Panigale, eliminating guesswork and reducing fitting time
- Installation manual included, with professional setup available at any authorised Öhlins Service Centre
Everyday Usability and Value
Unlike many performance shocks aimed exclusively at race use, the TTX GP DU 466 is fully street-legal and equally rewarding on a daily commute or a weekend tour. The hydraulic preload adjuster means you can accommodate a pillion or luggage in minutes rather than reaching for a C-spanner. The adjusters are clearly marked and easy to reach with the unit installed, so fine-tuning your suspension is a straightforward part of your pre-ride routine rather than a workshop job. Over the service life of the shock, Öhlins' global dealer network ensures spare parts and rebuild services are readily accessible — a long-term value proposition that generic alternatives rarely match.
Construction and Performance
Öhlins' TTX (Twin Tube X) technology separates the compression and rebound oil flows internally, allowing each circuit to be tuned independently without cross-talk. The result is a linear, predictable damping curve that communicates tyre contact and chassis attitude with unusual clarity. The piggyback reservoir maintains consistent oil volume and pressure during sustained hard use, preventing the heat-induced fade that affects conventional monotube designs. The spring reference 01092-29 at a rate of 90 N/mm is matched to the Panigale's weight distribution and travel requirements out of the box, though the wide adjustment range means riders outside the standard weight bracket can optimise settings without swapping the spring.
Fitment and Compatibility
The Öhlins TTX GP DU 466 is engineered exclusively for the following model:
- Ducati 1299 Panigale (2015, 2016, 2017, 2018)
Installation is straightforward for any competent mechanic familiar with rear suspension work. For best results and to preserve the Öhlins warranty, fitting at an authorised Öhlins Service Centre is recommended.
Fitting and Setup Service
We are an authorised Öhlins service centre, so the installation does not have to be your problem: we fit and set up Öhlins components in our own workshop. Ask us when you order and we will include the work.
Specifications
| Part Number | DU 466 |
|---|---|
| Position | Rear |
| Length | 312 mm (+4 / -8 mm) |
| Stroke | 65 mm |
| Spring Rate | 90 N/mm |
| Spring Reference | 01092-29 |
| Piston Diameter | 36 mm |
| Fitment | Ducati 1299 Panigale (2015–2018) |
FitmentWhich bikes this fits▼
- Ducati Panigale 1299 (2015–2018)
