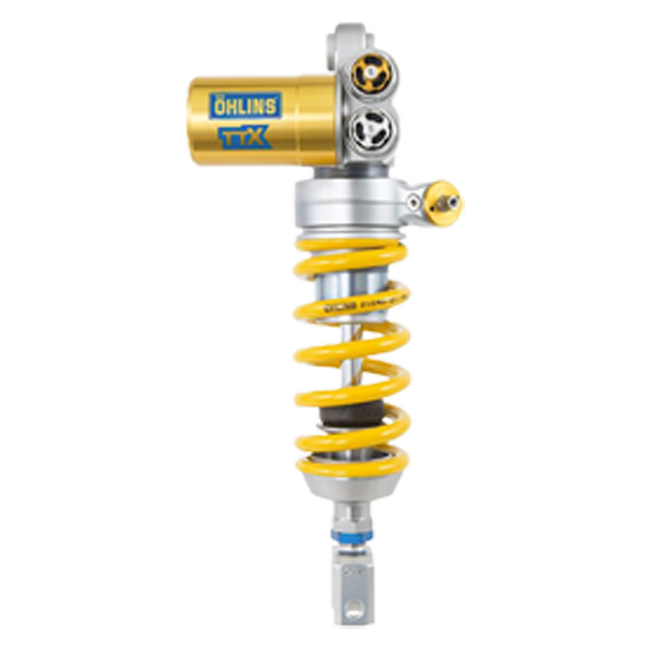

Öhlins TTX GP shock absorber BM 468 for BMW S1000RR K46 2015–2018 360° — drag me
02 · Data & docs

The facts.

Technical data
Part numberBM 468
Length353 mm (+6 / -0 mm)
Stroke62 mm
Spring rate85 N/mm
Piston diameter36 mm
Spring part number21040-26
PositionRear
FitmentBMW S1000RR K46 (2015–2018); BMW S1000RR HP4 (2013–2014) race use only
DescriptionThe whole story

Engineered from the ground up for the BMW S1000RR K46, the Öhlins TTX GP shock absorber BM 468 delivers race-derived suspension control with the all-day confidence that lets you push harder for longer. Whether you are threading through a demanding track day or logging serious road miles, the TTX GP's progressive damping character keeps the rear end planted and communicative without ever feeling harsh or fatiguing.

Key Features

  • Gas-pressure damper with a fixed external reservoir for consistent, fade-free performance across extended sessions
  • Full adjustment of both rebound and compression damping so you can dial the rear end to suit your riding style, circuit surface or road conditions
  • Integrated hydraulic spring preload adjuster for quick, precise load changes — no spanners required
  • 36 mm piston diameter for exceptional durability and a broad, usable damping range
  • 62 mm stroke and a 353 mm length (+6 / -0 mm) engineered to match the S1000RR K46 geometry exactly
  • Spring rate of 85 N/mm chosen to complement the chassis balance of the 2015–2018 S1000RR

Built for the Long Haul

Öhlins' TTX (Twin Tube Cross) technology separates compression and rebound circuits into dedicated flow paths, keeping oil temperature stable and damping forces consistent lap after lap. The fixed external reservoir increases oil volume without lengthening the main body, preserving the stock mounting geometry while significantly raising the thermal ceiling. The result is a shock that feels as composed on lap twenty as it did on lap one — a genuine advantage when fatigue sets in and precise suspension feedback matters most.

Fitment and Compatibility

  • BMW S1000RR K46 (2015–2018) — road-legal fitment with ABE approval (Germany)
  • BMW S1000RR HP4 (2013–2014) — no type approval; for race use only (Germany)

A fitment guide is included in the package. For optimal results Öhlins recommends installation by an authorised Öhlins Service Centre.

Fitting and Setup Service

Öhlins suspension rewards careful fitting. We recommend having the work done by an authorised Öhlins service centre — and we are one ourselves: we fit, service and set up Öhlins components in house. If you would like us to handle the installation, just ask and we will quote it with the order.

Specifications

Specification Detail
Part number BM 468
Length 353 mm (+6 / -0 mm)
Stroke 62 mm
Spring rate 85 N/mm
Piston diameter 36 mm
Spring part number 21040-26
Position Rear
Fitment BMW S1000RR K46 (2015–2018)
FitmentWhich bikes this fits
  • BMW S1000RR K46 (2015–2018)
