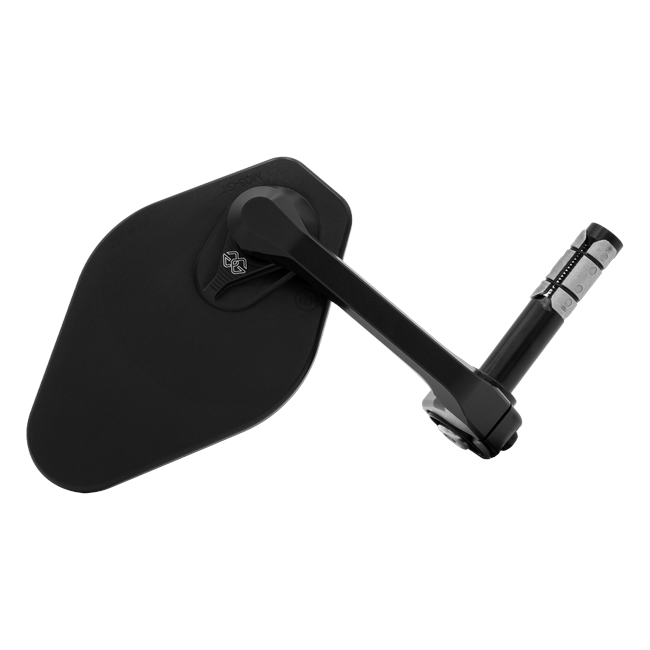

Gilles STRATOS bar-end mirror for Suzuki DL1000 V-STROM⟲ 360° — drag me
02 · Data & docs

The facts.

Technical data
BrandGilles Tooling
SeriesSTRATOS
Part numberM03-01-BD
FunctionHandlebar-end rear-view mirror, replaces the original
MaterialCNC-machined aluminium, 190 g
GlassShaped, 132 x 84 mm, 6 mm
AdjustmentStepless, 20 degrees tilt and 180 degrees rotation
MountingExpanding clamp inside the handlebar, inner bore 13-18 mm
FitmentSuzuki DL1000 V-STROM (2014–2022)
Road approvalEuropean type approval E1*81R00/02*0143 (UN R81)
DescriptionThe whole story▼

On a loaded tourer the widest point of the motorcycle is usually the panniers. Fit bar-end mirrors and that changes: the front of the bike becomes the widest part of it, and the measurement you carry in your head has to move.

Key Features

  • CNC-machined aluminium, matt black, 190 g
  • Mounts in the end of the handlebar, not on a stalk
  • One piece — fits the left or the right side
  • Shaped glass, 132 x 84 mm, 6 mm thick
  • Stepless adjustment: 20 degrees of tilt, 180 degrees of rotation
  • European type approval E1*81R00/02*0143

The Widest Point Moves Forward

It is a genuine adjustment for anybody used to judging gaps by the luggage. The good news is that the front is the part you can see, and a gap the mirrors clear is a gap the panniers clear.

And the View Improves With It

Everything outboard is also everything further from the rider's body, which is why the width buys a wider view of the lane rather than just a wider motorcycle.

One Item for Both Ends

Symmetrical, so a pair is two of the same part.

Road Approval

Approved for road use in Europe under E1*81R00/02*0143, issued against UN Regulation 81 for rear-view mirrors. Nothing needs entering in the vehicle documents.

Scope of Delivery

Delivered as a single mirror with its clamp. The same item fits both bar ends, so nothing has to be specified beyond how many you want.

Specifications

  • Brand: Gilles Tooling
  • Series: STRATOS
  • Part number: M03-01-BD
  • Function: Handlebar-end rear-view mirror, replaces the original
  • Material: CNC-machined aluminium, 190 g
  • Glass: Shaped, 132 x 84 mm, 6 mm
  • Adjustment: Stepless, 20 degrees tilt and 180 degrees rotation
  • Mounting: Expanding clamp inside the handlebar, inner bore 13-18 mm
  • Fitment: Suzuki DL1000 V-STROM (2014–2022)
  • Road approval: European type approval E1*81R00/02*0143 (UN R81)
What's includedEverything in the box▼
  • 1x Gilles STRATOS bar-end mirror with clamp, matt black
FitmentWhich bikes this fits▼
  • Suzuki DL1000 V-STROM (2014–2022)
