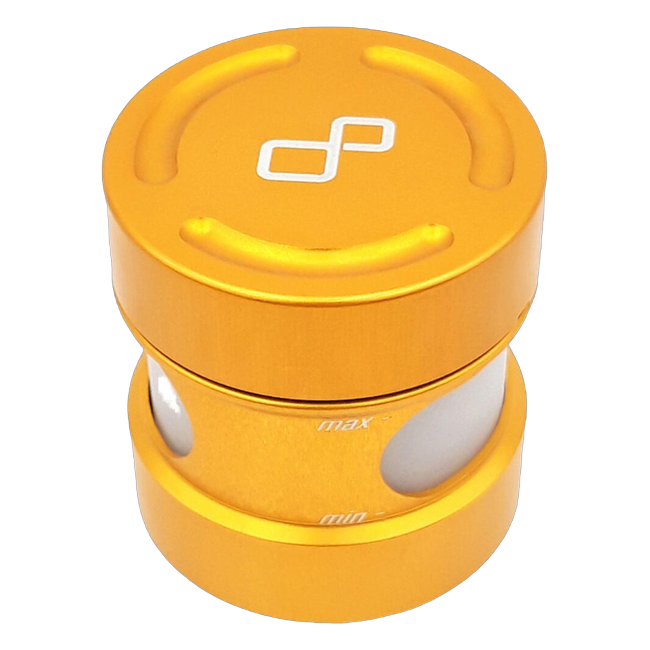

LighTech OBT001 fluid reservoir in gold for Suzuki SV650 – product view
106 g
02 · Data & docs

The facts.

Technical data
BrandLighTech
Part numberOBT001
TypeBrake/clutch fluid reservoir
Capacity31 cm³
ShellBillet aluminium, anodised
LinerTranslucent plastic
SealRubber gasket under the cap
BracketNot included — OBT003 / OBT008 / OBT009
Colours2 — Gold, Green
Weight106 g
DescriptionThe whole story▼

On an SV650 the reservoir sits in plain sight at the bar, unstyled. The OBT001 is machined from solid, laser-engraved with the LighTech logo, and holds 31 cm³. The shell comes in 2 anodised colours. It changes the part of the SV650 the rider looks at most.

Key Features

  • Translucent plastic liner, so the fluid level on the SV650 stays readable
  • The mounting bracket is a separate LighTech item — see the note below
  • 2 colours, all at the same price
  • Visible fluid level without removing anything from the SV650
  • Made in Italy
  • Fitting the OBT001 to the SV650 needs hand tools only

Why Replace the Reservoir

Brake fluid absorbs water, which is why the level and the colour are worth seeing. Billet outside for strength and finish, plastic inside for visibility — that is the whole idea of the OBT001. LighTech builds one reservoir for many machines rather than one per model.

Installation

Installation on the SV650 needs no special service tool. Use fresh fluid of the grade the SV650 specifies, not what is left in the bottle. Re-check the fasteners after the first ride.

Compatibility

Fitment is the SV650 across 2016 to 2026. It is a universal article in LighTech's own description; the SV650 is the application, not the design brief.

Scope of Delivery

LighTech ships the OBT001 complete except for the mount. Packaging carries the reference, so a second order is unambiguous.

Maintenance

Fluid darkens as it absorbs water — on the SV650 that is now visible without tools. The OBT001 needs no maintenance of its own beyond that.

What You Also Need

The OBT001 is supplied without a bracket. LighTech offers a front bracket (OBT008) and a rear one (OBT009), plus the OBT003 support, and all three are black only. We can advise which of the three suits your SV650 — it takes one question.

Approval and Safety

Replacing a reservoir touches the brake system of the SV650, not just its appearance. Nothing in the OBT001 box constitutes a type approval. If the SV650 is used on public roads, treat this as a brake-system modification: inspection body first, workshop check after.

Specifications

  • Brand: LighTech
  • Part number: OBT001
  • Type: Brake/clutch fluid reservoir
  • Capacity: 31 cm³
  • Shell: Billet aluminium, anodised
  • Liner: Translucent plastic
  • Seal: Rubber gasket under the cap
  • Bracket: Not included — OBT003 / OBT008 / OBT009
  • Colours: 2 — Gold, Green
  • Weight: 106 g
FitmentWhich bikes this fits▼
  • Suzuki SV650 (2015 to 2026)
