Gilles GTO-L black handlebar for Suzuki GSX-8S⟲ 360° — drag me
02 · Data & docs

The facts.

Technical data
BrandGilles Tooling
SeriesGTO-L
Part numberGTO-L-B (black), GTO-L-G (gold)
TypeTapered tubular handlebar
Material6082-T6 aluminium, anodised
Clamping diameter28.6 mm, tapered
Dimensions755 mm wide, 86 mm rise, 94 mm pullback at 24°
Clamping width140 mm
FitmentSuzuki GSX-8S (2023–2026)
Road approvalABE No. KBA 91440
DescriptionThe whole story▼

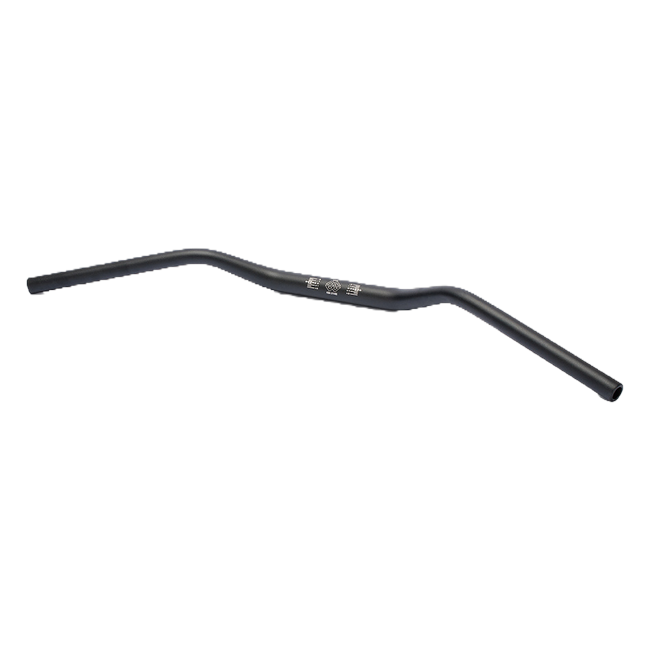

The GSX-8S is Suzuki's parallel-twin naked bike from 2023, with a 270-degree crank and a lively character. The GTO-L tapered handlebar for the Suzuki GSX-8S from 2023 is a 755 mm wide aluminium bar with an 86 mm rise, in black or gold anodised finish.

Key Features

  • Alignment marks and the approval mark engraved in the centre
  • 14.2 mm inner tube diameter, relevant for bar-end weights
  • Tapered handlebar with a 28.6 mm clamping diameter
  • 755 mm wide, 86 mm rise, 94 mm pullback at 24 degrees
  • Black or gold anodised finish, high rigidity
  • Road legal in Germany under ABE No. KBA 91440

A lively twin

The GSX-8S is agile and eager, and many riders use it for spirited rides on country roads. A wide, stiff bar gives you precise control and makes it easier to hold a line when you accelerate out of a corner.

Approval already in place

The ABE lists the GSX-8S types WEM2 and WEM3 for the GTO-L. Gilles' price list shows the approval as in preparation, but the certificate itself already includes the bike, so we follow the certificate.

Road Approval

ABE No. KBA 91440 lists the Suzuki GSX-8S for the GTO-L handlebar, with no further riser condition in the application list. The ABE waives the acceptance inspection, so no examiner and no entry are needed. Keep a printed copy of the certificate, which downloads from this page, with the papers.

Scope of Delivery

The package holds the GTO-L handlebar in the colour you select, nothing more. Your grips, bar ends and switch units carry over from the original bar.

Specifications

  • Brand: Gilles Tooling
  • Series: GTO-L
  • Part number: GTO-L-B (black), GTO-L-G (gold)
  • Type: Tapered tubular handlebar
  • Material: 6082-T6 aluminium, anodised
  • Clamping diameter: 28.6 mm, tapered
  • Dimensions: 755 mm wide, 86 mm rise, 94 mm pullback at 24°
  • Clamping width: 140 mm
  • Fitment: Suzuki GSX-8S (2023–2026)
  • Road approval: ABE No. KBA 91440
What's includedEverything in the box▼
  • 1x Gilles GTO-L tapered handlebar (black or gold)
DownloadsCertificate▼
ABE certificatePDF

Carry a printed copy of the ABE certificate when riding on German roads.

FitmentWhich bikes this fits▼
  • Suzuki GSX-8S (2023–2026)
