The facts.
| Brand | K-Tech |
|---|---|
| Part Number | 155-012-070-020 |
| Fitment | Ducati Panigale 1199 S / 1199 R (2012–2017) |
| System | DDS (Direct Damping System) closed cartridge |
| Piston Diameter | 20.00 mm |
| Stroke | 125.00 mm |
| Compression Adjustment | 30 clicks, independent |
| Rebound Adjustment | 30 clicks, independent |
| Spring Series Included | 36-260 (three pairs) |
DescriptionThe whole story▼

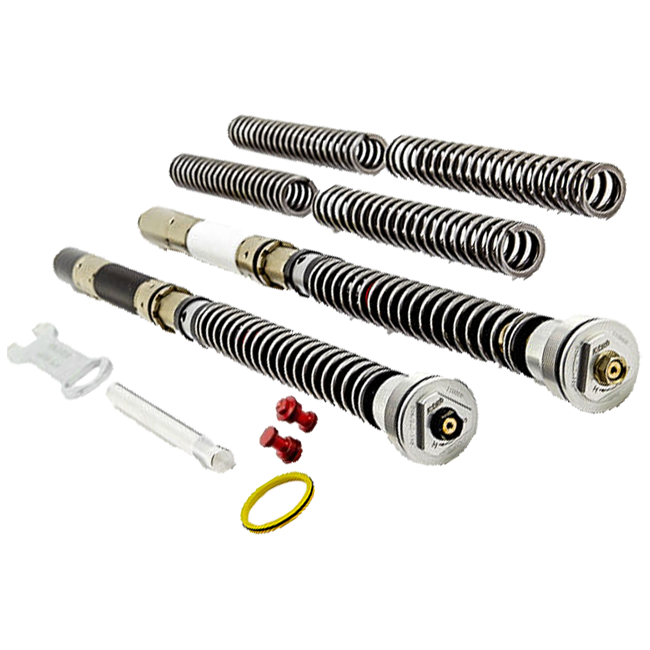

Born from the pitlane of the British Superbike Championship and proven on the roads of the Isle of Man TT, the K-Tech DDS Closed Cartridge Kit transforms the stock forks of the Ducati Panigale 1199 S and R into a precision-engineered damping system worthy of the machine's racing heritage. Every dimension, every click of adjustment, every material choice reflects K-Tech's obsession with chassis dynamics at the limit.
Key Features
- Direct Damping System (DDS) with a 20 mm piston delivers high oil flow and exacting damping control, eliminating cavitation under sustained hard braking and high-frequency inputs
- 30 independent compression clicks and 30 independent rebound clicks give the rider and engineer granular, repeatable setup options across changing track or road conditions
- Increased stroke versus the original cartridge — 125 mm — provides greater wheel travel and improved compliance over kerbs and surface changes
- 36-260 series springs included (three pairs), allowing precise spring-rate selection to suit rider weight and riding style straight from the box
- Recommended baseline settings — 16 compression clicks, 18 rebound clicks, 10 mm preload, 185 mm oil/air gap — minimise set-up time at the circuit
- Designed as a direct fit for the original Panigale 1199 S/R fork, retaining the factory architecture while delivering race-level performance
Design, Finish and Heritage
K-Tech's closed cartridge philosophy is rooted in decades of supplying front-running teams in British Superbike, World Superbike and the Isle of Man TT. The DDS cartridge architecture was developed specifically to overcome the limitations of open-cartridge systems — namely oil aeration and inconsistent damping force under repeated high-speed compression cycles. The 20 mm piston bore maintains a high, stable oil-flow rate throughout the full 125 mm stroke, while the sealed cartridge body protects the damping circuit from air ingress regardless of fork angle or g-load. The result is a damping curve that remains consistent on lap one and lap twenty alike, which is precisely why professional Superbike teams trust K-Tech hardware at circuits that demand nothing less.
On Track and On Road
Fitted to the Panigale 1199 S or R, this kit sharpens the front-end feel that Ducati's supersport chassis demands. The independent compression and rebound adjusters allow a wide spread of character — from a planted, low-speed-compression-biased road setup to a stiff, fast-rebound race configuration — without compromise in either direction. The increased stroke relative to the OEM cartridge means the fork can absorb more energy before topping or bottoming, maintaining consistent geometry and steering geometry under the sort of braking forces the 1199 generates. Whether the goal is a faster lap time or simply a more confidence-inspiring road ride, the DDS kit delivers measurable, repeatable improvement.
Fitment and Compatibility
This kit is designed exclusively for the Ducati Panigale 1199 S and 1199 R, model years 2012 to 2017. It is not compatible with the standard (non-S, non-R) 1199 variant. Installation by an authorised K-Tech Service Centre is strongly recommended to ensure correct setup and to preserve the performance characteristics of the system.
Specifications
- Spring series: 36-260
- Piston inner diameter: 20.00 mm
- Outer diameter: 8.00 mm
- Length: 716 mm
- Stroke: 125.00 mm
- Oil/air gap (recommended): 185 mm
- Compression clicks (recommended): 16
- Rebound clicks (recommended): 18
- Preload (recommended): 10 mm
- Compression adjustment range: 30 clicks (independent)
- Rebound adjustment range: 30 clicks (independent)
- Part number: 155-012-070-020
FitmentWhich bikes this fits▼
- Ducati Panigale 1199 S/R (2012–2017)
